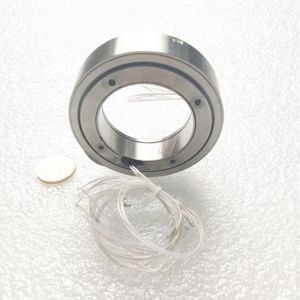

miniature large hole 4 wires 1A through bore electrical slip ring

China Slip Ring Manufacturer

Slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, collector or electric swivel, a slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and / or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

Product advantage:

• Durable quality, solid structure, compact size, our size can be smaller than other slip ring suppliers
• Good electrical performance,  normal signal transmission speed below 20MHz, can be customized to 100MHz
• Electronic campatibility, signal transfer stability, packet loss rate less than 5%
• Low Torque and friction
• The dynamic contact resistance change value can be less than 5 milliohms
• Long lofespan, normally working life is 100 ~ 200 million revolution, working life can be make longer per customer request
• Real material, thickening silver alloy coating

More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems.

More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

10 million revolutions or 12 monthes of quality assurance, so that you have no worries to cooperate with us!

Applications:

Non-standard customization options:

1. Customizable outlet mode and length of rotor and stator

2. Due to structural constraints, it can be customized according to specified length or height or outer diameter.

3. Supports up to 200 power currents or signals.

4. Optional Aviation Plug, Terminal and Heat-shrinkable Tube

5. Mixed high-speed data transmission (including Ethernet, USB, RS232, RS485, Profibus, Canbus, CANOPEN, DeviceNET, CC-LINK, ProfiNET, EtherNET and other industrial buses)

6. Temperature control signal, thermocouple signal mixing

7. Customization of special environment such as quakeproof and high temperature

8. High temperature customization up to 500 degrees

9. High voltage can be customized to 110 kV

Customizable parameters:

Route number, aperture, size, current, protection level, sliding ring speed

Combination transmission of video, USB, HDMI, optical fiber, radio frequency, Ethernet signal

Combination transfer gases and liquids

FAQ:

Q1: What technical data should be provided for our customized slip ring model.

A: If you want to customize the special slip ring model, you need provide details as below:

1.operatring speed(RPM)

2.the type of installation

3.outline size

4.ways of electric

5.rated voltage & current for power rings and signal rings

6.if need combine signal/gas/liquid, and related parameters(very important)

7.operating temperature and IP(sealing requirements)

Q2: How long is your production lead time?

A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,

15 to 40 days for complex customized products.

Q3: What's your delivery port?

A: Our delivery port is Jiujiang, China Mainland

Q4: How do you delivery our goods?

A: Usually small orders can be delivered by air, big orders can be delivered by sea. It can be negotiated before delivering.
