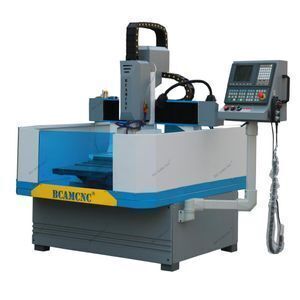

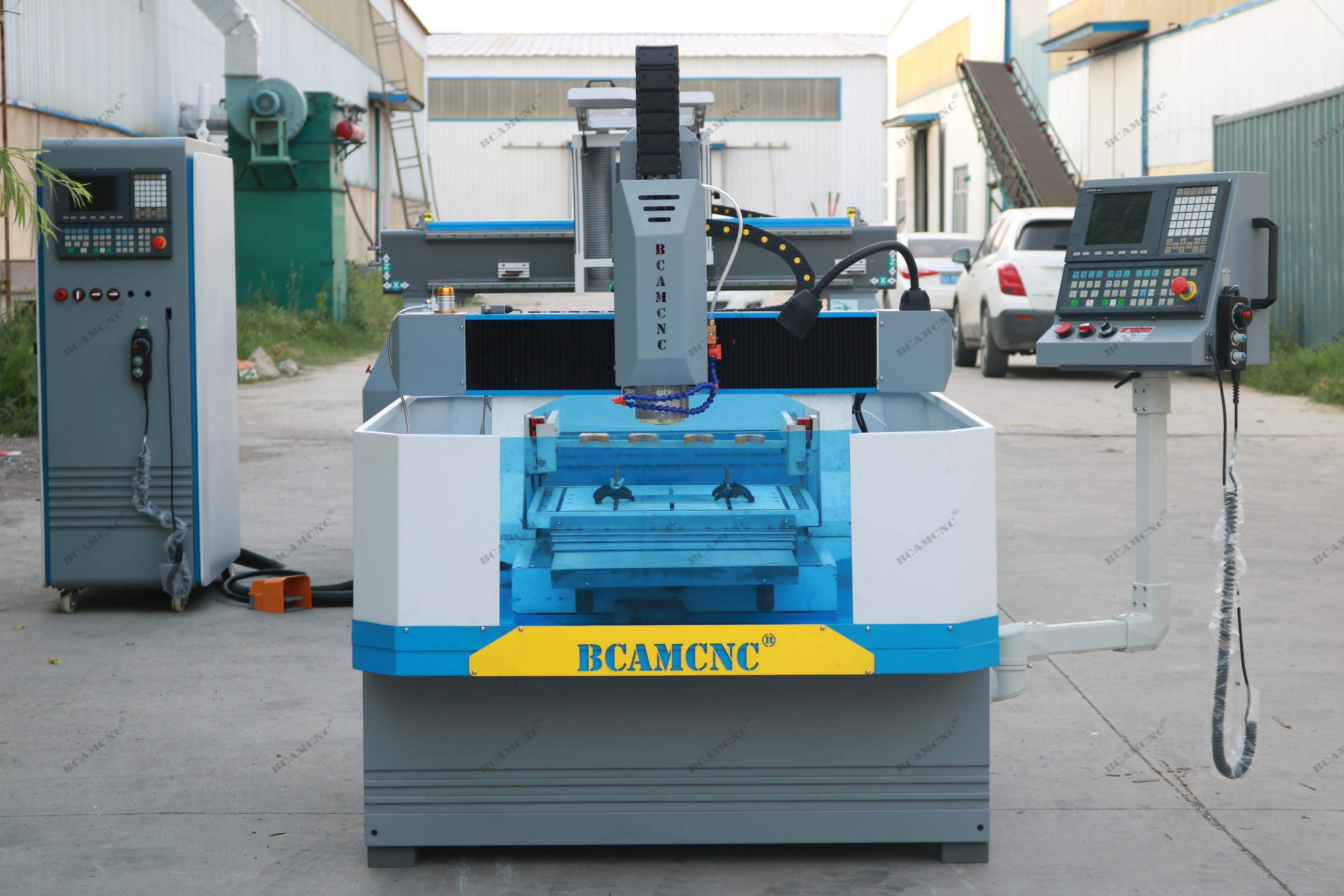

Desktop cnc router machine for engraving /cutting metal mini type 3D engraving

Supplier: Jinan Bcamcnc Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Christina Wang
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Month desktop cnc metal engraving machine;	Milling Cutter Diameter:	3.175-12.7mm;
Application:	metallic materials;	Packaging Detail:	Inner package:stretch film. Outside package: standard plywood case;
Design software:	Artcam/Ucancam/Type 3;	X Y Z guide rail:	HIWIN linear square guide rail;
Feeding Height:	170mm;	X Y Z working size:	600600200mm;
After-sales Service Provided:	No after-sales service;	Place of Origin:	Shandong China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Brand Name:	BCAMCNC;
Spindle speed:	24000rpm;	Dimensions:	600*600MM;
Rated Power:	3.2KW;	Name:	desktop cnc metal engraving machine;
Condition:	New;	Engraving Speed:	10m/min;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Spindle power:	3.2kw;
Applicable Industries:	Building Material Shops,Food & Beverage Factory,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Warranty:	3 years;
Port:	qingdaqo guangzhou shanghai;	Movement style:	Gantry fixed, table move;
Machine body:	Whole cast iron;	Weight:	1000KG;
Main Axle Rotational Speed:	24000rpm;	Certification:	CE ISO;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	X Y Z transmission:	High precision ball screw;

Product Description

Technical Parameters

Parameters	Standard Specifications BCM1325S
X,Y,Z Working Area	13002500200mm\|4′*8′
Optional Working Area	13001300200mm\|4′*4′
Optional Working Area	15003000200mm\|5′*10′
Optional Working Area	20003000200mm\|6′*10′
Optional Working Area	20004000200mm\|6′*13′
Optional Working Area	20006000200mm\|6′*20′
Spindle Power	3.0kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.03/2000mm
Table Surface	Vacuum table+T-solt table
X,Y,Z Rail and Trasmission	X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate	50m/min
Max. Working Speed	30m/min
Cutting thickness	According materials
Spindle Speed	6000-24000RPM
Drive Motors	4 sets High Torque stepper motor and drivers
Working Voltage	AC220v0r380v/50HZ/3 phase,220v/1phase/50hz
Command Language	G Code
Operating System	Richauto A11 DSP control system
Interface	USB
Software Compatibility	Option:BCAMPRO/VCarve/VCarvePro/UcanCAM/ArtCAM,etc.
Running Environment	Temperature: -20℃~45℃ Relative Humidity: 5%~75%

Machine configuration

Working area: 1300*2500*200mm|4′*8′
CE standard
5.5kw water cooling spindle(Option: 5.5kw,6.0kw ,7.5kw Quick-Release Spindle)
Delta Inverter
3.0kw double dust collector +Dust collector pipe+Dust collector support
Rich auto A11 control system
Vacuum table + T-solt table + 5.5kw water pump
8mm Heavy duty frame
Active safety system
X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
Taiwan Hiwin 25 rails
Schneider Electronic spare parts
Automatic lubrication system
Japan Omron limit switch
High torque stepper motor and drivers
Tool height sensor
Standard box of tools

More Machine Details

1. Machine structure

Whole machine table adopts high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.The whole machine made by CNC gantry machining center to ensure the structure basic precision. After strict quality control, the structure treated with deoil and pain process. After various process of painting, the construction can be used for assembly.

2. Changsheng Water-cooling spindle

Affordable, low noise, good water cooling, suitable for hard wood, stone, soft metal high temperature operation.

3. RichAuto A11 DSP control system

The handle operation does not require a computer connection, especially for beginners.

4.TBI imported ball screw

TBI imported ball screw has reached level C grinding. It is durable, with low friction coefficient, low noise. With high positioning accuracy, flexibility, stability and other advantages. With heat treatment, so it is with advantages of antioxidant, anti-corrosion, with thousands of hundreds of test, the lifetime is up to 10 years.

Optional

Airtech pro dust collector: our new deaign to vacuum, and it is very clean to absorb wood dust.
Vacuum pump: Oil free pump 5.5Kw/Air pump 5.5Kw
CAM Software: VCarve/VCarve Pro/ArtCAM/UcanCAM,etc.
CW3000 water chiller: dedicated to water-cooled spindles

Advantages:

1.Whole cast iron structure, the body will not transform for long use.

2. X Y Z use 25mm HIWIN linear square guide rail, it is more stable than the normal round one.

3.X Y Z transmission use high precision ball screw, avoid the spindle suddenly up and down.

4.Gantry fixed,table move design make the machine more precise.

5. Imported control system,higher precision, easier and more convenient to operate.

6. ESTUN servo motor and driver, break-point memory makes sure accidental workng and avoid the waste of materials.

7.X axis has steel cover,keep the machine clean and long life.

More details:

Applied material:

Iron,aluminum,copper electrode and graphite,stainless steel,etc.

Ideal for

-advertising industry

-mold industry

-printing industry

-decoration industry

-clock and watch industry,etc.

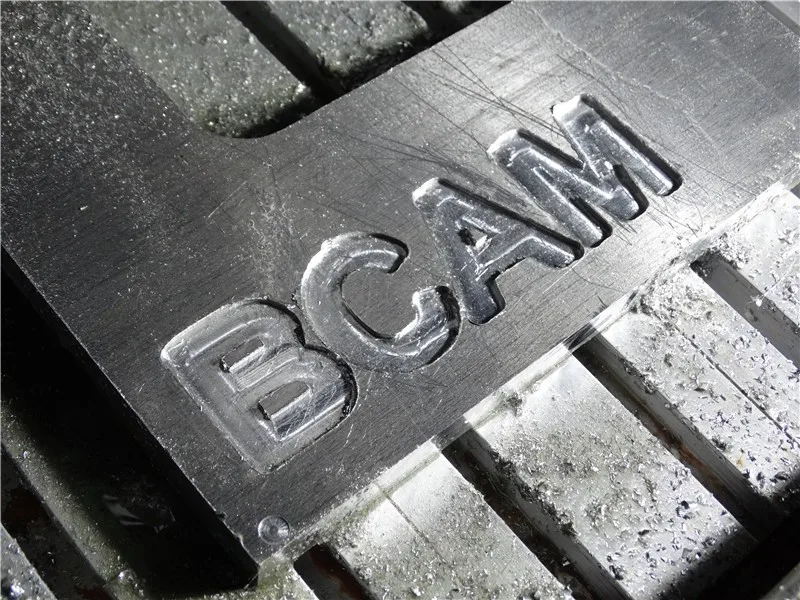

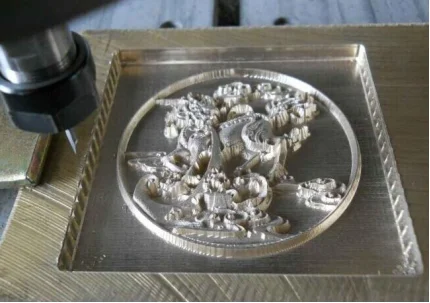

Cutting sample:

Company Information

BCMANC Information

BCAM was located in Jinan,shandong province,covers the area of 6000 square meters. BCAM group is manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years. Now we have mature production workers more than 50 people, 8 sales teams,2 product research and development teams,2 after-sales service teams.Products exported to Europe,America,Australia,Africa,Asia. We set up an overseas warehouse in Dubai in 2017, and we have exclusive agents in Europe, France, Germany, UK, Poland and many other countries.

FAQ

Q1. Delivery time of CNC router machine?
Aplus and S series standard size and configuration CNC router machine delivery time is 5 days, C,D,E series machine delivery time is 7 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.

Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.

Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.

Q4. Can you please tell me if it’s possible to make a 1325C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V current will become bigger.

Packaging & Shipping

Packaging & Shipping:

1.Standard plywood case, its compressive strength and bearing quality is better.

2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3.When importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 20days after received your payment

The advantages of Plywood Case Package:
--Firstly,plywood case,its compressive strength and bearing quality is better,it is the market of choice for the goods of high-weight packaging

--Secondly,the board area is big,the soil structure is good,and operational process is simple,So it is better in leakproofness and waterproof.

--Thirdly,when importing,the plywoodcase is with fumigation-free,the procedure is simple
