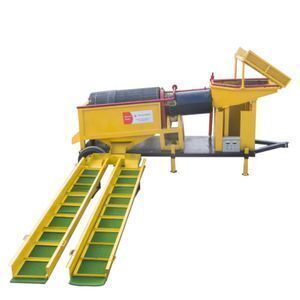

SINOLINKING Rotary Trommel Screen Gold Washing and Processing Plant

Click here to contact

Product details

Weight:	5 tons;	Production Capacity:	98%;
Warranty:	1 year;	Brand Name:	SINOLINKING;
Place of Origin:	China;	Supply Ability:	10 Piece/Pieces per Month;
After-sales Service Provided:	Video technical support,Free spare parts,Online support,Field installation, commissioning and training;	Gold refinery system:	shaker tabele + amlagamator + furnace;
Dimension(LWH):	customized;	Fine gold recovery:	Knelson concentrator;
Packaging Detail:	Hot sale sand gravel small trommel screen from China 1,LCL : Wood case or channel steel frame with iron piece 2,FCL : Nude and firmed in container (20GP, 40GP, 40HQ);	Type:	Gravity Separator;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Coarse gold recovey:	hydraulic vibrating sluice + sluice box;	Color:	As your requirement;
Applicable Industries:	Energy & Mining;	Voltage:	110v -380v;
Certification:	ISO9001 CE BV SGS;	Application:	For placer/alluvial gold washing;
Certification:	ISO9001 CE BV SGS;	Payment Terms:	L/C,T/T;
Pump Power:	35KW;	Portable:	As your requirement;
Port:	Qingdao;	Recovery Rate:	98%;

SPECIFICATIONS OF GOLD EXTRACTION EQUIPMENT FOR WASHING GOLD SEPARATOR MACHINE
Model	MGT50	MGT100	MGT200
Parameters
Size /mm	700020003000	830024004700	980030005175
Capacity	50-80 tph	100-150 tph	200-300 tph
Power	50 kw	120 kw	150 kw
Feeder Hopper /mm	2000*2200	3000*2200	3800*3000
Clay Scrubber /mm	φ1000*2000	φ1200*3000	φ1500*3000
Trommel Screen /mm	φ1200*3000	φ1500*3500	φ1800*4000
Sluice Box	2 sets	3 sets	4 sets
Water Supply /m³	120 m³	240 m³	370 m³
Wheels	6 wheels	10 wheels	10 wheels
Recovery Rate	98%	98%	98%

Pre-Sales Service	Afer-Sales Service
Receiving clients inquiry Studying clients mining conditions Introducing our machinery Propose the most suitable solution	Design outlet with 3D drawing photo Producing according to the design Inspection and testing before delivery Engineers installation and training service

Q1. Are you factory?
A: Yes , established in 2002 , over 17 years factory.

Q2. How big are you?
A: In tolal 4 work shops , 12,000 m , office 2000 m , 65 workers.

Q3. What equipment do you build?
A: Specialized in allnuial / placer gold / diamond mining equipment.

Q4: Whats the capacity of the gold /diamond mining equipment?
A: From 5TPH to 450 TPH.

Q5: What brand engine / diesel generator do you use?
A: Cummins , Weichai , Yuchai , etc , or as required.
