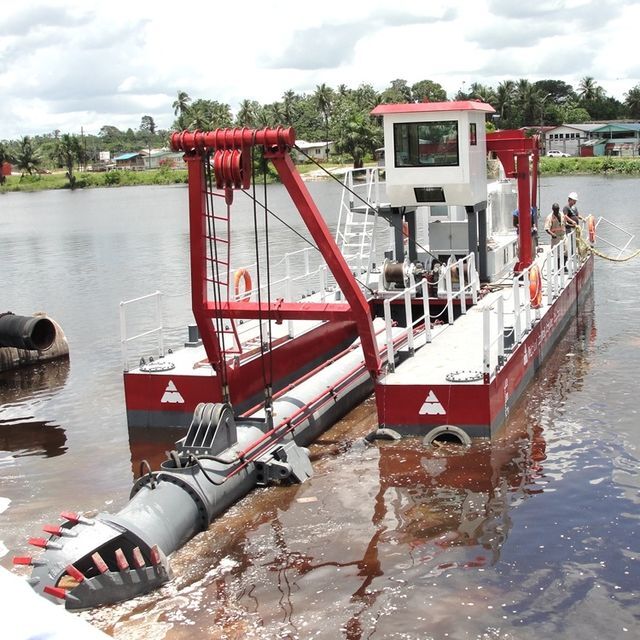

SINOLINKING river sand extractor cutter suction pump dredger for sale

Supplier: Shandong Sinolinking Import And Export Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Liu
Price: $26000.00 / 1 - 1 sets
$24000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Construction Engineering, Energy and Mining	Showroom location:	not any
Dimensions (LWH):	25m5m2m	draft:	90 inches
Gross weight per piece:	45.000 kg	Video external inspection:	if
place of origin; place of origin:	Shandong China	monitor rate:	450Kw
After-sales service provided:	Engineers can go overseas to service machinery, video technical support, free spare parts, online support, on-site installation, commissioning and training, on-site maintenance and repair services	Core components:	engine
Health status:	new	Dredging depth:	5-20 meters
capacity:	500-4500m3/h	Local service location:	Canada, Saudi Arabia, Malaysia, United Arab Emirates, South Africa
Single package size:	35X50X20 cm	Discharge distance:	100m-2000m
Dredging depth:	15 meters	weight:	55 tons
Packaging Preview:		Marketing Type:	New Products 2020
brand:	China United	type:	cutter suction dredger
Packaging Details:	1-LCL: wooden box or channel steel frame with iron sheet 2-FCL: bare and fixed in container (20GP, 40GP, 40HQ)	power supply system:	marine diesel engine
work place:	river/lake/sea/pond	Certification:	CE, ISO
Power Type:	diesel engine	Sand production:	200-1200 M3/h sand
Warranty:	1 year	Mechanical test report:	if
Diameter head:	1300mm	Sales unit:	single product
Core Components Warranty:	1 year

describe

Features of our dredgers

1) SLK-CSD series dredgers are designed according to your specific mining conditions and requirements.

2) The minimum dredging depth is 5 meters and the maximum is 30 meters.

3) The processing capacity can reach 100-5000m3/h.

4) High power and long life dredging pump.

5) Power supply system with Cummins/Weichai diesel generator with all batteries, cables and wires.

6) Easy to install, operate and maintain.
7) One-stop sand dredging solution from A to Z.

dredger specifications
Model	carbonated drinks 100	CSD200	CSD300
parameter
Dredging depth	Dredging depth	Dredging depth	Dredging depth
Pump flow	200 m³/h	800 m³/h	2000 m³/h
strength	100kW	250kW	600kW
Dredging depth	5-10m	10-20m	10-30m
Discharge distance	50-100m	100-500 meters	100-2000 meters
Sand output	40-60m3/h	160-250m3/h	400-600m3/h
average draft	0.6m	0.8m	1.4m
Pump size	6 inches	8 inches	12 inches
Agreement	16m	23m	33m
application	river pond lake sea	river pond lake sea	river pond lake sea

detailed image

technical details

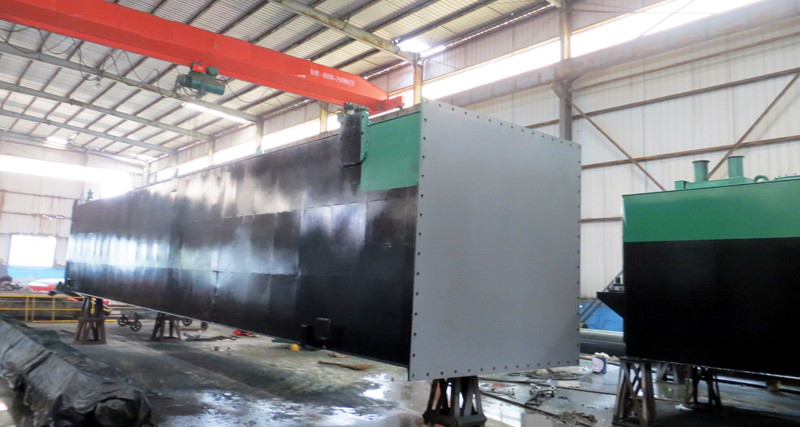

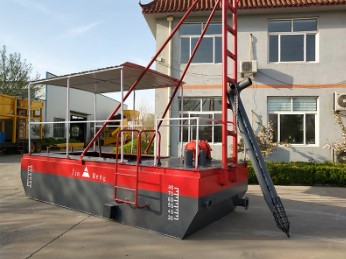

Dredger Photon

Name: Dredger
Photon material: marine steel plate
Structure: Can be disassembled on site

Number of photons: two side photons and one main photon

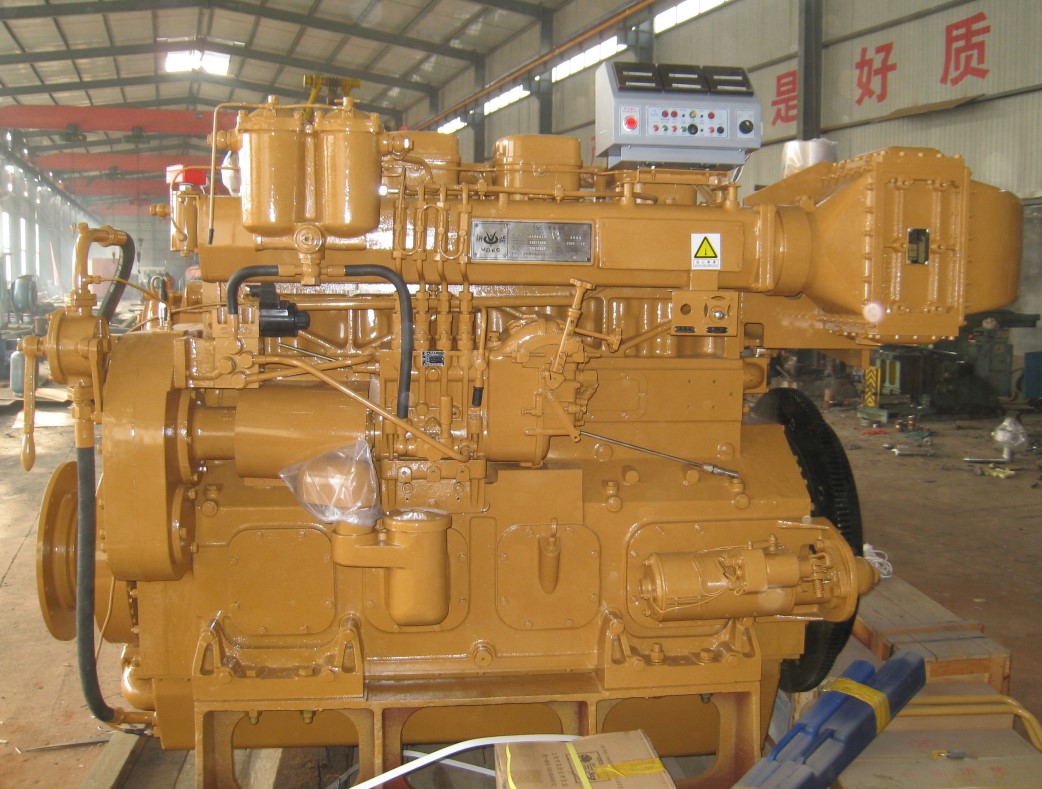

Power Systems

Name: Diesel Engine
Brand: The world famous Cummins brand

Weichai brand or as required
Power: 60-2000Kw
Function: Power the dredger

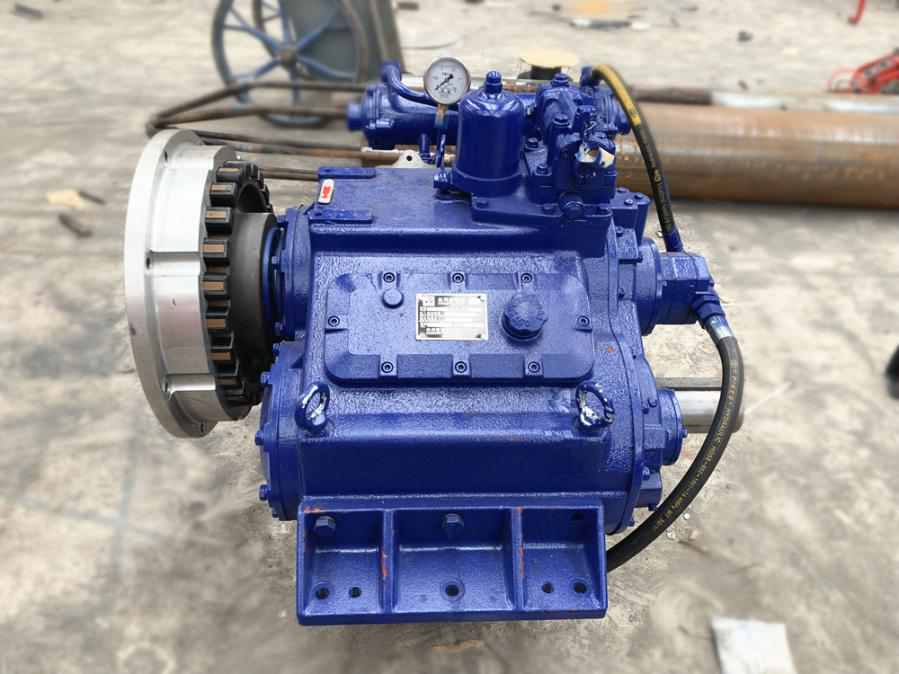

marine gearbox

Brand: Made in China, a famous brand in Hangzhou

Guarantee: International Warranty Service

Speed ratio: 2:1 2.5:1

Control mode: push-pull flexible shaft, electric, pneumatic

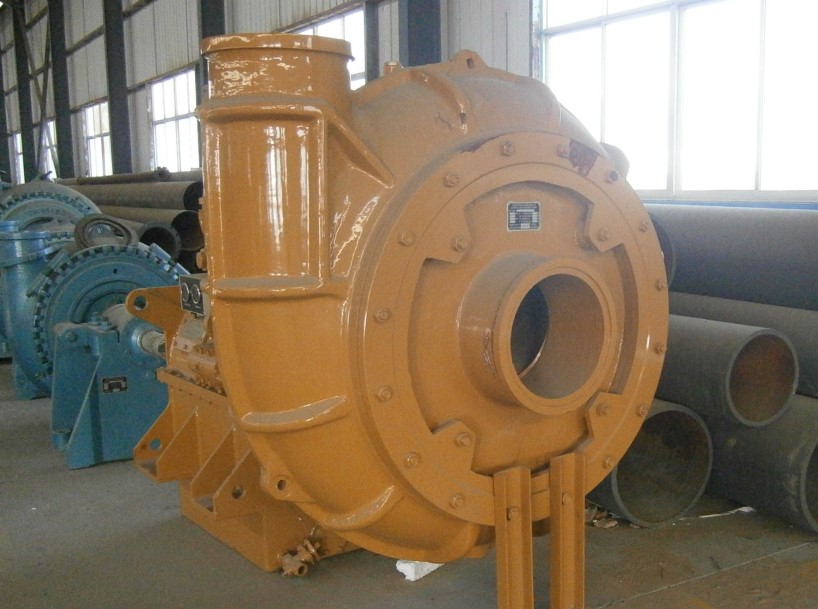

sand pump

Pump flow: 100-5000m3/h

Sand output: 40-1500m3/h

Material: high chrome alloy super wear-resistant

Discharge distance: 100-2000m

Pump Seals: Packing Seals

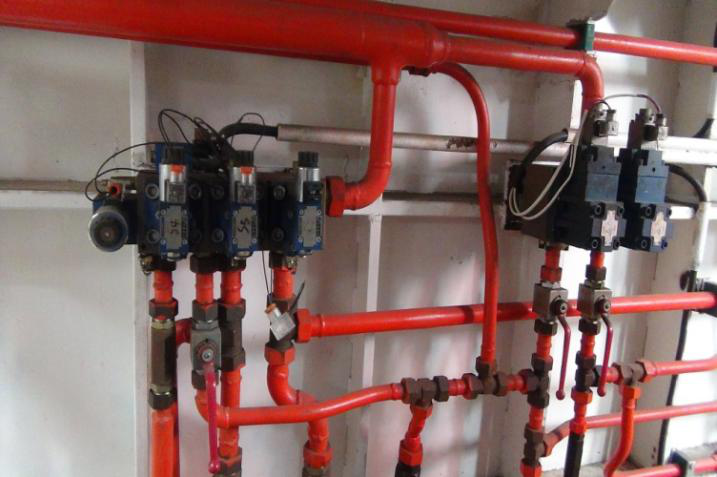

Hydraulic system

Tool head hydraulic system

Piling hydraulic system

winch hydraulic system

hydraulic pump

Hydraulic Tanks and Piping

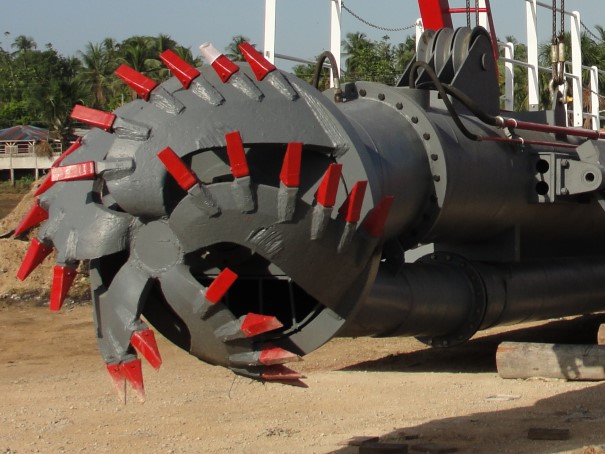

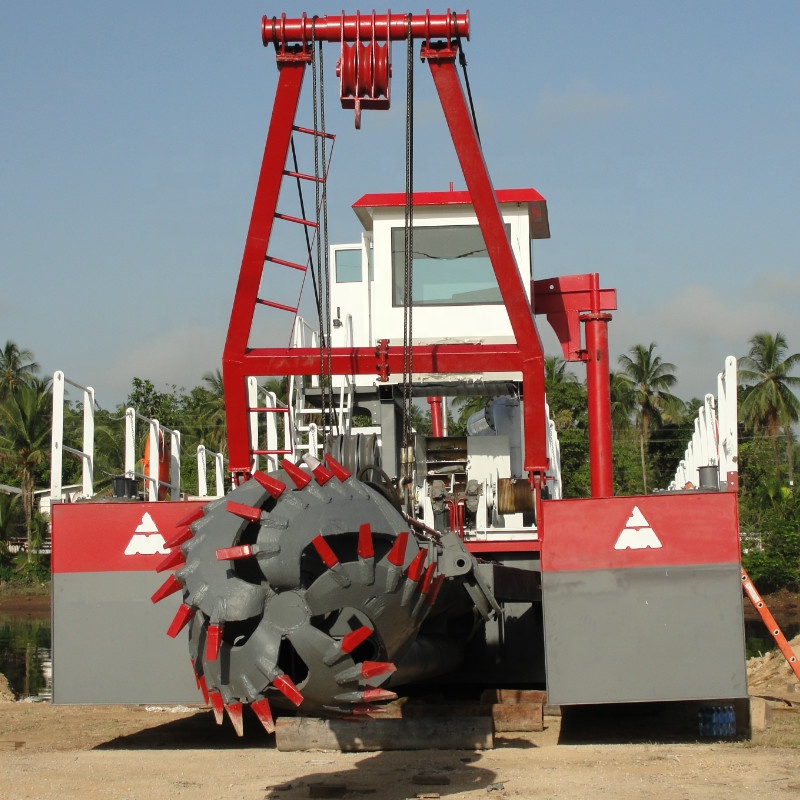

cutter head

Drive Type: Hydraulic Drive
Tooth type: replaceable alloy teeth
Blade material: K10.40Cr wear-resistant

Blade material: 16Mn

Number of teeth: multi-tooth

water inlet system

Drive Type: Hydraulic Drive

Quantity: 4 sets

Steel thickness: +16mm

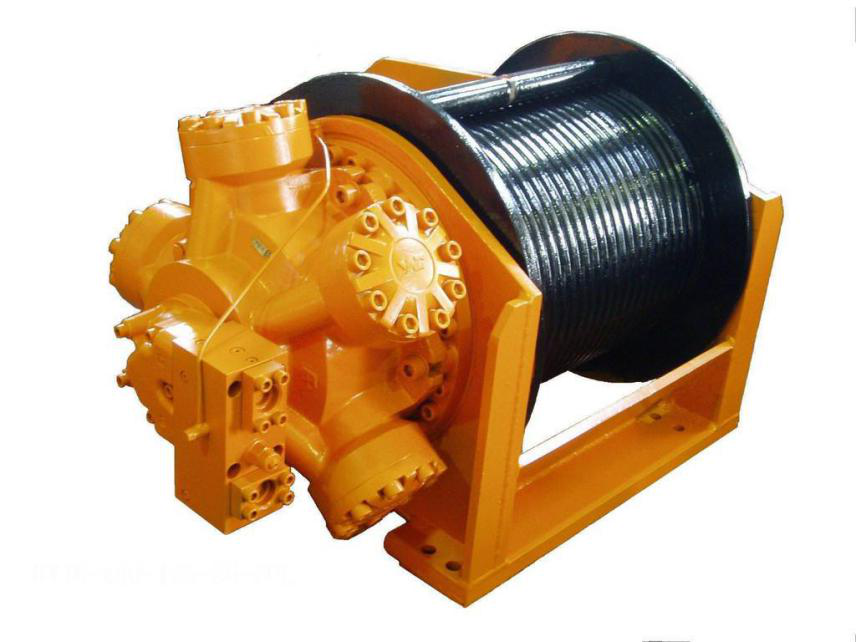

hydraulic winch

Drive mode: Hydraulic drive hydraulic bridge winch Hydraulic side winch with wire rope and fixed anchor

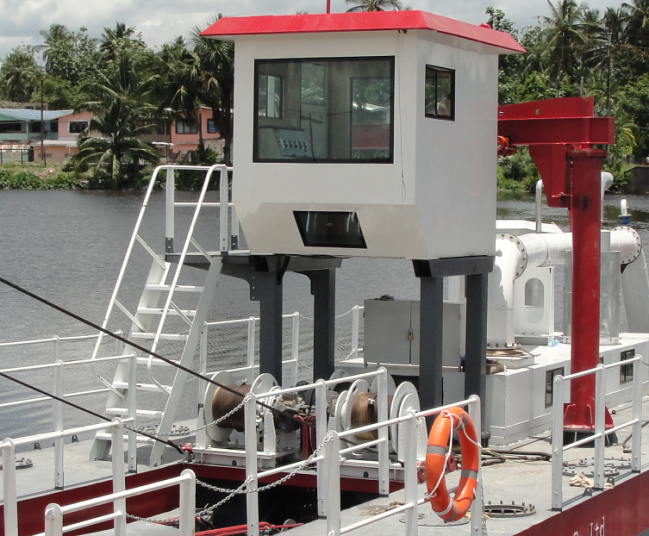

Control System

Work compartment with control system

Console: 1 set of integrated control Delixi electrical accessories work chair

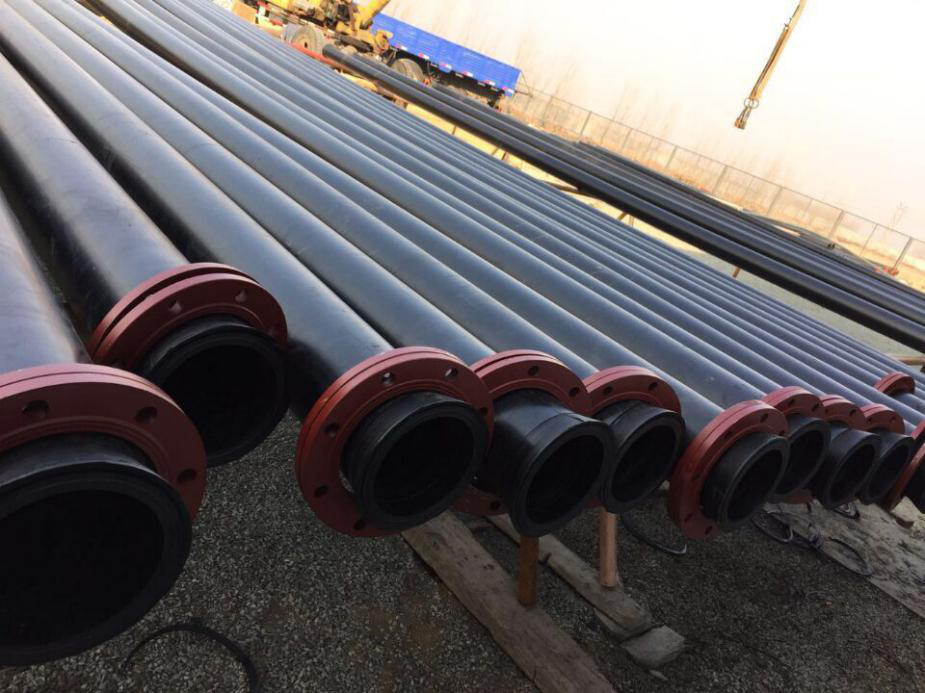

discharge system

HDPE pipe with float

Connect the rubber hose

Discharge distance customization

real estate products

our service

Pre-sale serviceAfter-sale service

* Receive customer inquiries * 3D drawings, photos, design export
* Research customer mining conditions * Produce as designed

* Introducing our machine * Inspection and testing before delivery
* Propose the most suitable solution* Engineer overseas installation training service
