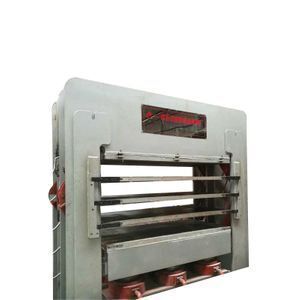

Plywood bending hot press machine hydraulic hot press machine for doors

Product details
layer number:3;4;5;Port:Qingdao;
Certification:ISO9001;Weight:4000kg etc.;
After-sales Service Provided:Field installation, commissioning and training;piston cylinder number:4;6;8 etc.;
Packaging Detail:standard packaging for container;layer spacing:300mm etc.;
finishied wood door skin size:3*7 feet,6*9 feet, 4*8feet etc.;Place of Origin:China;
Supply Ability:200 Set/Sets per Year reliable quality;Voltage:380V;
machine dimension:3490*1400*3200mm etc.;Payment Terms:L/C,T/T;
Power(W):22KW;Condition:New;
Brand Name:Shengyang;color:according to customers' requirements;
equipment name:door skin press mould;Warranty:1 year;
hot platen thickness:42mm;50mm;52mm;60mm etc.;weight:36T;45T;48T etc.;
Dimension(L*W*H):4100x1370x4000 mm etc.;Applicable Industries:woodworking;
Pressure:1200T~2800T;nominal pressure:900;1200T,1600T;2000T;2800T etc.;

Plywood bending hot press machine hydraulic hot press machine for doors

Product Display

Product Description

Introduction of MDF door skin

MDF door skin can be used to make beautiful doors which can be combined with  honeycomb paper.The door skin can be designed with different patterns all depends on the molds.

Advantage of door skin

1.low cost make big profit

2.energy consumption saving

3.few labor cost

4.big demands for MDF door skin

All elements can be the reason you choose to produce MDF door skin.

Type

Finished Board Size(ft)

Nominal Pressure(KN)

Hot platen size(mm)

Layer Spacing(mm)

Main Oilcylinder(diameter×number)

 NYJ-800T

3 layers

3×7

 8000

1150×2250×70

 250

Φ440×920×4

4 layers

3×7

 8000

1150×2250×60

 250

Φ250×1000×8

5 layers

3×7

 8000

1150×2250×60

 250

Φ280×1250×6

NYJ-1200T

3 layers

3×7

 12000

1150×2250×70

 300

Φ320×920×6

4×8

1400×2600×70

4 layers

3×7

 12000

1150×2250×60

 250

Φ320×1000×6

4×8

1150×2250×60

5 layers

3×7

 12000

1150×2600×60

 250

Φ280×1250×8

4×8

1400×2600×60

NYJ-1400T

3 layers

3×7

 14000

1150×2250×70

 300

Φ340×920×6

4×8

1400×2600×70

4 layers

3×7

 14000

1150×2250×60

 250

Φ340×1000×6

4×8

1400×2600×60

5 layers

3×7

 14000

1150×2250×60

 250

Φ440×1250×6

4×8

1400×2660×60

NYJ-1600T

3 layers

4×8

 16000

1400×2600×70

 250

Φ380×920×6

4 layers

4×8

 16000

1400×2600×60

 250

Φ380×1000×6

5 layers

4×8

 16000

1400×2600×60

 250

Φ380×1250×6

Door skin press machine is suitable for moulding and veneering of melamine mdf/hdf door skin, natural wood mdf/hdf door skin. They adopts spring synchronous closed structure, can stop at any position according to the production process (or position-limit control), and residence time can be adjusted.
Hot Sale Products

Our Clients

Company Information

Certificates

Packaging & Shipping

Contact Us

FAQ

1. Can you customize products for clients?

Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?

We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.



3.Why does the price often change?

 The price depends on the latest prices of the raw materials.



4. What about the contract signing?

If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.



5. How about delivery?

 when the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
