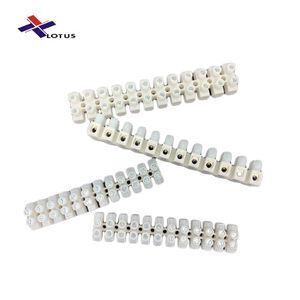

500 COPPER Terminal Block 22-10AWG 500pcs H&U type cable pin block terminal block with 12 pin

Supplier: Wuxi Lotus Import And Export Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sun Michael
Price: $142.00 /carton
Min. Order: 1 carton

Click here to contact

Product details

Package Type:	One car operation panel covered by wrapping film and more packaged by Carton Box/Wooden Case;	Brand Name:	OEM;
Temperature:	110℃,150℃,850℃;	Type:	H type terminal block;
Type:	H type terminal blocks;	Color:	White, Green, Blue, Gray, Red, Yellow, Black;

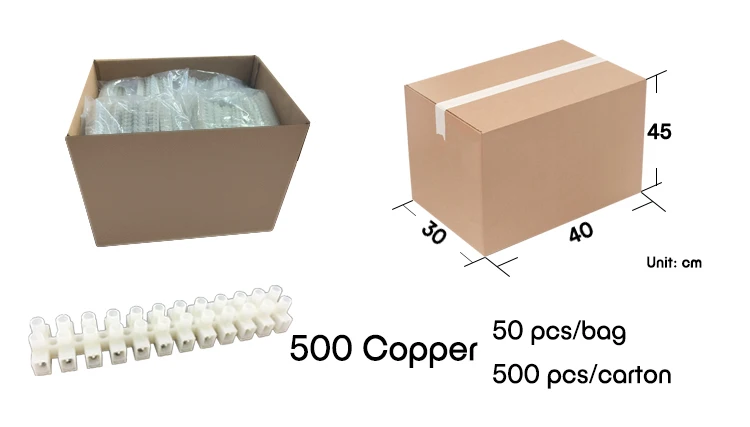

Package:	carton;	Single gross weight:	16 KG;
Base:	1.2-1.5mm higher base;	Certificate:	UL, CE, CQC, VED;
Strip Length:	230/PA8 5.0mm 500/PA10 6.5mm PA12 7mm PA14 9mm PA16 9mm PA18 11.5mm;	Place of Origin:	China;
Package Preview:	https://sc02.alicdn.com/kf/H2bfc9eda9d9b4724be8301fe96b11041O.jpg_640x640.jpg;	Conductor Size:	4-22AWG;
Brand:	OEM;	Single package size:	40X30X45 cm;
Selling Units:	Single item;	Number of Contacts:	1-12;
Material:	NYLON 66;	Wire Pole:	1-12 poles cuttable;
Model Number:	500 COPPER;

H&U type cable pin block terminal block with 12 pin

Product Description

·Base:1.2-1.5mm higher base

·Shell:Nylon 66 plastic,UL94V-2,94V-0

·Temperature: 110°C,150°C,850°C

·Materal: PA, PE, PP

·Color:

·Wire Base: Copper or Zinc alloy

·Wire Protector: stainless steel

·Spiral: Carbon steel material with galvanizing

·Strip Length: 230/PA8 5.0mm 500/PA10 6.5mm PA12 7mm PA14 9mm PA16 9mm PA18 11.5mm

·Wire Pole: 1-12 poles (cuttable)

·Applications: Widely used in all kinds of electrical products and home wiring equipment, durable and reusable with good insulation properties.

Terminal Block(H Type)

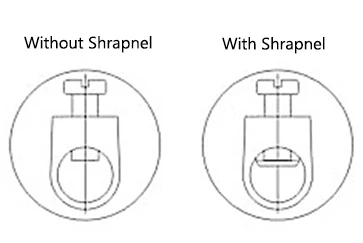

Without shrapnel	With shrapnel	Amp	Wire Range		Screw	Dimensions(mm)						Packing

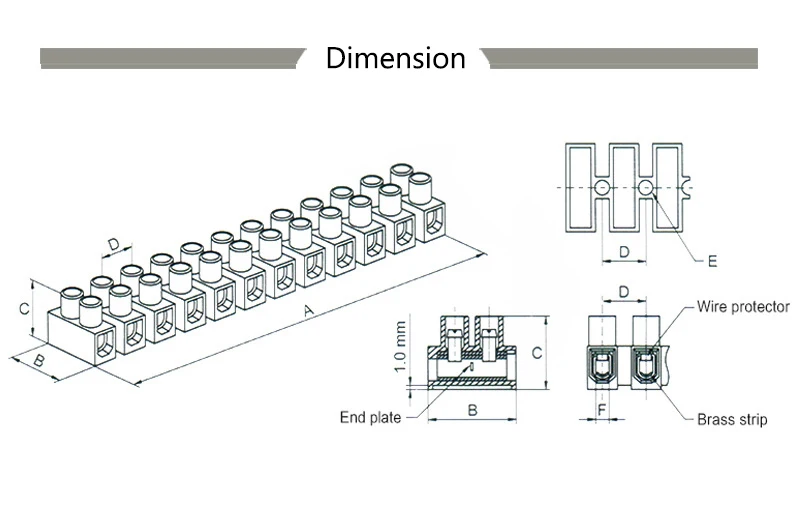

Without shrapnel	With shrapnel	Amp	Cross-Sec.	(Cu, AWG)	Screw	A	B	C	D	E	F	Packing
230		17.5	1.5-2.5mm²	22-12AWG	M2.6 x 5	94.7	18.10	13.30	8.10	2.90	2.9±0.1	50Pcs/Bag 500Pcs/Ctn
PA8	PA8DS	17.5	1.5-2.5mm²	22-12AWG	M2.6 x 5.2	96.2	17.20	14.50	8.20	2.90	2.8±0.1	50Pcs/Bag 500Pcs/Ctn
500	500WP	24	2.5-4mm²	22-10AWG	M3.0 x 6	117.6	20.20	16.70	10.00	3.50	3.4±0.1	50Pcs/Bag 500Pcs/Ctn
PA10	PA10DS	24	2.5-4mm²	22-10AWG	M3.0 x 6	116.5	20.20	17.20	10.00	3.60	3.4±0.1	50Pcs/Bag 500Pcs/Ctn
PA12	PA12DS	41	6.0mm²	22-10AWG 14-12AWG	M3.5 x 7	139.5	23.80	19.00	12.00	3.90	4.2±0.1	40Pcs/Bag 400Pcs/Ctn
PA14	PA14DS	57	10.0mm²	20-10AWG	M4.0 x9	157.7	25.60	24.80	13.50	4.40	5.0±0.1	25Pcs/Bag 250Pcs/Ctn
PA16	PA16DS	75	16mm²	14-6AWG	M4.0 x9	170	28.10	23.30	14.50	4.20	6.0±0.1	10Pcs/Bag 200Pcs/Ctn
PA18		101	25mm²	12-4AWG	M5.0 x 11	194	37.00	28.70	16.50	4.00	7.5±0.1	10Pcs/Bag 100Pcs/Ctn

H&U type cable pin block terminal block with 12 pin

More products

Lighting Connector Closed End Connector Cable Tie Wire Connector

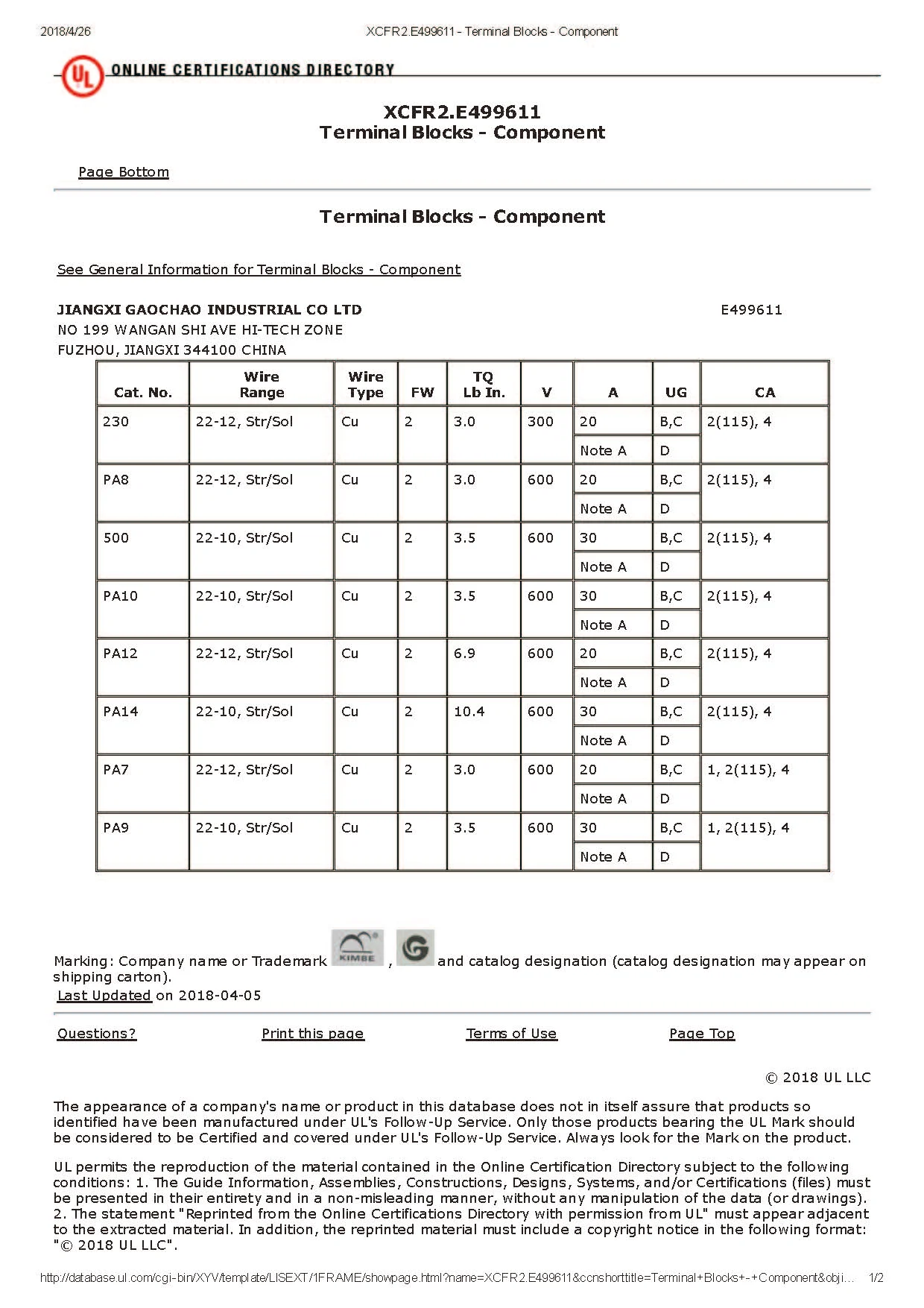

Certifications
