Hot Sale salt vibrating fluid bed dryer

Product details
Voltage:220v/380v;Supply Ability:30 Set/Sets per Month;
Packaging Detail:Wooden Cases;Brand Name:Genyond;
Condition:New;Certification:CE ISO;
Port:Shanghai Port,China;Warranty:12 Months;
Payment Terms:L/C,T/T,Western Union;Dimension(L*W*H):as the capacity;
Place of Origin:Shanghai China;Material:Stainless Steel;
Type:Fluid Bed Drying Equipment;After-sales Service Provided:Engineers available to service machinery overseas;
Power(W):1.6KW;Weight:as the capacity;

Hot Sale Vibrating Fluid Bed Dryer Machine for Sale



Introduction:

The Vibrating Fluid Bed Dryer is widely used in chemical industry, light industry, medicine, food and beverage, plastics, grain and oil, slag, salt, sugar, and other industries for powder and granular materials’ cooling,humidification,drying.



Principle:

Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.



Main Technical Parameter:

Model(ZLG)

Fluid bed area(m2)

Inlet air temperature (℃)

Outlet air temperature(℃)

Capacity of vaporized moisture (kg/h)

Vibration Motor

Model

Power (kw)

3×0.30

0.9

70-140

40-70

20-35

ZDS31-6

0.8×2

4.5×0.30

1.35

70-140

40

35-50

ZDS31-6

0.8×2

4.5×0.45

2.025

70-140

40

50-70

ZDS32-6

1.1×2

4.5×0.60

2.7

70-140

40

70-90

ZDS32-6

1.1×2

6×0.45

2.7

70-140

40

80-100

ZDS41-6

1.5×2

6×0.60

3.6

70-140

40

100-130

ZDS41-6

1.5×2

6×0.75

4.5

70-140

40

120-140

ZDS42-6

2.2×2

6×0.90

5.4

70-140

40

140-170

ZDS42-6

2.2×2

7.5×0.60

4.5

70-140

40

130-150

ZDS42-6

2.2×2

7.5×0.75

5.625

70-140

40

150-180

ZDS51-6

3.0×2

7.5×0.90

6.75

70-140

40

160-210

ZDS51-6

3.0×2

7.5×1.2

9

70-140

40

200-260

ZDS51-6

3.0×2

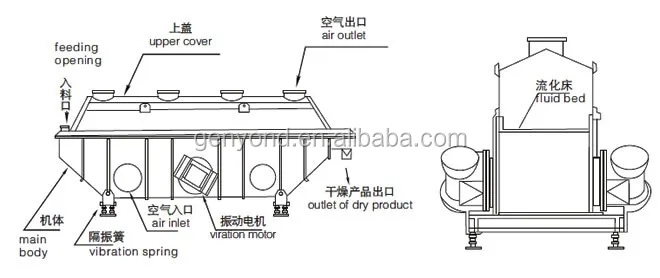

Flow Chart:



Other Details:



1.Package: wooden cases for sea transportation

2.Delivery time: 30 working days after receiving the deposit

3.Installation : engineers available for installation and training overseas

4.Guarantee : 12 months after it is sent out



Plz feel free to contact me for any further information.
