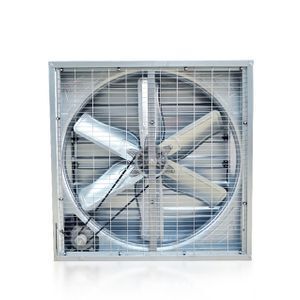

Industrial Factory Greenhouse Ventilation Exhaust Fan
- 198.00 piece
| Model Number: | SP-C-E-YFS-800; | Air Volume: | 23500m3/h; |
| Mounting: | Wall Fan; | Electric Current Type: | DC; |
| Frequency: | 50 Hz; | Height: | 800mm; |
| Noise: | ≤64db; | Type: | Axial Flow Fan; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | speed: | ≥1400R/min; |
| Blade Material: | Stainless Steel; | Power: | 370W; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | width: | 800mm; |
| rated power: | 380V; | Application: | greenhouses,Factory,workshop; |
| thickness: | 450mm; | Material: | Stainless Steel; |
| Speed: | 1400-3300 R/min; | Voltage: | 380V; |
| Place of Origin: | Jiangsu China; | Brand Name: | skyplant; |
| Packaging Detail: | shipping packing; | Delivery Detail: | 7days; |
| Product name: | Ventilation Exhaust Fan; | Supply Ability: | 1000000 Set/Sets per Month; |
| Port: | shanghai port; |
2016 Industrial Factory Greenhouse Ventilation Exhaust Fan
The Greenhouse Exhaust fan is popular in recent years.The Greenhouse Exhaust fan is a new environmentally friendly and energy-saving plant ventilation cooling equipment, because of the exhaust fan's large amount of ventilation, ventilation and cooling effect is good, low noise, the installation of the use of the site of the smallest destructive, cheap to buy, wide range of applications, Long life and other significant features, more and more users are loved.
| NO. | Drive | Blades Diameter mm | Air Flow m³/h | Watts w | Noise Decibles dB | Power Parameter | SIZE (L*W*H) mm |
| SP-F-400 | Direct | 360 | 9000 | 180 | max 70 | 380V/50HZ | 400*400*310 |
| SP-F-480 | Direct | 440 | 10000 | 180 | max 70 | 380V/50HZ | 480*480*310 |
| SP-F-620 | Direct | 580 | 18000 | 370 | max 70 | 220V/50HZ 380V/50HZ | 600*600*370 |
| SP-F-800 | Belt | 710 | 22000 | 370 | max 65 | 220V/50HZ 380V/50HZ | 800*800*370 |
| SP-F-900 | Belt | 800 | 23000 | 370 | max 65 | 220V/50HZ 380V/50HZ | 900*900*370 |
| SP-F-1000 | Belt | 900 | 25000 | 750 | max 65 | 220V 50HZ 380V/50HZ | 1000*1000*400 |
| SP-F-1100 | Belt | 1000 | 32000 | 750 | max 64 | 220V/50HZ 380V/50HZ | 1100*1100*400 |
| SP-F-1380 | Belt | 1250 | 44000 | 1100 | max 64 | 220V/50HZ 380V/50HZ | 1380*1380*400 |
| SP-F-1530 | Belt | 1400 | 55000 | 1500 | max 64 | 220V/50HZ 380V/50HZ | 1530*1530*400 |
Note :
- SP-F-400, SP-F-480, SP-F-620 Fan with 4 fan blades which motor-drive blades directly type avoid the frequent problem occurred by belt.
Other models are have 6 fan and drive by fan belt
- Powder parameter can be customized
- Exhaust Fan Inverter : the fan speed can be adjusted
Feature:
Advanced balancing open-close mechanism can ensure shutter 100% open and shut down;

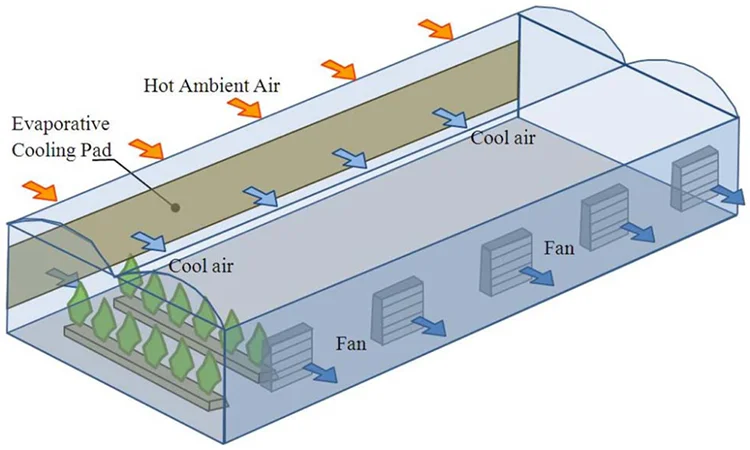

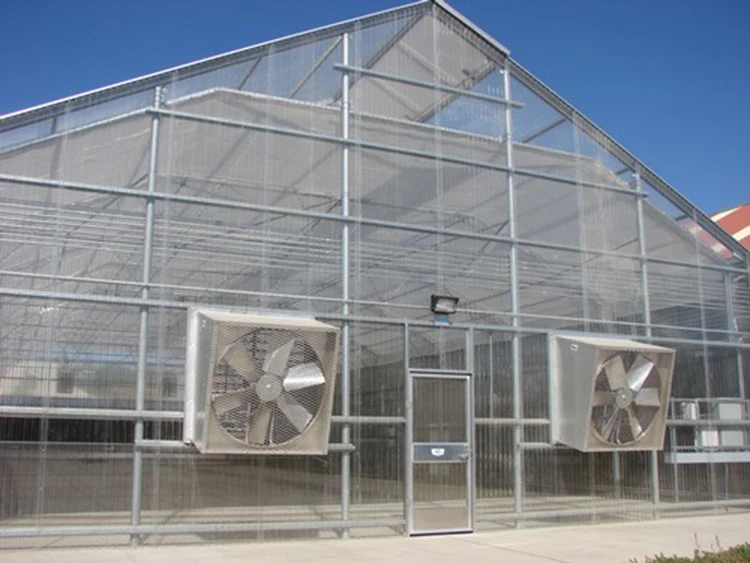

Mainly used for greenhouse, industrial workshop, livestock housing;
Low noise and high air flow capability;
Blades can clean themselves automatically when they are running;
High efficiency motor with stable performance.
Welcome to visit our homepage to know more about us:https://skyplant.en.alibaba.com/contactinfo.html
