Manufacture machinery hydraulic 32m concrete boom placer

Product details
Weight:2860KG;Single gross weight:18,999 KG;
Warranty:1 Year;Name:Manufacture machinery hydraulic 32m concrete boom placer;
Dimension(L*W*H):2500*2000*1900mm;Selling Units:Single item;
PRESSURE:30MPA;COLOR:Customer's Appitite;
Package Type:FCL for Manufacture machinery hydraulic 32m concrete boom placer.;Package Preview:https://sc02.alicdn.com/kf/HTB1uu3IaZfpK1RjSZFOq6y6nFXaF.jpg_640x640.jpg;
Place of Origin:Shandong China;Squire support height:4.2~4.5m;
Single volume:89 cm;Application:Concrete Placing;
SIZE:32M;After-sales Service Provided:Overseas service center available;
Model:HG28/HG32/HG32E;Certification:CE/ISO9001;
Power(W):30KW;Voltage:380V/50HZ;
Boom length:32m;ROTATION SCOPE:0~360;
Brand Name:JIUHE boom placer;Type OF boom placer:FLOOR CLIMBING BOOM;
Condition:New;
WHO WE ARE

Manufacture machinery hydraulic 32m concrete boom placer.

Qingdao Jiuhe Heavy Industry Machinery Co., Ltd.

JIUHE is specialized in researching, manufacturing, and selling concrete machines such as concrete mixing machine, concrete pumping machine, concrete placing machine and other Heavy Industry machinery. We are New High-Tech Enterprise with more than 20 Patents. Choose us, you can absolutely feel free on after-sale service. Customer Satisfaction is our pursuit, Long-term cooperation is our goal, Mutual benefit and win-win result is our principle. Any products interest you, Kindly contact us, Quality machine together with Warm and attentive service are waiting for you!

CONTACT US NOW TO COLLECT MORE DETAILS FOR Manufacture machinery hydraulic 32m concrete boom placer.

after-sales service

Team with knowledge and experience, and well equipped, read to provide service for your equipment, anytime and anywhere.
Multi-level, multimode and high efficiency service training make the service team develop all of their skills and each of them an expert in this field.
Providing you with high quality, one-stop total solution and the efficient save system, guaranteeing your equipment running well without worries and maximum save your costs.

WHAT DO WE PRODUCE

CHARACTER

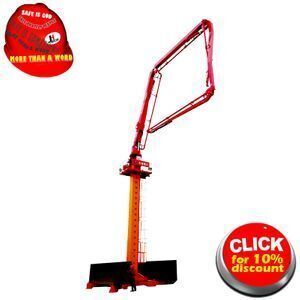

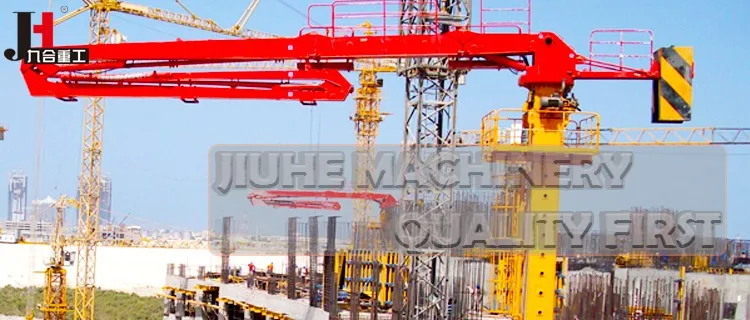

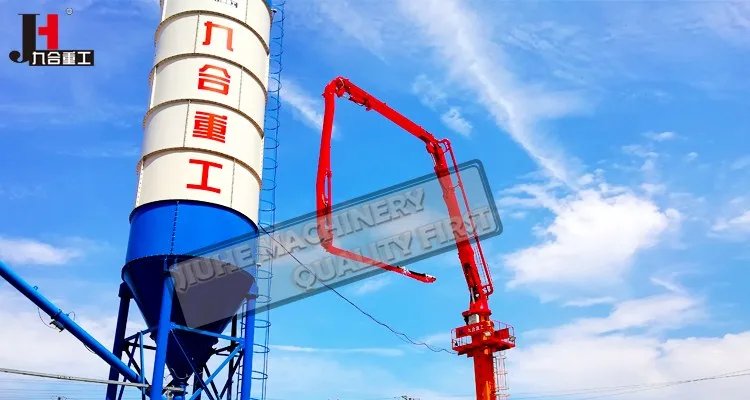

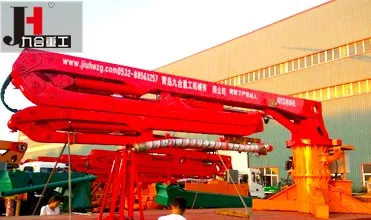

Manufacture machinery hydraulic 32m concrete boom placer, of three sections of folding arm in the "Z" shape, can be rotated all around, pitched and folded, its amplitude can be changed, realizing three-dimensional and full range of pouring within the length of cantilever crane, leaving no dead space, also, it can easily realize concrete pouring in all sorts of construction operation, including wall, tube, column and pile.

Manufacture machinery hydraulic 32m concrete boom placer
MITEM
UNIT
HG28
HG32
HG32E
MAX.PLACING RADIUS
M
28
32
32
ROTATION SCOPE
O
0~360
MHEIGHT
M
22.7
MJACKING HEIGHT
M
0.52
HYDRAULIC SYSTEM PRESSURE
MPA
30
CONCRETE DELIVERY PIPE INNER DIAMETER
MM
125
POWER
KW
11
15
30
TAIL ROTARY RADIUS
M
-
3.8
-
21000BARE MACHINE WEIGHT
KG
21000
21940
23200
MOBILE HYBRAULIC CONCRETE PLACING BOOM
MAX.PLACING RADIUS
M
HGY13
HGY15
HGY17
HGY18
ROTATION SCOPE
O
0~360
HYDRAULIC SYSTEM PRESSURE
MPA
24
CONCRETE DELIVERY PIPE INNER DIAMETER
MM
125
POWER
KW
4
4
5.5
5.5
SUPPORTING LEGS SPAN
M
3.15X3.15
4X4
4X4
5X5
HEIGHT
M
3.9
2.6
3.2
3.75
BARE MACHINE WEIGHT
KG
2700
3230
5000
6700
BALANCE WEIGHT
KG
1800
2200
2200
2200

Advantages

The fortified tubular column is adopted. Deformation of the head of the tubular column is 20%~25% less than congener products, it improves the precision for pouring concrete and reduces vibration of the tube.
The connecting structure parts are optimized, and the rigidity of the column is well and the vibration becomes less.

WE WIN,YOU WIN.


WHY WE ARE GOOD


WHAT DO WE USE

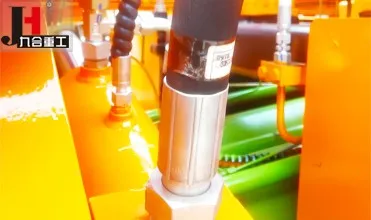

HYDRAULIC PIPE JOINTS


American Eaton;

Pipeline:Original form Italy supported by Eaton.

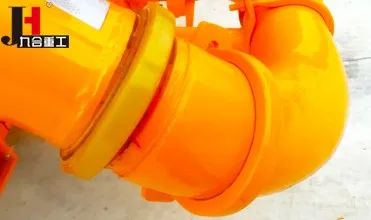

LARGE DIAMETER CONCRETE DELIVERY CYLINDER


Concrete delivery cylinder diameters are enlarged to 230mm,reduced upward and backward wearing times of concrete pistons,lengthened the service life of concrete pistons.Adoption of large diameter concrete delivery cylinders together with optimized hopper device improves actual efficiency of concrete pumping to largest extent.

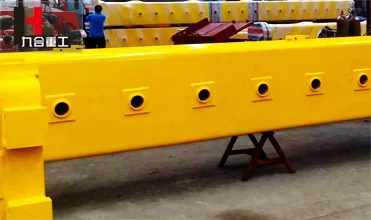

BODY


By hydraulic cylinder climbing

Rotary table and slewing mechanism

The slewing support is a large-sized bearing which connects the boom and the column, and bears the overturning moment produced by the boom. It is a key component that directly affects the whole machine's safety. The motor redactor is from Comer in Italy. It is in a high speed rate, and long life span and reliable. The hydraulic motor can rotate the slewing table and the boom 365°through the redactor.

HOW WE WORK

OUR TEAM.

Main products include: small concrete pump truck, concrete mixer truck, concrete mixing plant, trailer concrete pump, hydraulic concrete placing boom, plastering machine, industrial pump and high-altitude operation equipment. Among them the small concrete pump truck featuring independent R&D and innovation has been the first brand of China, ranked first in domestic market in terms of its annual production and sales volume, broke the status of long-term monopoly of foreign brands, completely changed the industrial competitive landscape and led in the field of Manufacture machinery hydraulic 32m concrete boom placer.

HOW TO USE IT

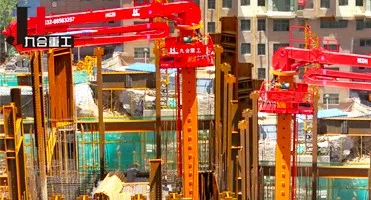

Service in indonesia

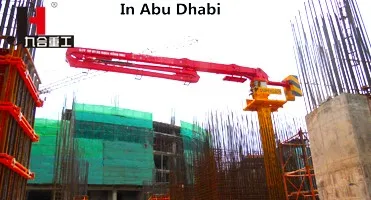

Service in abu dhabi


OTHER ITEMS WE OFFER

TRUCK-MOUNTED CONCRETE PUMP

99.8% Response Rate

HBT&DHBT SERIES CONCRETE PUMP

99.9% Response Rate

FLOOR CLIMBING DYDRAULIC CONCRETE PLACING BOOM

98.8% Response Rate
