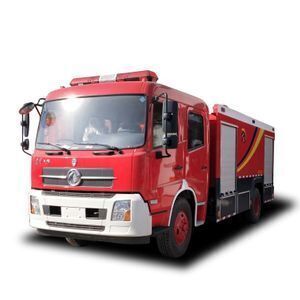

Euro 5 Dongfeng 4*2 Firefighting and rescue service vehicles,6 wheel fire truck,foam and water fire truck
-
Supplier: Hubei Chenyang Special Vehicles Co.,Ltd -
Region: Hubei, China -
Contact: Mr li jinjin -
Price: $35000.00 /unit -
Min. Order: 1 unit
Product details
| Fire pump: | CB10/40; | Name: | water tank fire truck; |
| Color: | Red; | Port: | any port of china; |
| Drive Wheel: | 4x2; | Payment Terms: | D/P,T/T; |
| Max. Work Height: | >=50m; | Fuel Type: | Diesel; |
| Transmission Type: | Manual; | Horsepower: | 150 - 250hp; |
| Place of Origin: | Hubei China (Mainland); | Chassis model: | DFL1160BX1V; |
| Engine type: | ISB180 50; | Chassis brand: | dongfeng; |
| Drive type: | 4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice; | Packaging Detail: | Complete Knocked Down,Semi Knocked Down,Knocked Down; |
| Supply Ability: | 1000 Unit/Units per Year; | Product Name: | fire fighting truck; |
| Condition: | New; | Size: | 8335*2435*3400; |
| Emission Standard: | EURO 5; | Tank Capacity: | 3001 - 5000L; |
| Brand Name: | Dongfeng; | Extinguishant: | foam and water; |
| Wheelbase: | 4700mm; | Type: | Rescue; |
1.Chassis
| Chassis model | DFL1160BX1V |
| Drive Type | 4x2 |
| Whelbase | 4700mm |
| Top Speed | 98km/h |
| Engine Type | ISB180 50(GB17691-2005,GB3847-2005)(diesel)(Euro 5) |
| Power | 132kw |
2.Driving room
+
| Size(L*w*H) | 8335*2435*3400 |
| Structure | Flat head, four door double row cab |
| Seat set | 4+2(Two people in the front row (including the driver) and four in the back) |
| Equipment | In addition to the original vehicle equipment, it is equipped with 100W alarm, rotary warning light switch, lever control switch and indicator light |
3.Volume of tank
+
| Volume | water:5000L,foam:1000L |
| Material | High quality carbon steel plate |
| Structure | Steel plate welded type, internal anti - swash plate |
| Equipment | 2 population hole, with a quick locking and opening device 2 overflow device 2 level indicator 2 outlet, manual control valve |
| Technical requirements | Comply with the relevant provisions of GA39 |
4.Fire pump
+
| Model | CB10/40 |
| Flow | 40L/s |
| pressure | 1.0Mpa |
| Water diversion time | ≤35s |
| Type of installation | rear-mounted |
5.fire monitor
+
| Model | PL32 |
| Flow | 32L/s |
| Range | range of water more than 50m,range of foam more than 45m. |
| pressure | 1.0Mpa |
| Turning Angle | The level is greater than 270 degrees, and the pitch is -15 to 45 degrees. |
+
 |  |
 |  |
