Pall ring random dumped tower packing
- 138.00 cubic meter
| Warranty: | 1.5 years; | Package: | Jumbo bag; |
| Usage: | chemical industry; | Sample: | free; |
| Port: | Ningbo shengzhen; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Place of Origin: | Jiangxi China; | Application: | isolation ,absorption,Ethylbenzene separation; |
| Brand Name: | April; | Condition: | New; |
| Material: | HDPE, PE,PVC ,CPVC ,PTFE ,PVDF ..; | Supply Ability: | 1000 Cubic Meter/Cubic Meters per Month; |
| Product name: | Pall ring random dumped tower packing; | After-sales Service: | yes; |
| Packaging Detail: | Jumbo sack bag or customized; | Applicable Industries: | Machinery Repair Shops,Energy & Mining; |
| Shape: | Column; | Certificate: | ISO9001:2008; |

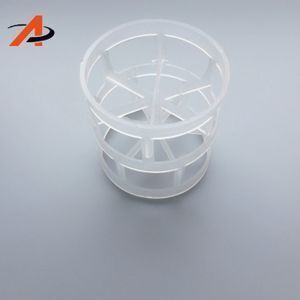

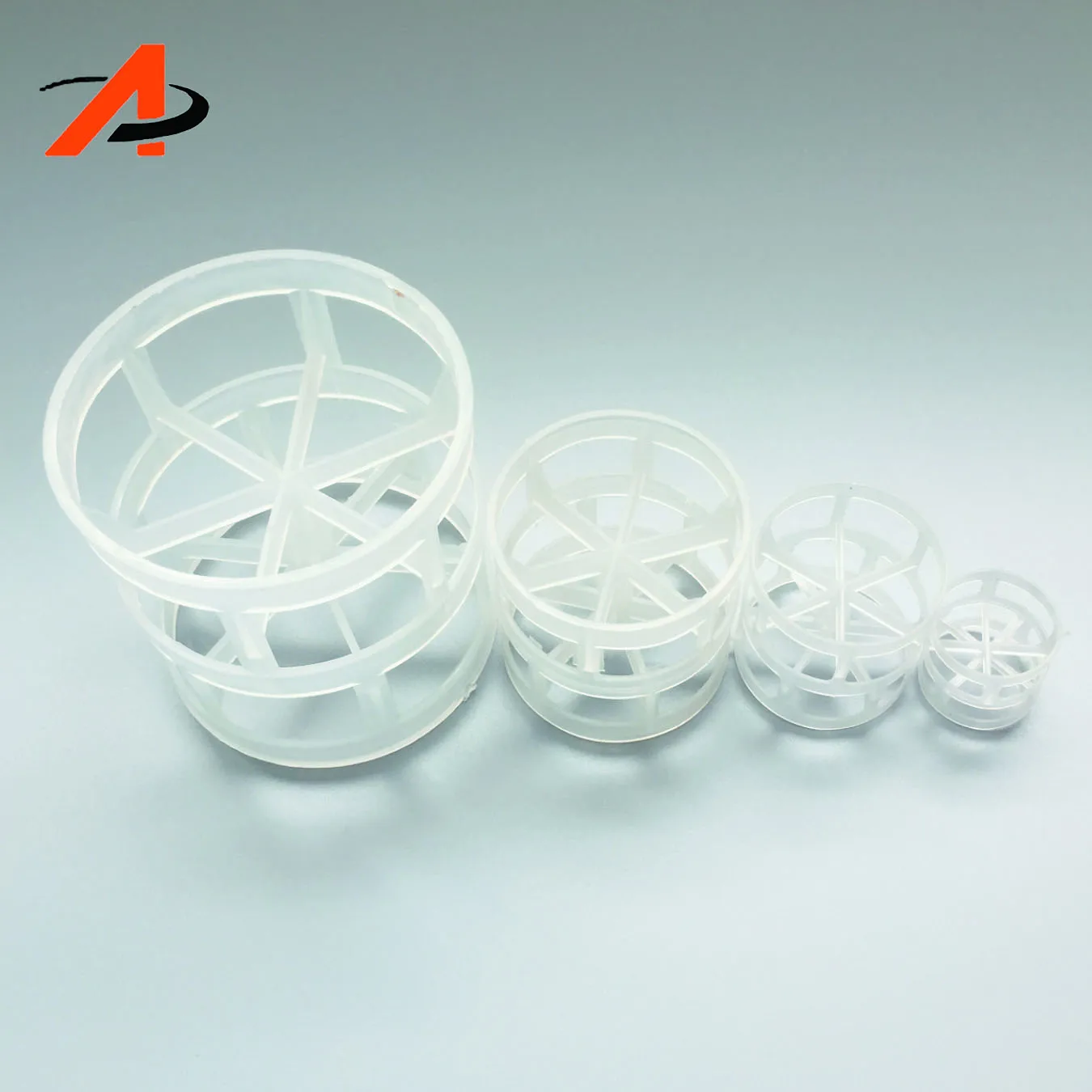

Pall ring dumped tower packing
Designed based on the Raschig Ring, the Pall Ring has similar cylindrical dimensions but has two rows of punched out holes,which significantly increases the performance of the packing, efficiency and pressure drop.
Application : (a)Liquid extraction
(b)Isolation ,absorption
(c)Gas scrubbing
Advantage: (1)Lower pressure
(2)big flux
(3)high efficiency
Material : PP ,PE ,PFA ,ETFE ,PVDF ,PVC,SS304,SS316 ,SS316L ...
Technical Data sheet :
Item | Material | Model | Size | Number per volume | Surface area | Void Volume |
mm | pcs/m3 | m2/m3 | % | |||
Pall ring | stainless steel | 16 | 16*16*0.4 | 185200 | 2239 | 0.92 |
25 | 25*25*0.6 | 51920 | 219 | 0.93 | ||
38 | 38*38*0.8 | 13850 | 129 | 0.94 | ||
50 | 50*50*1 | 6500 | 118 | 0.94 | ||
Plastic | 16 | 16×16×1 | 180500 | 188 | 91 | |
25 | 25×25×1.2 | 49800 | 175 | 92 | ||
38 | 38×38×1.4 | 13800 | 157 | 89 | ||
50 | 50×50×1.5 | 6300 | 93 | 90 | ||
76 | 76×76×2.6 | 1850 | 75 | 92 |
