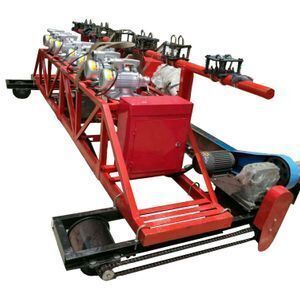

Concrete roller paver screed paving machine road self leveling machinery for roads construction

Supplier: Shandong Nuoman Engineering Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms yolanda li
Price: $2589.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model:	Hydraulic Paver;	Key words:	Asphalt Concrete Paver;
Engine Brand:	other;	Place of Origin:	Shandong China;
Condition:	New;	Dimension(LWH):	30001800720mm;
Application:	Straight Road Paving;	Weight:	450-700kg;
Packaging Detail:	container shipping for concrete road roller paver laying machine;	Max. Paving Thickness:	320mm;
Color:	Red;	Rubber Paver:	Rubber Paver;
Power(W):	28KW;	Type:	Vibratory Road Paver;
After-sales Service Provided:	Engineers available to service machinery overseas;	Product name:	Road Paver Leveling Machine;
Name:	Road Paver;	Warranty:	1 year;
Payment Terms:	L/C,D/A,D/P,T/T;	After-sales Service Provided:	Video technical support,Online support,Free spare parts;
Production Capacity:	700 T/h;	Brand Name:	Nuoman;
Port:	Qingdao Shanghai Tianjin Guangzhou;	Engine:	Electric Motor;
Supply Ability:	236 Set/Sets per Month;	Certification:	ISO;
Applicable Industries:	Construction works ;

Product Description

Product Application

Mainly used for road paving leveling. Suitable for paving, leveled, vibrated, pulp, leveling of high grade highway, airport runway, rural roads and other projects. Double motor design, responsible for walking in front of the motor, responsible for leveling vibration at the back of the motor. The steel pipe is divided into seam and seamless steel tubes, and the steel pipe diameter can be divided into 219mm and 165mm.

SPECIFICATIONS FOR CONCRETE PAVER LAYING MACHINE
Commonly paving width(m)	4
Max paving width(m)	13
Max paving thickness(mm)	320
Paving speed(m/min)	0-18
Walk speed(km/h)	0-2.6
Commonly working efficiency(t/h)	700
Engine power(KW)	28
Grade ability	25%
Planeness	1.5mm/3m
Cross slope error	±0.02

Main Features

1. The characteristics of seamless steel tube with thick steel pipe are not welded, not collapse, not deformation.
2. Operation lever control, one can operate, simple and convenient, save labor.
3. The motor adopts the national standard pure copper core motor.
4. High vibration frequency of the eccentric shaft, the chamber effect is good.

Detailed Images

Our Service

We have an independent factory, with 12 years of independent r & d production experience
Strict quality control system, each product will exceed 12 hours of quality inspection, to ensure product quality
We have a professional after sales team, 24 hours online for you to solve any product question
Support products to customize, can be tailored according to your requirements
Fast shipment, safe packing, ensure the goods are in good condition and timely delivery to you

Packing & Delivery

FAQ

1.Q: How can I make the payment?
Sample orders 100% T/T in advance. If mass order, T/T L/C are acceptable.
2. Q: Can I order mix order?
Yes.
3. Q: How long of the warranty period?
1year
4. Q: How can i believe you and your factory?
A:Since it is not the little thing to purchase machine, you can come to China to visit us for an inspect, and we will welcome you enthusiasm. so we can establish good cooperation with each other.
Reply you in 24 hours, if you are urgent, we can reply you soonest.
