Product Details

port:	Ningbo	Video external inspection:	Not available
weight:	12.7 kg	Mechanical test report:	Not available
place of origin; place of origin:	China	Supply capacity:	100,000 units per month
Core Components Warranty:	1 year	payment terms:	Western Union, wire transfer
Health status:	new	Core components:	engine
Unique Selling Points:	High operating efficiency	Applicable industries:	construction project
Marketing Type:	normal product	Packaging Details:	carton
Showroom location:	not any	Warranty:	1 year
Engine Brand:	Deutz

Product Description

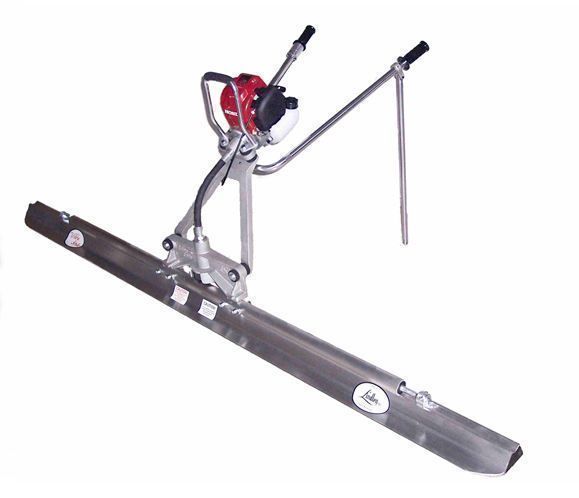

Concrete leveling,Simple operation and low maintenance design screed, Powered by a 4-strike gasoline engine that provides even vibration and enhanced concrete compaction over the entire blade length, Concrete can be leveled up to 4 times more accurately than traditional methods.
feature:
1. Special design, Hardened aluminium blades ensure a smoother finish than conventional screeds
2. Heavy duty rubber mounts to reduce vibration levels on the handle
3. Height, vertical and horizontal position adjustable handle (optional)
4. The rounded end of the blade makes it easy to get around obstacles
5. Tilt stand keeps engine away from concrete or ground when not in use
6. One-piece cast body, easy to connect to the engine
7. Provide emergency stop switch
8. Different working widths: 4ft/1.2m 6ft/1.8m 8ft/2.4m 10ft/3.0m 12ft/3.7m 14ft/4.3m
16 feet / 4.9 meters
9. Easy blade replacement
Technical Specifications

without blade KCD-2 and KCD-4 with adjustable handle
Model	KD-2	KD-4
engine	Air cooling .2 cycle	Air cooling 4 cycles
engine type	Chinese gasoline engine	Gasoline Honda GX35
Power kilowatts (horsepower)	1.4(1.9)	1.1(1.5)
Weight kg (lbs)	12.7 (28.0)	12.7 (28.0)

Blade weight
The total weight of the machine should be the weight of the engine assembly plus the weight of the blades.
Blade size m	1.22	1.8	2.44	3	3.66	4.47	4.88
Weight kg	2.9	4.36	5.81	7.27	8.72	10.16	11.61
