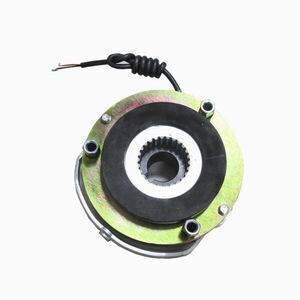

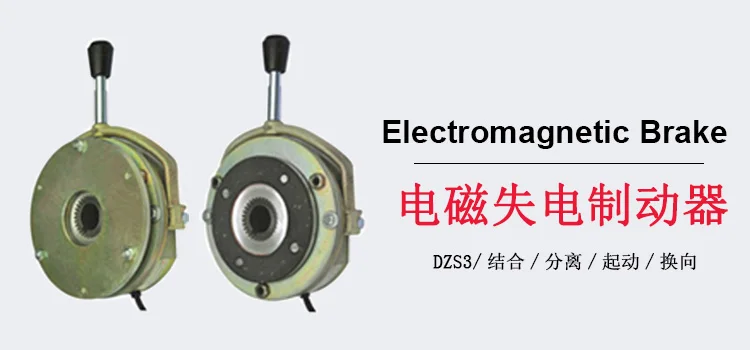

DZS3 Electromagnetic Brake Electric Clutch
- 30.00 >=2 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Shanghai; | Place of Origin: | Jiangsu China; |
| Payment Terms: | L/C,T/T,Western Union,PayPal; | Brand Name: | TIANNIU; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; | Packaging Detail: | carton box or wooden case; |
| Supply Ability: | 100000 Piece/Pieces per Month; | Product name: | DZS3 Electromagnetic Brake Electric Clutch; |
Product Description
Technical Parameter

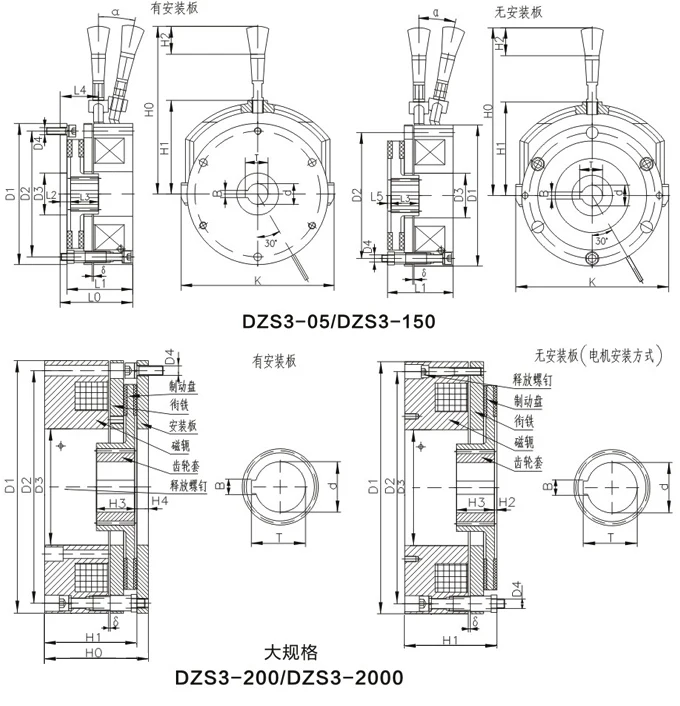

Size and Installation Size
Item (NM) | Motor No. | d | B | T | D1 | D2 | D3 | D4 | L0 | L1 | L2 | L3 | L4 | L5 | H0 | H1 | H2 | K | δ | α |
| DZS3-05 | YEJ71 | 14.8 | 5 | 16.2 | 101 | 90 | 30 | 3-M5 | 42 | 37.5 | 7.5 | 20 | 25.3 | 2.5 | 120 | 67 | 20 | 110 | 0.3 | 12° |
| DZS3-08 | YEJ80 | 19.8 | 6 | 22.6 | 118 | 105 | 40 | 3-M5 | 44.5 | 38.5 | 9 | 20 | 25.3 | 3 | 135 | 75 | 20 | 124 | 0.3 | 12° |
| DZS3-15 | YEJ90 | 24.8 | 8 | 28.1 | 128 | 114 | 48 | 3-M6 | 63.5 | 55.5 | 11 | 25 | 31.9 | 3 | 141 | 81 | 20 | 137 | 0.4 | 10° |
| DZS3-30 | YEJ100 | 29.5 | 8 | 32.8 | 147 | 133 | 57 | 3-M6 | 63.5 | 55.5 | 10.5 | 30 | 32.4 | 2.5 | 169 | 92 | 20 | 155 | 0.4 | 10° |
| DZS3-40 | YEJ112 | 29.5 | 8 | 32.8 | 166 | 150 | 57 | 3-M8 | 64.5 | 56.5 | 10.5 | 30 | 35 | 2.5 | 189 | 102 | 25 | 172 | 0.5 | 8° |
| DZS3-80 | YEJ132 | 39.5 | 12 | 42.8 | 187 | 170 | 69 | 3-M8 | 74.5 | 64.5 | 12.5 | 30 | 37 | 2.5 | 234 | 115 | 25 | 191 | 0.5 | 8° |
| DZS3-150 | YEJ160 | 44.5 | 12 | 47.8 | 222 | 202 | 79 | 4-M10 | 79 | 67 | 14.5 | 35 | 39.6 | 2.5 | 345 | 135 | 25 | 224 | 0.6 | 8° |
Size and Installation Size (Big type)
+
| Item(NM) | Motor No. | d | B | T | D1 | D2 | D3 | D4 | H0 | H1 | H2 | H3 | H4 | δ |
| DZS3-200 | YEJ180 | 49 | 14 | 52.8 | 265 | 244 | 122 | 4-M10 | 108 | 96 | 4.5 | 40 | 16.5 | 0.6 |
| DZS3-300 | YEJ200 | 59 | 18 | 63.4 | 310 | 280 | 132 | 4-M12 | 122 | 110 | 3.5 | 50 | 15.5 | 0.8 |
| DZS3-450 | YEJ225 | 65 | 18 | 69.4 | 330 | 300 | 142 | 4-M12 | 128 | 114 | 3.5 | 56 | 17.5 | 0.8 |
| DZS3-600 | YEJ250 | 65 | 18 | 69.4 | 380 | 350 | 142 | 4-M16 | 149 | 133 | 4 | 56 | 18 | 0.8 |
| DZS3-850 | YEJ280 | 68 | 20 | 72.9 | 422 | 390 | 150 | 6-M16 | 150 | 134 | 4 | 62 | 18 | 1 |
| DZS3-2000 | YEJ315 | 80 | 22 | 85.4 | 580 | 550 | 240 | 6-M16 | 160 | 140 | 7.5 | 62 | 27.5 | 1.2 |
Response time
+
| DZS3 item (NM) | 5 | 8 | 15 | 30 | 40 | 80 | 150 | 200 | 300 | 450 | 600 | 850 | 2000 |
Connect (release) time ( | 55 | 75 | 95 | 120 | 130 | 140 | 180 | 210 | 250 | 270 | 285 | 320 | 375 |
Break (braking) time ( | 63 | 87 | 110 | 140 | 152 | 165 | 214 | 252 | 303 | 359 | 385 | 435 | 495 |
Packaging & Shipping
Company Information
Certifications
Clients Visit
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
