Non- ferrous Metal Products Plating Machine/PVD machine for Copper,Aluminum,Zinc,Magnesium etc/Vacuum Plating Equipment PYVAC

Product details
Place of Origin:Jiangsu China;Condition:New;
Certification:CE SGS ISO9001;Control system:Manual/Full-Automatic;
Voltage:220V/380V;Brand Name:PYVAC;
Vacuumizing Speed:5*10-3Pa<15min;Name:Non- ferrous Metal Products Plating Machine;
Coating Field:Stainless steel word/stainless steel plating Titanium;Ultimate Vacuum:5*10-4Pa;
Character:Could improve the hardness,wear resistance,corrosion resistance;Packaging Detail:20ft or 40ft container for vacuum coating equipment. Non- ferrous Metal Products Plating Machine/PVD machine for Copper,Aluminum,Zinc,Magnesium etc/Vacuum Plating Equipment PYVAC;
Model Number:HL Series;Dimension(L*W*H):Customized;
Supply Ability:20 Set/Sets per Week Non- ferrous Metal Products Plating Machine/PVD machine for Cop;Pumps:Diffusion Pump;
Port:Shanghai Port;Weight:3-4 Tons;
Warranty:1 Year;Delivery Detail:Shipped in 25 days after payment;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Non- ferrous Metal Products Plating Machine/PVD machine for Copper,Aluminum,Zinc,Magnesium etc/Vacuum Plating Equipment PYVAC;After-sales Service Provided:Engineers available to service machinery overseas;
Equipment:Multi-Arc Ion Vacuum Coating Machinery;Chamber material:Stainless steel or Carbon steel;
Model:HL-600/HL-800/HL-1000/HL-1200/HL-1400/HL-1500/HL-1600;Power(W):380v 220v;

Kunshan Puyun Vacuum Technology Engineering Co.,Ltd

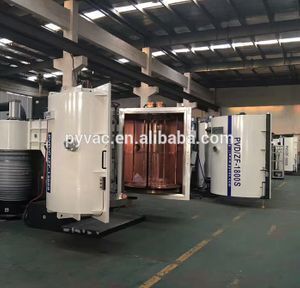

HL Series Multi-arc Ion Vacuum Coating Machine






Operational principle:

The working principle of HL Series Multi-arc Ion Vacuum Coating Machine is that the vacuum arc discharge technology is used in evaporation source that the evaporation source (cathode) is ignited in vacuum environment, and the self-sustaining arc discharge is formed between the anodes that cathode material ions are released from the cathode arc bright points. Since the current partial concentration, the Joule heat generated in the cathode material locally explosively into plasma, compounding with the reaction gas under the action of biasing the work piece, and the coated layer is formed by depositing on the surface of the work piece.





Applications:
1. Watch & Clock industry (strap, case, dial, etc.)
2. Hardware industry (sanitary ware, door handles, handles, locks, etc.)
3. Construction industry (stainless steel plates, stair railing, columns, etc.)
4. Precision industry (punch standard mould, forming mould, etc.)
5. Tool industry (drill bits, hard alloy, milling cutters, broaches, tool bits)
6. Automobile industry (pistons, piston rings, alloy wheels, etc.) as well as pens, glasses, etc., so that the surface is obtained with both beautiful and functional wear resistant layer. Main coated film layer are: gold ions, silver ions, titanium nitride film, titanium carbide film, a zirconium nitride film, a titanium aluminum alloy film, chromium nitride film, RP coated film and other super-hard functional metal film. The ion coated work piece after processing can improve the roles of hardness, wear resistance, corrosion resistance, and beautification.
7. Non-ferrous metal products (such as copper, aluminum, zinc, magnesium, etc.) directly coated film without water coating.





Features:
1.It is equipped with a low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.
2. It has a high deposition rate, a fast speed in coating film and the wide covering areas. It can be coated with all kinds of decorative film or functional film on a variety of products, and is the best equipment in mass production of high-end products.







Technical Parameters:

  Model

  HL-600

  HL-800

  HL-1000

  HL-1200

  HL-1400

  HL-1500

   HL-1600

vacuum chamber dimensions

φ600X800MM

φ800X1000MM

φ1000X1200MM

φ1200X1400MM

φ1400X1600MM

φ1500X1500MM

φ1600X1800MM

vacuum system

KT400

Diffusion

pump unit

KT500

Diffusion pump unit

KT500

Diffusion pump unit

KT630

Diffusion pump unit

DoubleKT630

Diffusion pump unit

DoubleKT630

Diffusion pump unit

DoubleKT630

Diffusion pump unit

Coating system

For many arc coating power target + + multi-function twin circular arc cylindrical arc target (optional)

Coating auxiliary system

The low temperature ion secondary sources (except tool plating without heating system)

Inflation system

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Mass flowmeter

Control mode

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Pumping rate

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

5X10-3Pa<15min

 Ultimate vacuum

5X10-4Pa

5X10-4Pa

5X10-4Pa

5X10-4Pa

5X10-4Pa

5X10-4Pa

5X10-4Pa

    Remarks

Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design

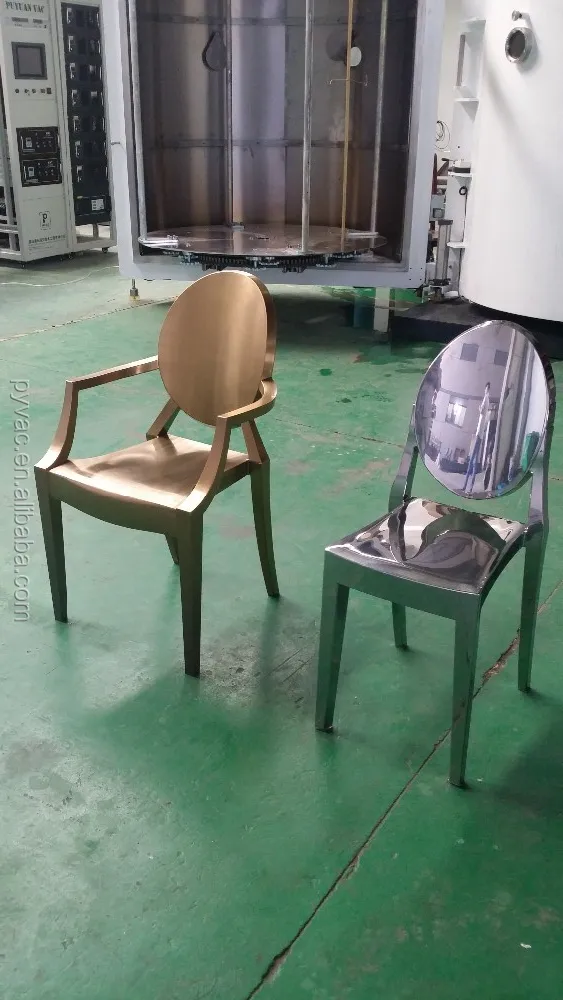

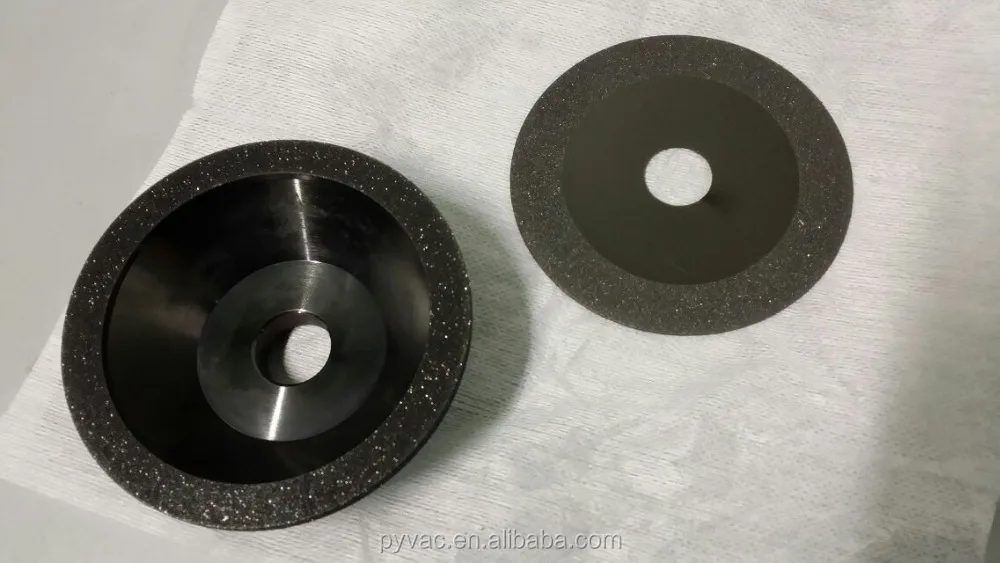

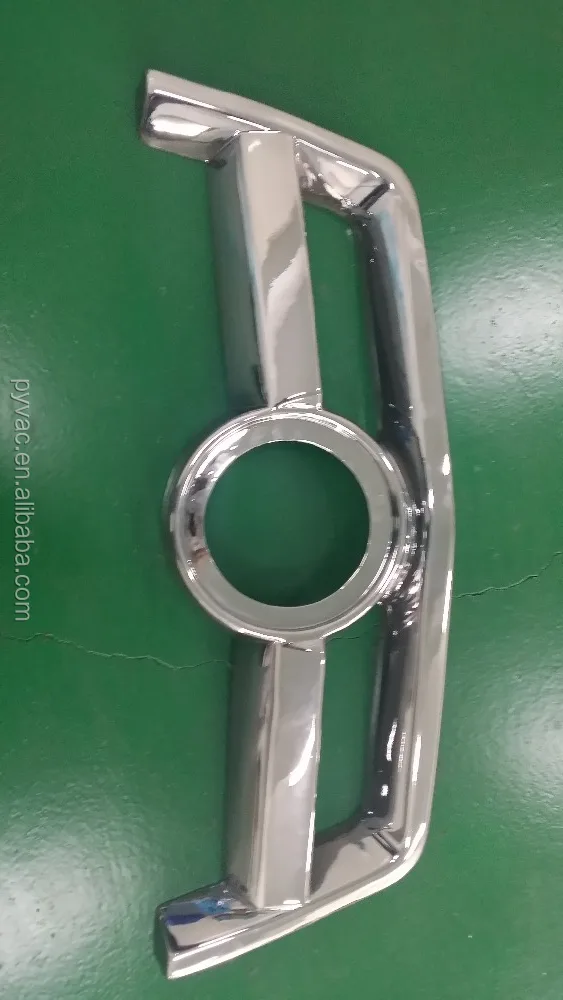

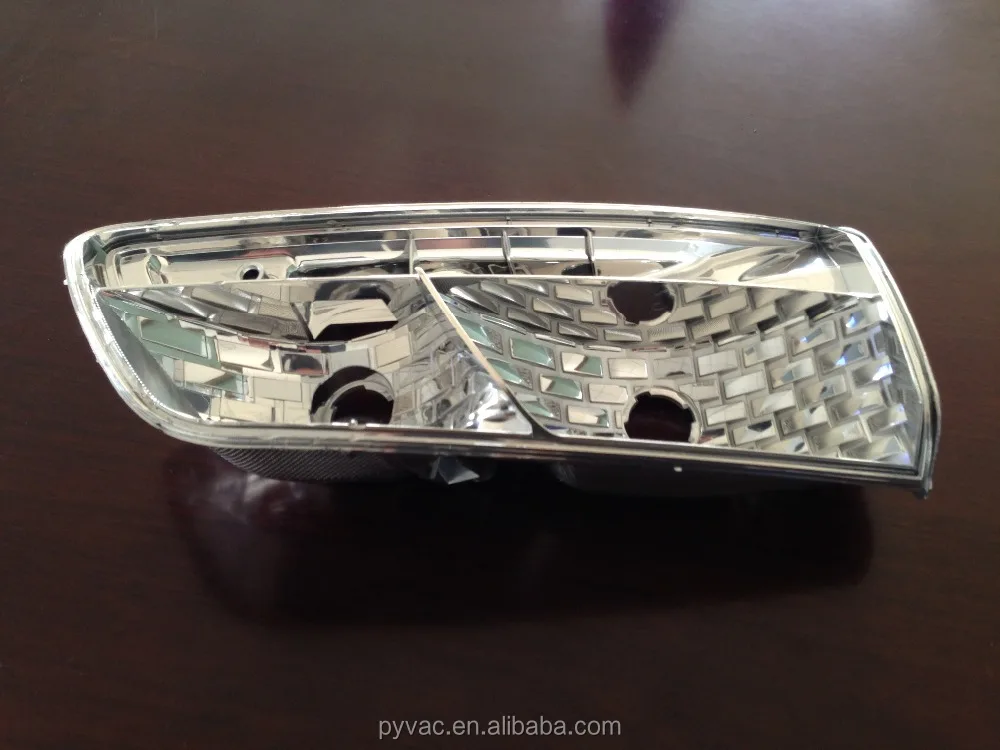

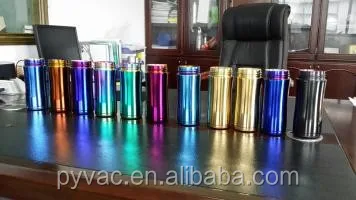

Coating Products:



























Dear friends:


Every machine is customized by customers' detailed requirements,pls discuss your demands with me in order to help me to quote you the suitable quotation!



When you send us a inquiry, in order to design the most suitable machine for your project, please inform me the following questions in your letter:

1. What is your product, its material and application

2. What is the possible max. size of your product

3. What is your desired productivity per 8 hours/shift.



4, What material do you to coating on your products ? Any color requirements ?

The answers to the above question will help us a lot on designing or do the recommendation.

Pls send the inquiry at the bottom of this page.











Welcome to visit Puyuan Vacuum Company and waiting for your cooperation,thank you!
