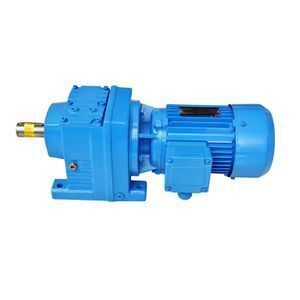

Helical gearing arrangement speed reducer gear box

Supplier: Pingyang Jinge Imp. & Exp. Co., Ltd.
Region: Zhejiang, China
Contact: Mr Gavin Chen
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

OEM service:	available;	Input format:	IEC flange, direct with motor, shaft input;
Port:	NINGBO/SHANGHAI;	Input Speed:	650-3360RPM;
Material of housing:	HT250 cast iron;	Place of Origin:	China;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining,engineering & service;	Supply Ability:	2000 Set/Sets per Month;
Application:	packing machine, food process, lift, crane, agitator, feeder;	Material of gear:	20CrMnTi with high precision grinding;
Warranty:	12months;	Output Speed:	0.5-1500RPM;
gear surfcae finishing:	between16.-3.2μm;	Output Torque:	85-18000NM;
Lubricant:	Shell Omala220 or equivalent;	Brand Name:	KINGEAR;
Packaging Detail:	wooden case, plywooden case with pallet;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Gear Ratio:	any ratio custom made;	Gearing Arrangement:	Helical;
Material of shaft:	40Cr with carburizing and quenching;

Product Description

Based on modular combined system, we design and develop all kind series gear motor, which is the most common and advanced transmission device nowadays among international power transmission industry, with our strict quality criteria and quality control, we try our best to provide Germany standard and quality gearboxes with low cost, replace their product in the field of drive engineering.

SPECIFICAITON

Housing material	High-strength cast iron HT250
Gear material	20CrMnTi
Input Power	0.12-200KW
Output Torque	3.5-21700N.m
Output Speed	5-371 RPM
Gear Accuracy	7 to 6 level
Gear Surface hardness	HRC58°-62°
Input/Output shaft hardness	HB220-250
Noise(Max)	60-70dB
Tem.rise(Max)	40°C
Tem.rise(Oil Max)	50°C
Vibration	≤20um
Backlash	≤20Arcmin
Effeciency	Single stage 98%, Double-stage:96%, Three-stage:94%
Mounting Position	Foot / Flange Mounting
Motor	IP55,F Class
