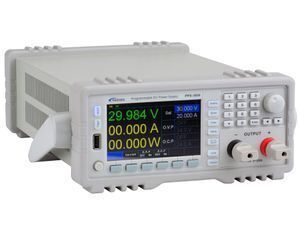

36V 25A Programmable Switch Mode DC Power Supply TFT LCD Display High Precision Power Supply PPS-3625

Supplier: Twintex Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily CHEUNG
Price: $250.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Double-Layer cartons;	Feature 1:	List mode function, Remote sense function;
Port:	SHENZHEN or HONG KONG;	Output Current:	0~25A;
Program Interface:	USB Host, RS232, RS485, support SCPI & ModBus-RTU;	Feature 2:	300 sets save & recall;
Payment Terms:	L/C,T/T,Western Union;	Resolution:	1mV/1mA;
Input Voltage:	220Vac;	Output Voltage:	0~36V;
Output Power:	900W;	Supply Ability:	1000 Piece/Pieces per Month;
Ripple/Noise:	2mV/10mArms;	Application:	Laboratory use, ATE System use;
Feature 3:	Lithium Battery charge mode;	Protections:	OVP, OCP, OTP, reverse polarity protections;
Brand Name:	TWINTEX;	Certification:	CE ROHS;
Model Number:	PPS-3625;	Place of Origin:	China;

36V 25A Programmable Switch Mode DC Power Supply TFT LCD Display High Precision Power Supply PPS-3625

Introduction
PPS series are high accuracy programmable DC power supply with single output. MPU control, RS-232/RS-485/USB interface for PC control, the PPS series facilitates auto test and auto control. The commands of the PPS series are compliant with SCPI commands. Users can easily develop programs to facilitate different applications in auto test and auto control. Users can also store or recall data via the USB host on front panel.
The 4.3-inch TFT LCD display gives full display for parameters and output waveforms. Digital input fulfilled by rotary dial and keypad input makes input fast and accurate. Voltage and current regulations by software, avoids human error and makes the PPS series more accurate.

Features
High accuracy, high resolution
Over load, over voltage, over current, over temperature and reverse polarity protections
Constant voltage and constant current operations, auto CV and CC switch
4.3-inch TFT LCD display
High speed rotary dial and keypad input
Built-in beeper alarm
Panel lock and output ON/OFF function
List mode function, 300 sets save & recall for voltage, current and time setups, easy use in auto test
Remote sense function
Display load resistance value
Battery charge mode
Standard USB host interface for data storage and recall from external USB flash driver
Standard RS-232 interface, support SCPI commands, support Labview
Standard 0-5V analog control
Optional RS-485 interface, support Modbus
Optional RS-232 to USB cable

Specifications

Model		PPS-1560	PPS-2045		PPS-3030		PPS-3625	PPS-4520
Rated output (0℃~40℃)
Voltage		0~15.5V	0~20.5V		0~31V		0~36.5V	0~45.5V
Current		0~60.5A	0~45.5A		0~31A		0~25.5A	0~20.5A
Power		0-900W	0-900W		0-900W		0-900W	0-900W
O.V.P		0.1~18V	0.1~24V		0.1~34V		0.1~40V	0.1~55V
O.C.P		0.1~62 A	0.1~50A		0.1~34A		0.1~27.5A	0.1~22A
Constant Voltage Operation
Line regulation		≤0.01%+4mV
Load regulation		≤0.1%+5mV
Ripple & Noise (20Hz~20MHz)		≤2mVrms, 30mVpp
Recovery time		≤1.5ms (50% load change)
Temperature Coefficient		≤100ppm/℃
Constant Current Operation
Line regulation		≤0.2%+3mA
Load regulation		≤0.2%+5mA
Ripple & Noise		≤10mArms
Display
Voltmeter		5 digits LCD display
Ammeter		5 digits LCD display
Setting resolution		1mV/1mA
Reading resolution		1mV/1mA
Setting accuracy (25±5℃)	Voltage	±(0.03% of reading + 10mV)
	Current	±(0.1% of reading + 0.1% of FS)
Reading accuracy (25±5℃)	Voltage	±(0.02% of reading +5mV)
	Current	±(0.1% of reading + 0.1% of FS)
General
Protection		Over load, over voltage, over current, over temperature and reverse polarity protections
Panel lock		Provided
Remote sense function		Maximum compensation voltage 5% of FS
Battery charge		Lithium battery curve charge
Interface		RS232 interface, Support SCPI commands
		0-5V analog control
		Optional RS485 interface, support ModBus
		Optional RS232 to USB cable
Memory		300 sets internal save, support save to USB flash driver
Insulation		Between base and terminals: ≥20MΩ/500VDC Between base and AC line: ≥30MΩ/500VDC
Operating environment		Indoor use		Altitude: ≤2000m		Ambient temperature: 0~40℃
		Relative humidity: ≤80%		Installation category: II		Pollution degree: 2
Storage environment		-10℃~70℃, ≤70%RH
Power source		AC220V±10%, 50/60Hz
Accessories		Power cord x1, Operation manual x1, RS232 cable x1, Software CD x1
Dimension (WxHxD)		215x89x412mm
Weight		5.5kg
