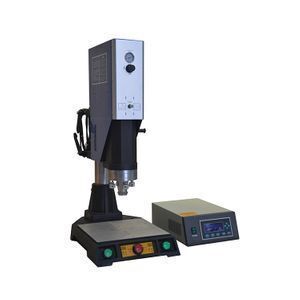

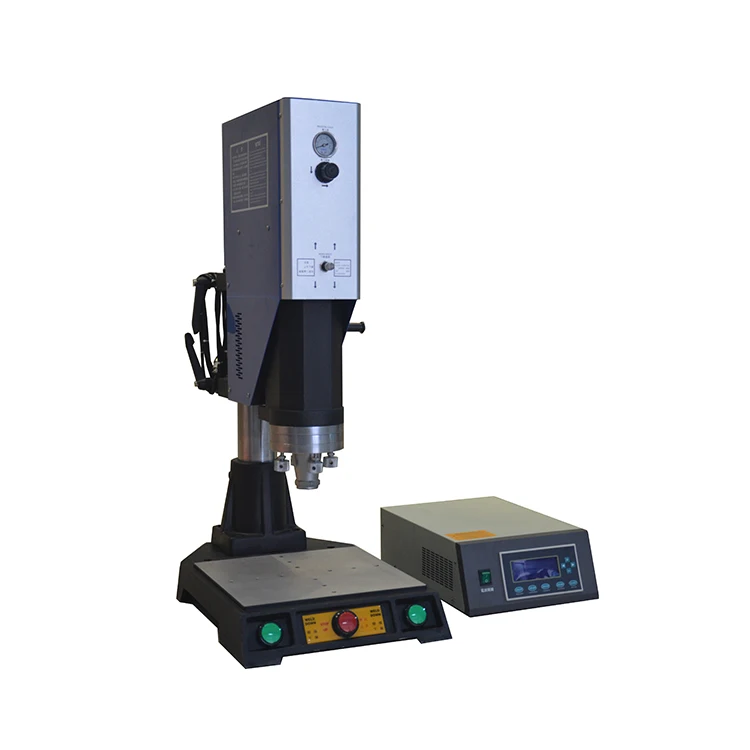

Plastic and Non-woven material products industrial ultrasonic welding machine

Supplier: Dongguan Strong Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms coco liao
Price: $1250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Welding time:	0.1-3s;	Welding Area:	customizable;
squeeze time:	0.01-3s;	Power:	2000W;
welding material:	ABS PP PC;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimensions:	396597cm;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Port:	Shenzhen;	Frequency:	20KHZ;
hold time:	0.1-3s;	capacity:	10-20times/min;
Place of Origin:	Guangdong China;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Voltage:	220v;	Warranty:	1 year;
customizable:	yes;	Weight:	90KG;
Usage:	Product welding;	Brand Name:	Strong;
Packaging Detail:	1.Regular packaging:wooden case 2.According to customer requirements;	Supply Ability:	200 Set/Sets per Month;
working air pressure:	4-6kg/cms;

Product Description

♦Fully automatic frequency , suitable for various sizes of welding die and different design mold, automatic tracking frequency range:±400HZ

Example: 15KHZ ultrasonic, mold frequency in 14.4-15.2KHZ can Automatic frequency traceability

♦The use of CPU computer to monitor various programs is fast and adaptable. The built-in protection system "system protection monitoring" function will respond to the following situations: the temperature is too high and the pressure is too high, which leads to overload. Excessive current of ultrasonic generator, loosening of solder head, transducer or transducer, failure of generator circuit, etc.

♦Automatic tuning enables the ultrasonic generator to automatically track and compensate for changes in welding head frequency. When the temperature is too high, wear on the surface of the welding head or debris on the head, this frequency change will occur.

♦Built-in automatic constant amplitude system. The ultrasonic amplitude can be adjusted from 50% to 100% stepless to adapt to different welding work.

♦With IGBT, the reaction speed is 100 times faster than that of traditional silica gel power tube.

Model	QJ-1526AZ	QJ-1532AZ	QJ-1542AZ
Frequency	15khz	15khz	15khz
Power	2600W	3200W	4200W
Voltage	220V	220V	220V
Capacity	10-20times/min	10-20times/min	10-20times/min
Driving form	pneumatic	pneumatic	pneumatic
Electricity	AC	AC	AC
Control mode	numerical contro	numerical contro	numerical contro
Working air pressure	4-6kg/cms	4-6kg/cms	4-6kg/cms
Weight	90KG	90KG	120KG
Dimensions	396597 CM		76100195CM
