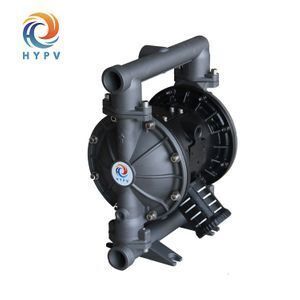

HAOYANG HY Diaphragm Pump/Submersible Water Low Pressure Pump

Supplier: Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Ms Yolanda Zhou
Price: $458.00 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Standard or Nonstandard:	Standard;	Packaging Detail:	Carton packing with foam;
Brand Name:	Haoyang;	Product name:	Submersible Water Pump;
Place of Origin:	China;	Structure:	Diaphragm Pump;
Application:	Acid and alkali Chemical Food;	Pressure:	Low Pressure;
Fuel:	air operated;	Theory:	Diaphragm pump;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	800 Set/Sets per Month;
Power:	Pneumatic;	Port:	Shanghai;
Usage:	Chemical Coating Water treament etc.;	Model Number:	HY50-AL;

HY Diaphragm Pump/Submersible Water Low Pressure Pump

Product Description

HY Air-Operated Diaphragm Pum Features

Pneumatic Diaphragm Pump Advantages:

Idling ,Self-priming , Submerse capability.

Provide stall-free, ice-free zero leak operation.

Epoxy-coated air section for tough environmental conditions.

Low shear force , not easy to damage the material structure.

Bolt joint design provides even sealing pressure for optimal performance

Modular air valve,low pulsation operation,providing smooth and rapid changeover.

No electricity . It's safe and realiable while using in the flammable and explor place .

Diversity of material,no rotating parts,applicable to various erosive situations.

Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.

Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.

HY air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability,HY’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

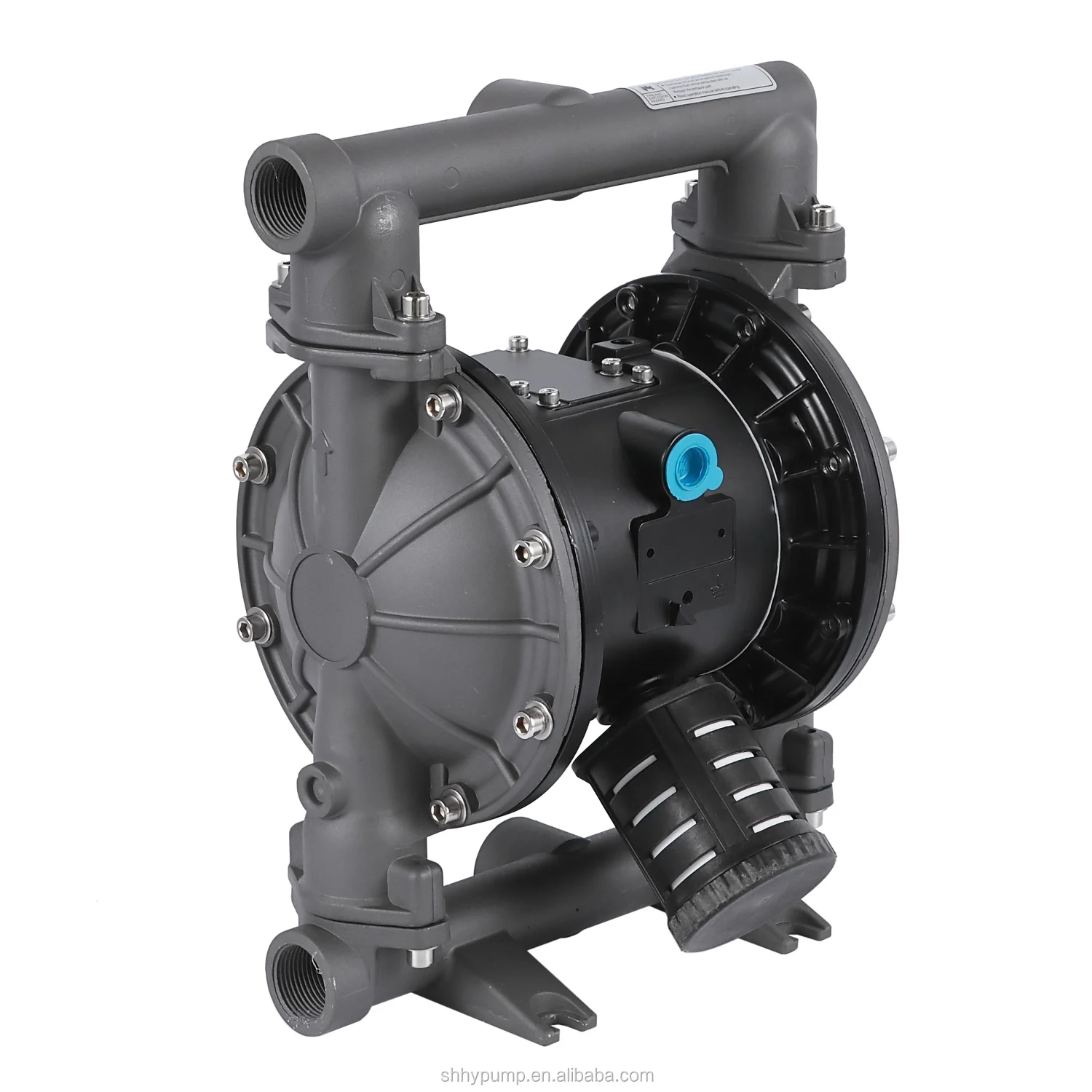

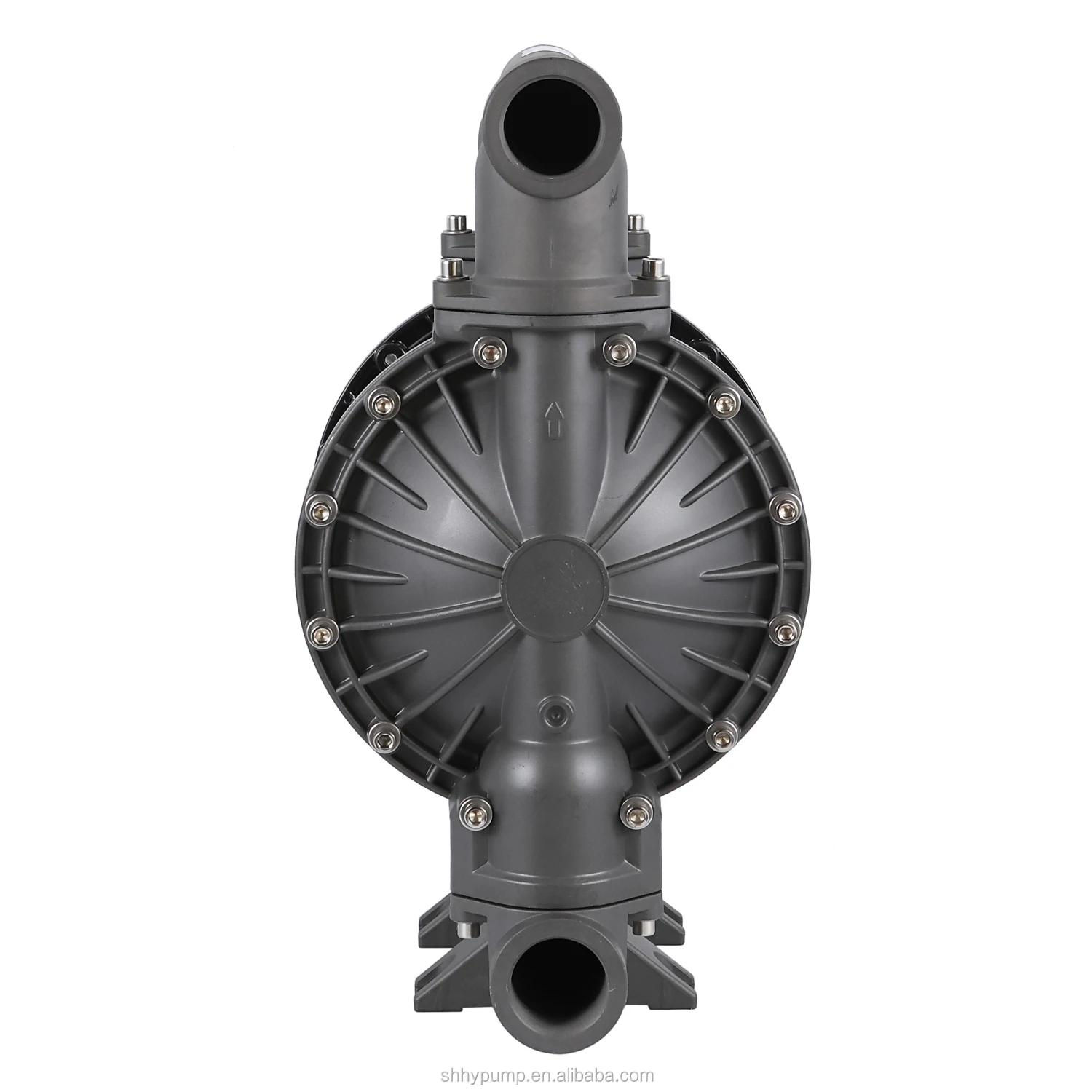

HY Air-operated Diaphragm pump Detail

Mark No	Special Parts	Function Description
1	Diaphragm	Supply seven types of diaphgram
2	Inlet	Inlet and outlet dimension from 1/4'' to 3''
3	Bottom Connection	Two bolts connection design ,good seal
4	Valvae Ball	Optional materials for valve ball and diaphragm
5	Threaded Connection	Flange connection and threaded connection can be provided

APPLICATION

HY Air-Operated Diaphragm Pump Application

HY AODD Pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.

1.The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various sewage water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.

Installation

HY Air-Operated Diaphragm Pump Installation

HaoYang AODD pumps are suitable for an endless variety of applications . Our pumps can be deployed in fixed installations within a process flowsystem, or used as portable or mobile units that can be transported to where it is to be used.


Pump, self-priming HY AODD pumps are dry self-priming. Depending on the pump specification a suction lift of up to 8 m	Pump with positive suction Depending on the pump type, the suction side inlet pressure may need to be limited to a max. pressure

Pump, submerged HY AODD pumps can be totally submerged in the pumped medium. The exhaust outlet must remain above the fluid level.	Pump for drums HY AODD pumps can be directly mounted on drums or containers.

Select guide

HY Air-Operated Diaphragm Pumps Selection

Technical parameters

Mode	Max.Suction Lift (dry\wet,m)	Max. particle diameter (mm)	Suction and discharge size (inch)	Air inlet size (inch)	Max. flow rate (L/min)	Max. air consumption (m³/min)
HY-15/20	4 \ 7.6	2.5	1/2 3/4	1/4	57	0.672
HY-25	4 \ 8	4	1	1/2	157	1.7
HY-40	5 \ 8	5	1½	1/2	358	3.5
HY-50	5 \ 8	6	2	1/2	587	4.9
HY-80	5 \ 8	9.4	3	3/4	1060	9.1

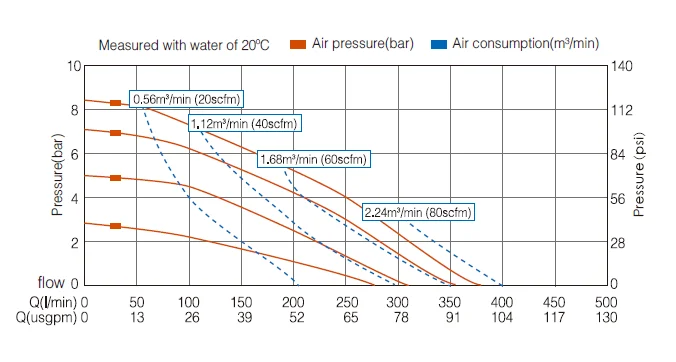

Model sheet

HY have attented China (Shanghai) International Architectural Coatings&Chemical Materials Expo and IE expo for several times, our product are highly recognized by customers

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.

3. Q: What about the package ?

A: Standard export plywood case or carton.

4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.

5. Q: The use of products have?

A: The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

The pump can suck the paint, pigment, glue and adhesive etc.

The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

The pump can suck various toxin and flammable or volatility liquid etc.

The pump can suck various strong acid, alkali and corrosive liquid etc.

6. Q: How product quality and service?

A: Our pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.

If you want to know more details, Please send inquiry to me,

We are very glad to hear from you !

Click " Send " Now!
