door Spindle Moulder Wood Shaper Woodworking furniture

Supplier: Qingdao Hongqiang Weiye Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy zhang
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HONGQIANG;	Payment Terms:	L/C,T/T;
Power(W):	4kw/5.5kw;	Port:	QINGDAO PORT;
Dimension(LWH):	16507001200mm;	Application:	Woodworking Machinery;
Applicable Industries:	Manufacturing Plant,woodworking machinery;	Condition:	New;
Place of Origin:	Shandong China;	Supply Ability:	100 Set/Sets per Month;
Product Name:	Woodworking Spindle Moulder Wood Shaper;	Shaft Number:	Single;
Voltage:	380V/50HZ/3PH;	COLOR:	White;
Weight:	300kg;	Certification:	CE ISO;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	IN PLYWOOD CASE;
Spindle diameter:	35mm;	Warranty:	One Year;

vertical milling machine

Packaging & Delivery

P pckaging Details: High quality plywood case, edges of the case are covered with iron plate, to ensure the steadility of case and can afford long distance marine transport

Delivery Time: Shipped in 7 days after payment

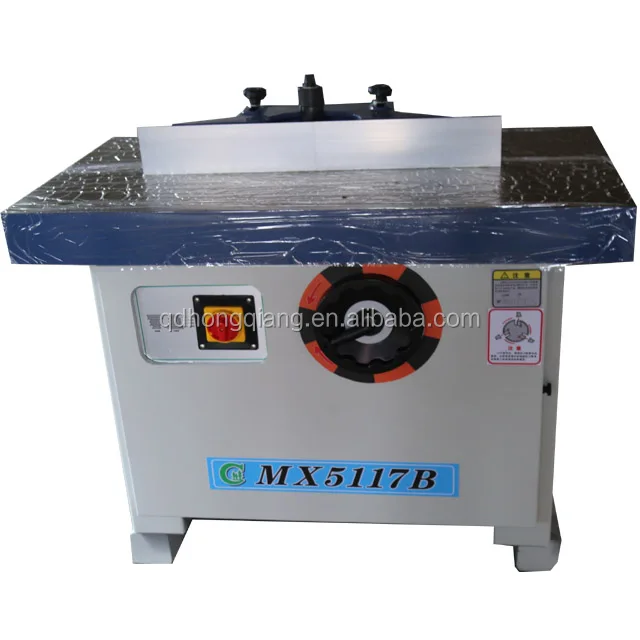

woodworking single- axle vertical spindle miller

Main Technical Data

Technical Specifications		MX5117B
Working table size	mm	1150*400
Movable table size	mm	1150*300
Max. milling height	mm	120
Arbor diameter	mm	35
Adjustable length of spindle	mm	120
Spindle speed	r/min	10000
Motor Power	kw	4
Weight of machine	kg	300
Overall dimensions(L×W×H)	mm	16507001200mm

Specifications

Our vertical milling machine is mainly used for woodworking.

Vertical Milling Machine Features:

1.Infeed and outfeed tables are made of precision ground cast iron

2.Side fence tilting locker for easy access and quick action

3.Cast iron sliding woktable

4.With quality electric part

5.Prodessing many kinds of materials

6.Processing the material in the shape what you want

7.Safty and high protection

8.Motor add over load protection

9.Beveling shaping

Services:

Pre-sale services:

1> Provide the free consultation of the equipment

2> Provide the standard device and the flow chart

3> According to the clients’ special requirement, offering the reasonable plan and free design helping to

select the equipment.

4> Welcome to visit our factory

Services during the sales:

1> Inspect the machine before leaving the factory.

2> Oversea install and debug the equipment.

3> Train the first-line operator.

After sale services:

1> 24 hours online service

2> Provide the VIDEO with Install and debug the equipment

3> Provide technical exchanging
