curved and inclined construction lift

Supplier: Langfang CABR Construction Machinery Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Cui Taigang
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rated Loading Capacity(kg):	0.6t~2t(optional);	Color:	Optional;
Packaging Detail:	Bare and wooden box into container;	Port:	Tianjin port;
Loder Weight:	0.6t~2t(optional);	Brand Name:	CABR/M;
Hoisting Speed:	0-60 M/min;	Dimension(LWH):	2.51.51.2(optional);
Delivery Detail:	25~45 days;	Place of Origin:	Hebei China (Mainland);
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,T/T;
Max Lifting Height:	200m;	Model Number:	SCQ60,SCQ120...;
Supply Ability:	600 Set/Sets per Year;	Condition:	New;

Product Description

Product Application

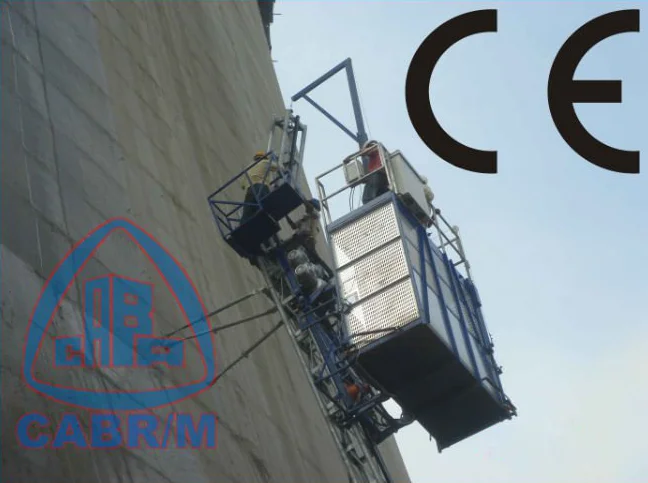

During construction of some special building, such as cooling tower of power station whose wall is hyperbolic type in vertical direction, traditional hoist can not satisfy personel and material transportation. Thus, our company, allying with Institute of Building Mechanization China Academy of Building Research, exploited the first curved construction lift in China.

1 for odd shaped exterior building
2 for chimney and cooling tower
3 patented product

Main Features

1.The track of this building hoist is in curved shape and parallel to the exterior of the
building by special processing.
2.It adopts floating self-leveling mechanism to make sure the hoist moves keeping level along the curved line. It has been a lightspot of special building construction.

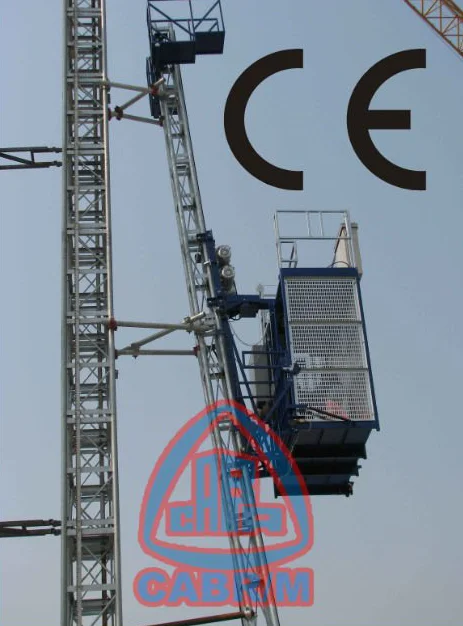

3.The inclined building hoist is applied to constructions with an inclined exterior..
4.The curved and inclined building hoists are widely used in such constructions as chimneys, cooling towers and bridges etc.

Model	Rated load (kg)	Lifting speed(m/min)	Adaptable angle
SCQ60	600	0~60m/min	-7°～+21°
SCQ120	1200	0~60m/min	-7°～+21°
SCQ160	1600	0~60m/min	-7°～+21°

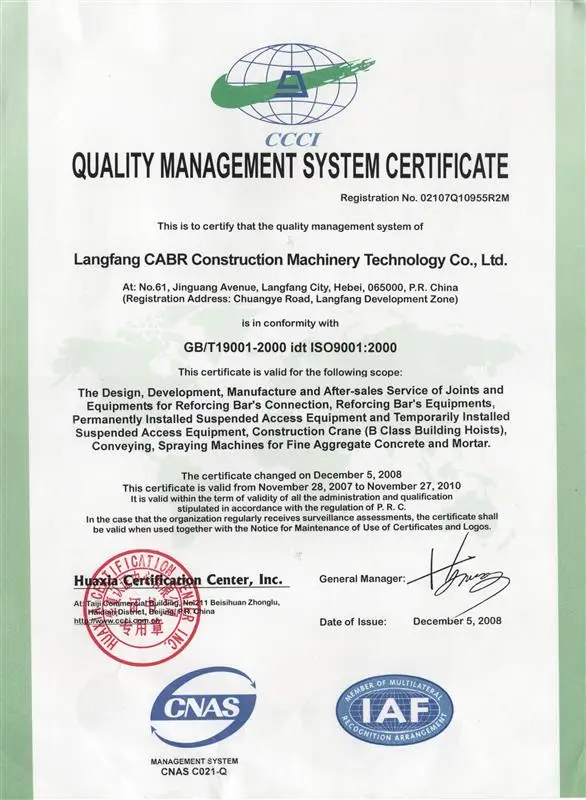

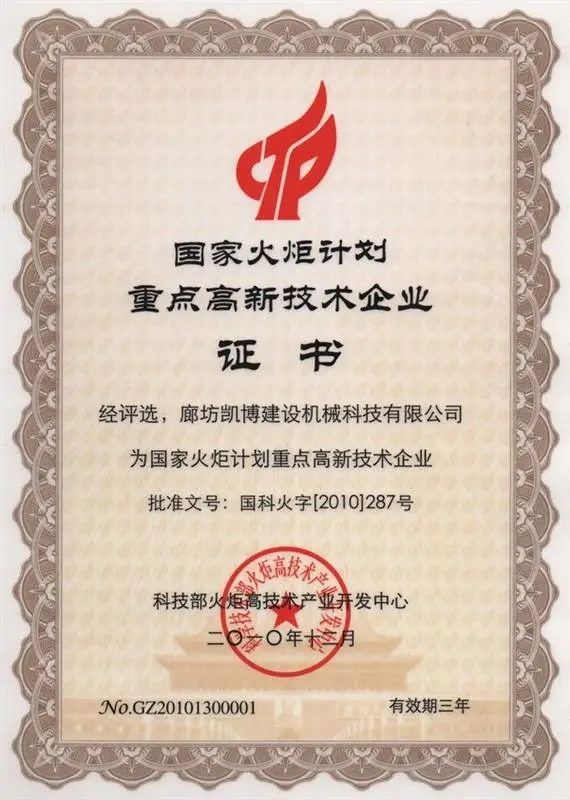

Certifications

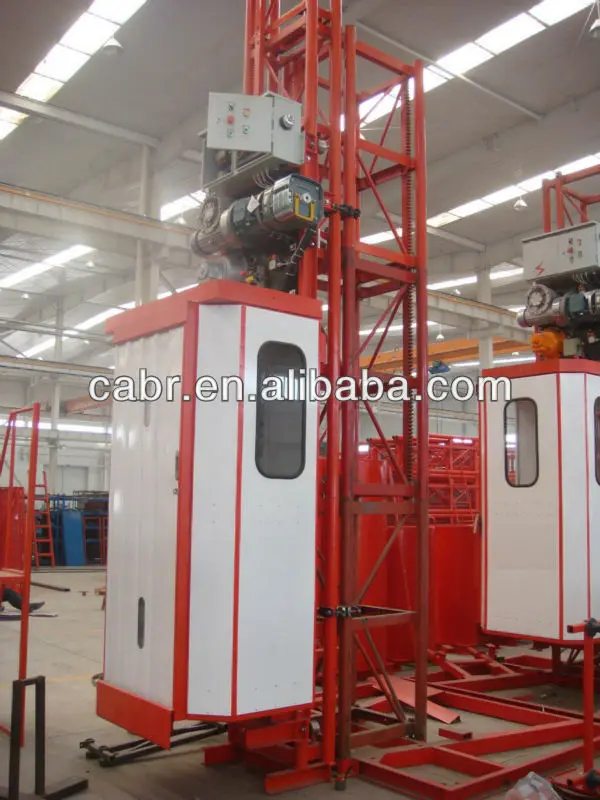

Detailed Images

Machine Parts

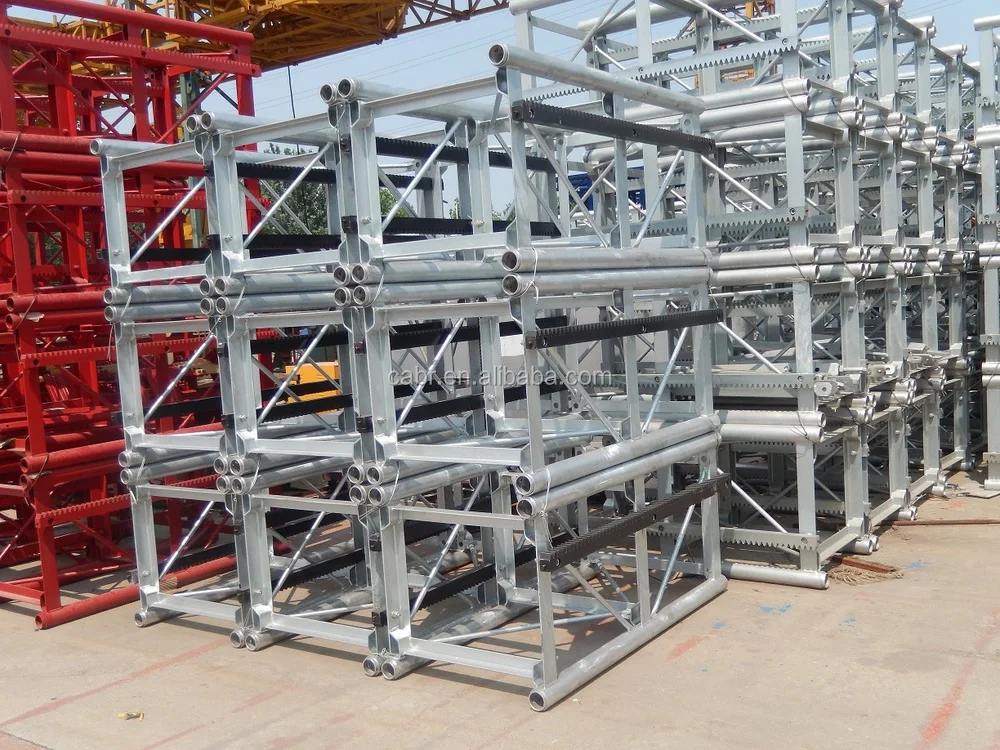

Name: mast setion

Brand: CABR/M

Original: China

Generally mast section size 650×650×1508 is used, other sizes e.g. 450×280×1508, 450×450×1508, 650×200×1508, 650×900×1508, 650×1508,800×800×1508, etc. are also available for your choice.

Main Features

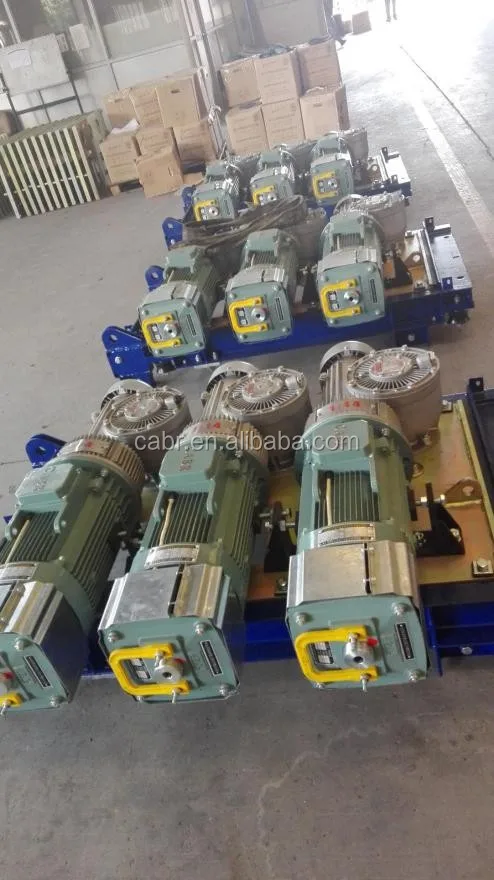

Name: driving system
Brand: SEW/NORD/Chinese brand

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

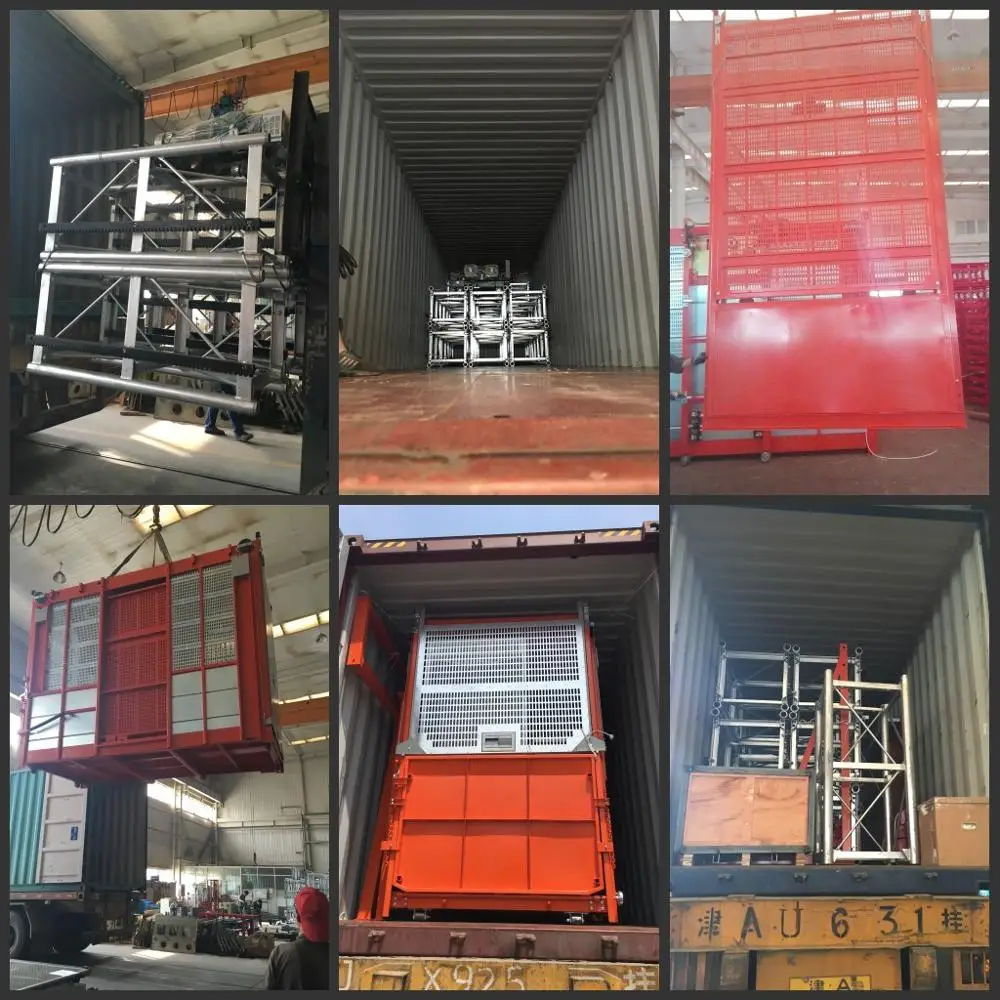

Packing & Delivery

Packaging
Size	40HQ
Weight	OPTIONAL
Packaging Details	If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
