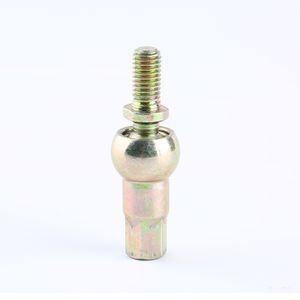

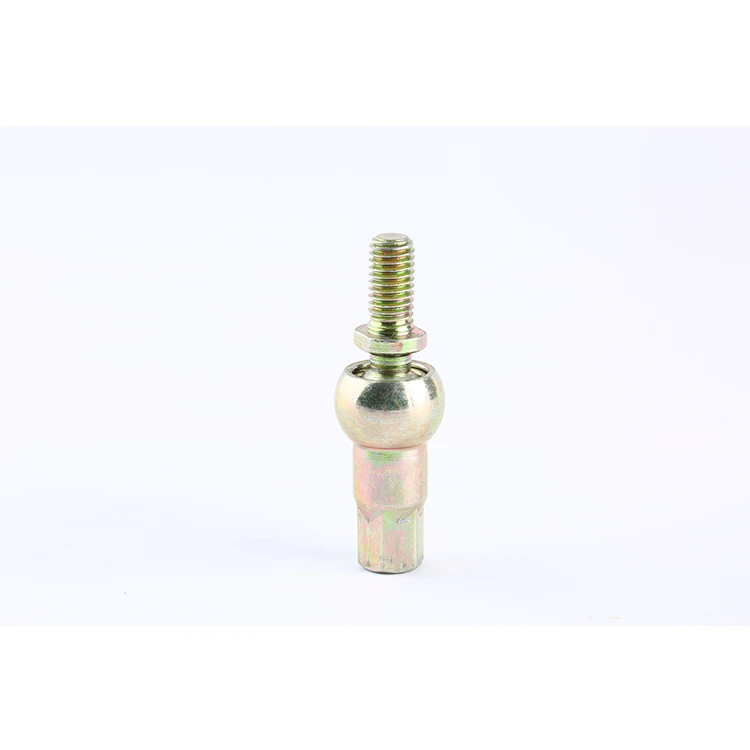

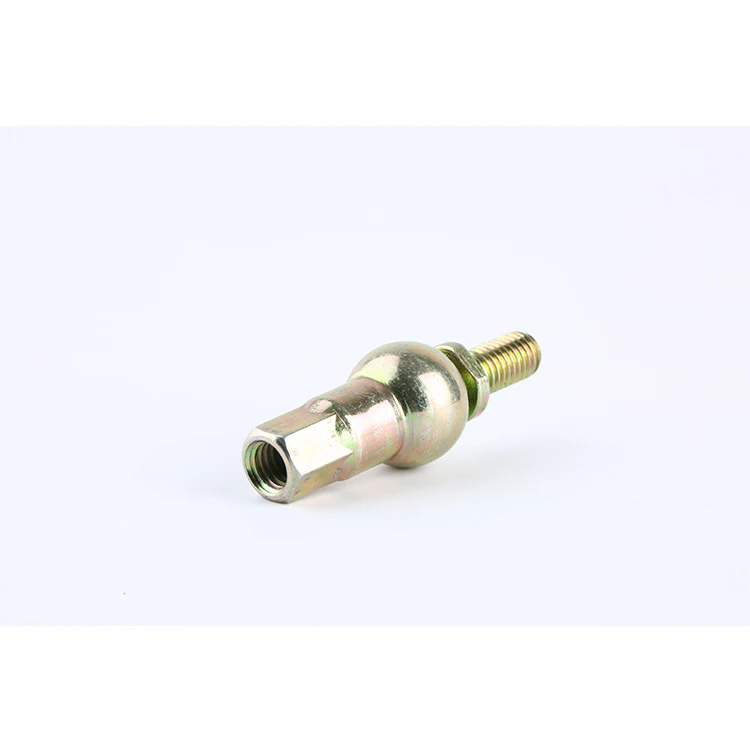

High Precision Heavy Duty Axial Damper Control Swivel Ball Joint

Supplier: Ningbo Lehonb Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Steven Leu
Price: $0.36 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Payment Terms:	L/C;	Packaging Detail:	Carton, then in wooden pallet;
Precision Rating:	High Precision;	Product name:	Axial joint similar to DIN71802;
Brand Name:	LEHONB;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Garden and Lawn Equipment;
Material:	low carbon steel;	Model Number:	AJ8 AJ10 AJ13 AJ16 AJ19;
Place of Origin:	Zhejiang China;	Type:	Rod End;

Product Description

Material,low carbon steel.

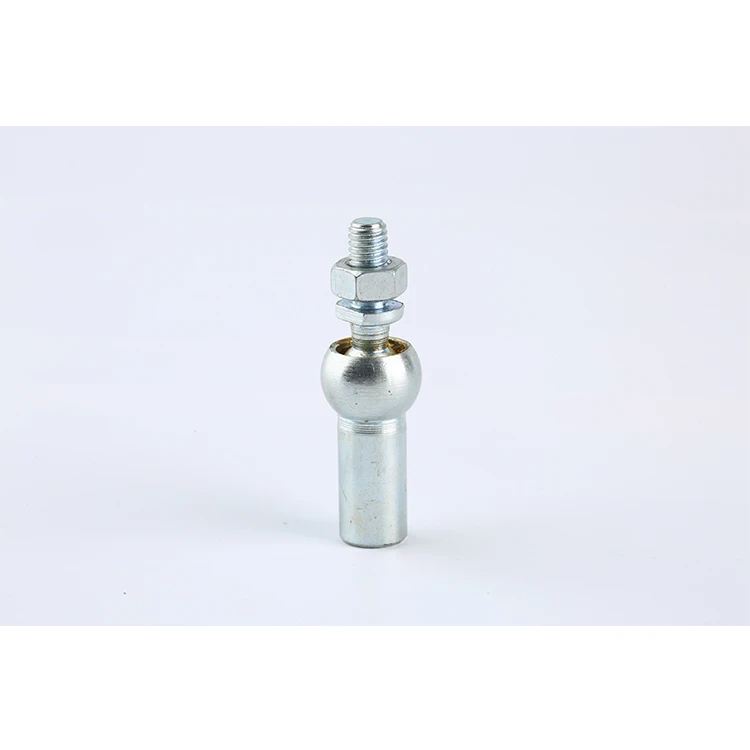

Alternative,stainless steel 304 or 316.

Surface protection,zinc plate,withe/white-blue or yellow passivated.

The manufacturer reserves the right to supply the ball socket with or without spanner surface.

Left hand thread in the housing are available.

Dimensions are in mm.

Special versions upon request.

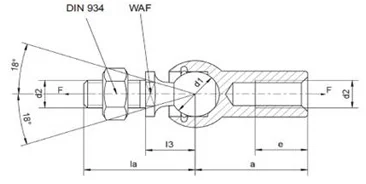

Part No.	d1	d2	a	la	l3	e	WAF	Extraction force	Weight
Part No.	d1	d2	a	la	l3	e	WAF	F in N	Kg/pcs
AJ8	8	M5	22	19.2	9	10.2	7	30	0.015
AJ10	10	M6	25	23.5	11	11.5	8	40	0.025
AJ13	13	M8	30	29.5	13	14	11	60	0.053
AJ16	16	M10	35	36	16	15.5	13	80	0.104
AJ19	19	M14x1.5	45	48	20	21.5	16	100	0.221

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
