Plastic pipe profile hauling machine haul-off machine
- 1000.00 set
| Dimension(L*W*H): | 1400*700*1600mm; | Port: | SHANGHAI; |
| Product Type: | Plastic Pipe/Profile; | Payment Terms: | L/C,T/T; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Voltage: | 380V/50HZ/3P(customized); |
| Brand Name: | HUAMING; | Processing Type: | Haul-Off Machine; |
| Applicable Industries: | Manufacturing Plant; | After-sales Service Provided: | Field installation, commissioning and training; |
| Place of Origin: | Jiangsu China; | Supply Ability: | 100 Piece/Pieces per Year; |
| Power(W): | 1.1kw; | Certification: | CE,ISO9001; |
| Weight: | 600kg; | Warranty: | 1 Year; |
| Packaging Detail: | Wood; | Condition: | New; |
OUR HUAMING MACHINERY COMPANY WEBSITE:WWW.HUAMING.CN
Machine receiving customization

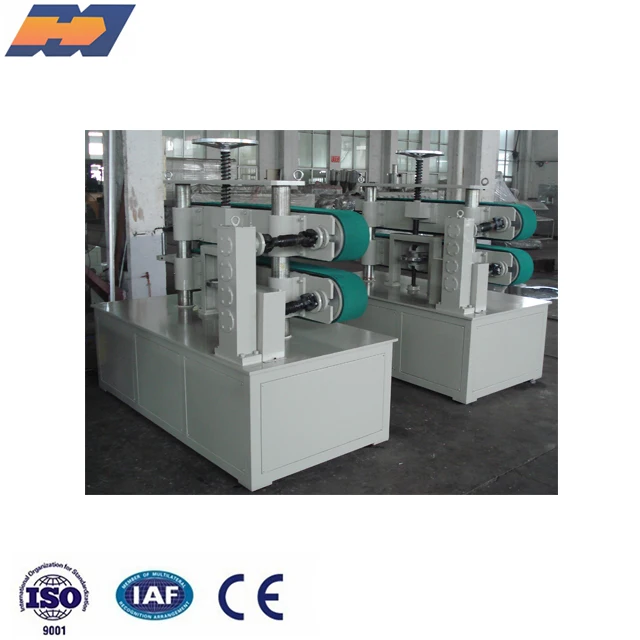

Haul-off Machine
1. Usage & scope of application
DY series tractor is rubber block type which adopts double hauling mode. DY-D series tractor is rubber belt type for plastic profile. It adopts twin rubber belt hauling mode. Both of these two series are used together with plastic extruder for hauling the plastic pipes, plastic flexible pipes and kinds of plastic profiles. The application range is wide and operation is easy. Our tractors can be driven in many different ways to meet almost all the requirements for extruding products. It is an necessary auxiliary machine for plastic extruding & processing.
2. Characteristics:
Double hauling mode is used for wide range application;
The speed regulation range is wide as stepless speed regulation is adopted;
Uniformly hauling speed;
Low noise;
Compact structure & beautiful appearance;
Coding length-counting device is selectable for precisely measuring.
Technical Standards of DY(D) series Haul-off Machine:
| Model | DY-600D | DY-1 | DY-2 | DY-3 | DY-3A |
| Drawing speed (m/min) | 0.3-10(customizable) | 0.4-5 | 0.3-5 | ||
| Max. drawing size(mm) | 80×80 | 120×120 | 150×150 | 210×160 | 210×160 |
| Max. drawing hight(mm) | 800-1000 | 800-1000 | 1000-1100 | 950-1050 | 800-4000 |
| Drawing power(kw) | 0.75 | 1.5 | 3 | 4 | 5.5 |
| Appearance size(mm) | 1000×550×1500 | 1250×650×1600 | 1550×800×1750 | 2740×1200×1800 | 2200×1000×1750 |
| Weight(kg) | 400 | 500 | 700 | 1200 | 300 |
Technical Standards of DYC series Haul-off Machine:
| Model | DYC1-800 | DYC1-1500 | DYC2-2000 |
| Drawing speed: m/min | 1-10 | 0.5-8 | 0.5-8 |
| Max.drawing height:mm | 950-1100 | 950-1100 | 950-1100 |
| Drawing power:kw | 2.2 | 4 | 5.5 |
| Appearance size:mm | 1800×885×1720 | 2200×900×1720 | 2800×1015×1720 |
If you are interested,pls fee free to contact me. Whatsapp/Wechat:008618921980633
