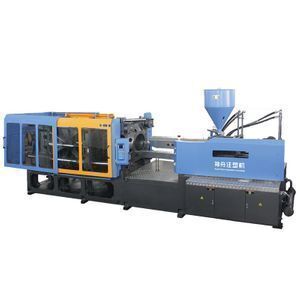

Horizontal Small Automatic SERVO energy saving plastic PE PPR PVC fittings injection molding machine

Supplier: Zhangjiagang Shen Zhou Machinery Co., Ltd.
Region: Jiangsu, China
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	Bangladesh;	Ejector Stroke:	195mm;
Heating power:	28KW;	Model Number:	SZ-4800A;
Screw Speed (rpm):	1 - 150;	Warranty:	1year;
Clamping Force (kN):	4800 kN;	Distance between Tie Bars:	760*760mm;
Power(W):	73kw;	Style:	Horizontal;
Power (kW):	50 kW;	Theoretical Shot Volume(cm³):	1758 cm³;
Distance between Tie Bars(Width)(mm):	760 mm;	Weight (KG):	20000;
Plastic Type:	Thermoplastic;	Machine Type:	Hydraulic;
Port:	SHANGHAI PORT;	Open Stroke(mm):	195 mm;
Distance between Tie Bars(Height)(mm):	760 mm;	Ejector Number:	13;
Screw diameter:	70-80mm;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Payment Terms:	L/C,T/T,Western Union;	Screw L/D Ratio:	19.7;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Condition:	New;
Certification:	ISO 9001 / CE;	Local Service Location:	Bangladesh;
Space Between Tie Bars:	760mm*760mm;	Type:	Preform Injection;
Place of Origin:	Jiangsu China;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Ejector Stroke(mm):	195 mm;	Injection Rate:	370-484g/s;
Ejector Force(kN):	113.4 kN;	Injection Weight (g):	1600 g;
Injection Weight:	1225-1600g;	Machine dimension(LWH):	7.5m2.1m2.45m;
Brand Name:	SHENZHOU;	Supply Ability:	50 Set/Sets per Month;
Injection Rate (g/s):	484 g/s;	Automatic:	Yes;
Packaging Detail:	wooden case / plastic film covered;	Warranty:	1 year;
Plasticizing Capacity(g/s):	83.7;	Screw diameter (mm):	80 mm;
Key Selling Points:	durable;	Mold Height(mm):	280 - 790 mm;
Opening Stroke:	770mm;	Plastic Processed:	PP,PC,PET,PVC,FRPP/PVC,PPR,EVA,HDPE,MLLDPE,EPS,PA,Polystyrene,PE,LDPE,HDPE/PP,ABS/PP,PE/PP,Polylactic Acid;

Product Description

Technical Parameter of SZ-4800A Injection Molding Machine
INJECTION UNIT
ITEM	UNIT	VALUE
CSCREW DIAMETER	mm	70	75	80
SCREW L/D RATIO	L/D	22.6	21	19.7
Theoretical Shot Volume	cm^3	1346	1545	1758
SHOW WEIGHT(PS)	g	1225	1406	1600
INJECTION PRESSURE	Mpa	201	175	154
THEORETICAL INJECTION RATE(PS)	g/s	370	423	484
PLASTICISING CAPACITY	g/s	60.4	71.4	83.7
SCREW TORQUE	N.m	3490
MAX.SCREW ROTATE SPEED	r/min	150
INJECTION STROKE	mm	350
CLAMPING UNIT
ITEM	UNIT	VALUE
MAX.CLAMPING FORCE	KN	4800
MAX.OPENING STROKER	mm	770
SPACE BETWEEN TIE BARS	mm	760×760
MOULD HEIGHT	mm	280~790
MAX.DAYLIGHT	mm	1560
EJECTOR FORCE	kn	113.4
EJECTOR STROKE	mm	195
EJECTOR QUANTITY	pc	13
OTHER
ITEM	UNIT	VALUE
PUMP MOTOR POWER	KW	45
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	28
HEATING ZONE		5
SIZE	m	7.5×2.1×2.45
NET WEIGHT	t	20
OIL TANK CAPACITY	L	850
INTERNATIONAL DESIGNATION		4200-2710
PLATEN DIMENTION	NOZZLE POSITION
