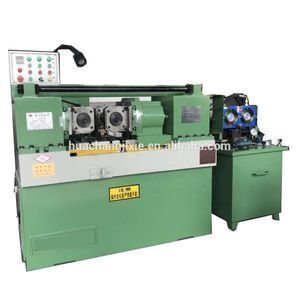

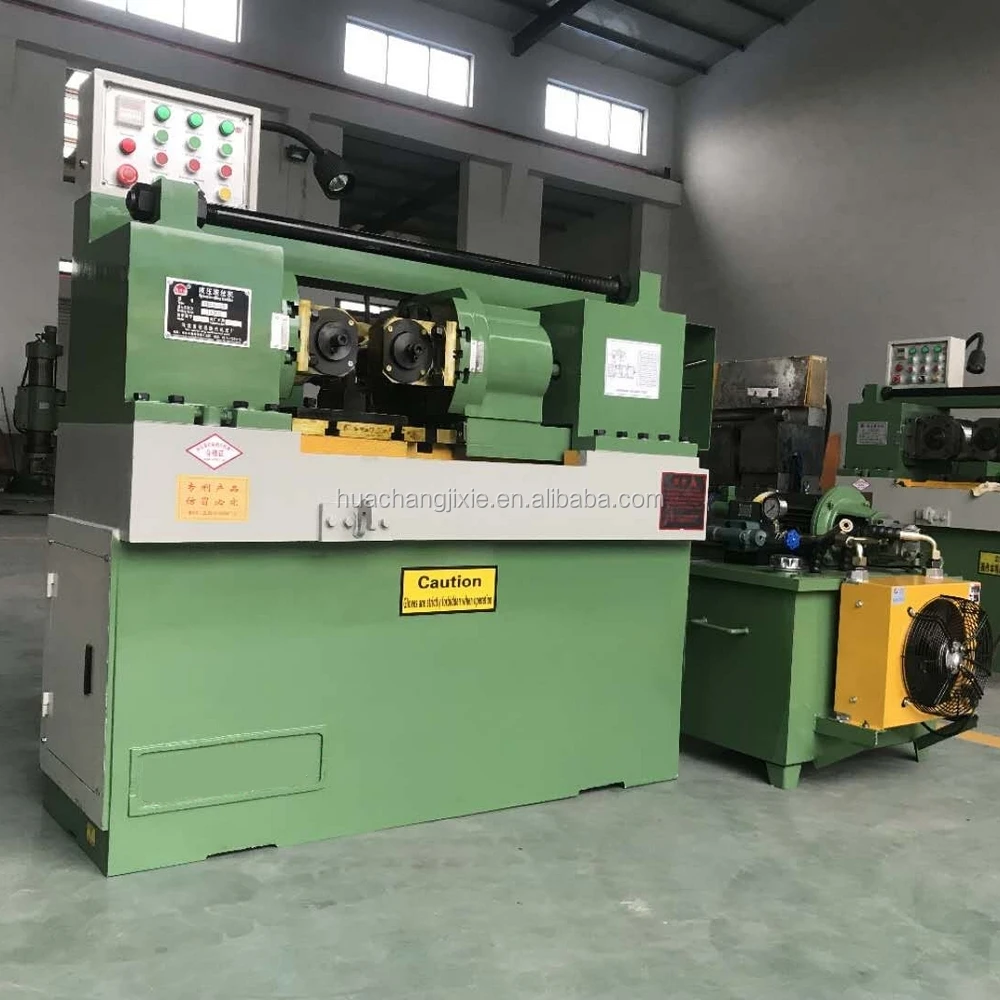

TG160 Rebar Thread Rolling Machine/Screw Thread Rolling Machine

Supplier: Xingtai Huachang Machinery Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Ms jin yi
Price: $4400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Hebei China;	Packaging Detail:	plastic bag ang then fumigation-free wooden case;
Warranty:	1 year;	Machine total weight:	1850kg+50kg;
After-sales Service Provided:	Online support;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Main axis power:	5.5kw/7.5kw;	Dimensions:	142015801360mm;
Hydraulic auto feeding adjusted time:	0.1-99.9s;	Supply Ability:	200 Set/Sets per Month;
Max rolling pressure:	140Kn;	Brand Name:	HUACHANG;
Condition:	New;	Hydraulic cease time regulation range:	0.1-99.9s;
Machine Name:	Rebar Thread Rolling Machine;	Application:	consruction;
Colling electric pump:	9.0w;	Hydraulic power:	2.2kw;
Port:	Tianjin Port or Shanghai Port or Qingdao Port;

Product Description

Thread Rolling Machine TG160 is extrusion forming thread with rolling tools by cold rolling technology which is an advanced chip-free processing technology. The rolling process is continuous. It can effectively improve the surface cleanliness, hardness and strength of the workpiece through the rolling radial pressure. It has high working efficiency.

Within its cold rolling range the machine can roll, straighten, polish, shrink to form the workpieces into all kinds of threads like common threads, twill threads, straight threads, helical teeth, trapezoidal threads, modulus threads as you need.

The machine has safe and reliable electro-hydraulic performance and control system. The cycle of rolling process can be switched between manual and automatic as user's need.

Main Features

1.Cold rolling and chip-free processing

2.Form all kinds of threads as you need

3.High working efficiency

4.Safe and reliable electro-hydraulic performance and control system

5.Processing manual or automatic as you need

Parameter

Thread Rolling Machine TG160
Process Range	prcess type	DIA	Length	Pitch
	rolling one head or both 2 heads	6-42mm	100-300mm	≤4mm
	rolling the whole bar	6-30mm	1M,3M,6M	≤2.5mm
Inner DIA of Roller	54mm
Outter DIA of Roller	130-180mm
Roller Width's range	25-100mm
Center distance of 2 rollers	125-225mm
Dip Angle of Main Shaft	±6°
Rotary Speed of Main Shaft	37,46,63,79r/min
Max rolling pressure	140Kn
Hydraulic auto feeding adjusted time	0.1-99.9s
Hydraulic cease time regulation range	0.1-99.9s
Main axis power	5.5kw/7.5kw
Hydraulic power	2.2kw
Colling electric pump	9.0w
Dimensions	142015801360mm
Machine total weight	1850kg+50kg

Packing & Delivery

Packing Details :

Plastic bag and then fumigation-free wooden case.

Delivery:

within 5 days after if machine is in stock;
producing according to customers' order within 10-25 days

Thread Rolling Machine TG180

Thread Rolling Machine TG220

Our Service

Pre-Sale Service
1.Communicate about your actral use situation and help you to choose most suitable machine model
2. Design color,marks according to your requriy
3.Produce the machine according to your order

Sale Service
1.Check the machine upon delivery
2.Help you to make operating manual and precautions

After Service
1.Guarantee for a year.
2.Discuss the problem and send corresponding repair parts,if the machine has working problem
3.Free repair whole using life with our Professional Engineer and After-sales Team (excluding the freight and accessories charge).

FAQ

Q: Are you a factory or trading company?
A:We are a manufacturer with 10 years experience,you could get factory price from us.

Q:Where is your factory located? How can I visit?
A:Our factory is located in Ren County,Xingtai City,Hebei Province,China,about 3 hours from Beijing.We can pick up clients from Beijing Airport or Shijiazhuang Airport to visit us.

Q:Can you do OEM?
A:Yes,we do OEM machines.

Q:what is your payment terms?
A:Generally,30% in advance,70% before shipment.

Q:Can you provide installation service?
A:Yes,we can,but you need to take charge of our engineer's air tickets,hotel and food fee,and 50 USD/day.
