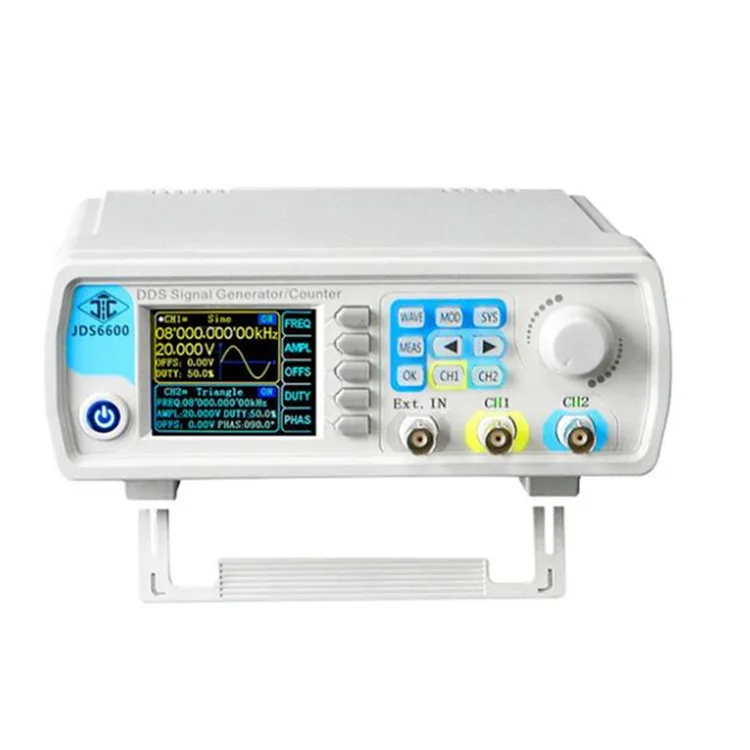

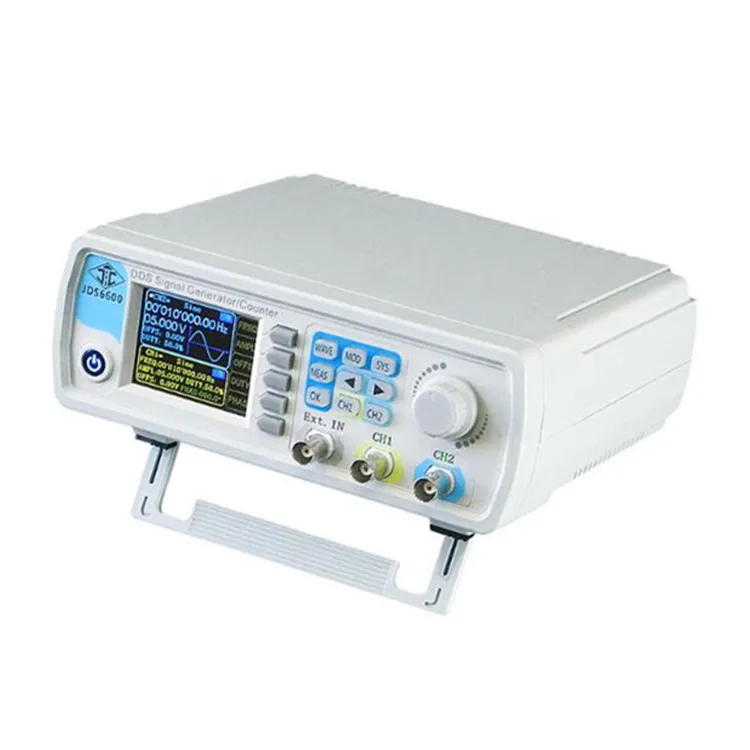

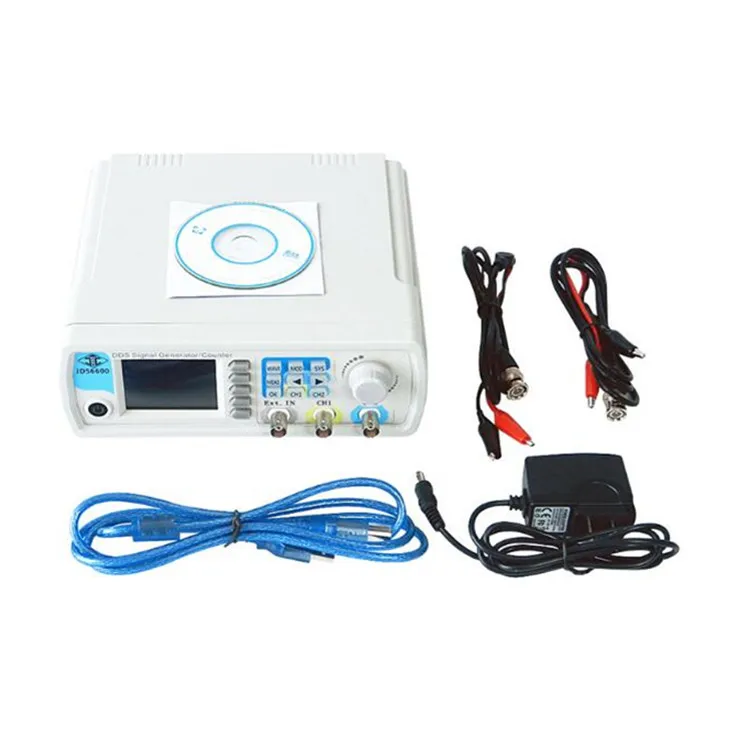

JDS6600 Series Digital Control Dual-channel DDS Function Signal Generator

Supplier: Shenzhen Dawangtai Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Emily He
Price: $60.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Delivery Detail:	3 workdays;	Waveform length:	2048 points;
Frequency range:	15MHz 30MHz 400MHz 50MHz 60MHz;	Frequency stability:	±1ppm per 3 hours;
Model Number:	DW-1134;	Place of Origin:	Guangdong China (Mainland);
Port:	Shenzhen;	Supply Ability:	10000 Piece/Pieces per Week;
Brand Name:	DAWANGTAI;	Size:	19417869;
Packaging Detail:	PP bag;	Frequency accuracy:	±20ppm;
Sampling rate:	266MSa/s;	Payment Terms:	T/T,Western Union,MoneyGram;

JDS6600 Series Digital Control Dual-channel DDS Function Signal Generator

Product Description

Description:
JDS6600 series DDS signal generator can generate sine wave, square wave, triangle wave, pulse wave, and arbitrary wave etc. The frequence will be upto 40MHz. And it has duty-cycle correction, amplitude modulation function and frequency sweep function, etc. it can show output signal, amplitude and frequency in the same time. This series has amplitude frequency characteristics, and the appearance is very delicate and beautiful. It can be applied in factories, schools, research institutes and laboratories.

Specifications:

Frequency Characteristics
			JDS6600-08M					JDS6600-25M		JDS6600-40M
Sine frequency range			0~8MHz					0~25MHz		0~40MHz
Square frequency range			0~8MHz					0~15MHz		0~15MHz
Triangle frequency range
Pulse frequency range			0~6MHz					0~6MHz		0~6MHz
CMOS/TTL digital frequency range
Arbitrary wave frequency range
Square rise time			≤30nS					≤25nS		≤20nS
Mininum Frequency resolution			0.01µHz(0.00000001Hz)
Frequency accuracy			±20ppm
Frequency stability			±1ppm/3h
Waveform Characteristics
Waveform		Sine, Square, Triangle, Pulse (duty-cycle correction),Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.
Waveform length		2048 points
Waveform sampling rate		200MSa/s
Waveform vertical resolution		12 bits
Sine		Harmonic suppression					≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
		Total harmonic distortion					<0.8%(20Hz~20kHz,0dBm)
Square and Pulse		Overshoot (Square)					≤5%
		Duty-cycle range(Pulse)					0.1%~99.9%
Ramp wave		Linearity					≥98%(0.01Hz~10kHz)
Output Characteristics
Amplitude range	JDS6600-08M					JDS6600-25M			JDS6600-40M
	2mVpp~20Vpp					≤10MHz:2mVpp~20Vpp ≤16MHz:2mVpp~10Vpp ≤25MHz:2mVpp~5Vpp			≤10MHz:2mVpp~20Vpp ≤16MHz:2mVpp~10Vpp ≤25MHz:2mVpp~5Vpp
Amplitude resolution	1mV
Amplitude stability	±0.5%/5 h
Amplitude flatness	±5%(<10MHz); ±10%(>10MHz)
Waveform Output
Output impedance	50Ω±10%(typical)
Protection	All the signal output termianl can be shorted within 60s
DC Offset
Offset adjusting range	Output Amplitude >4V				0.4V				0
	-9.99V~9.99V				-2.5V~2.5V				-0.25V~0.25V
Offset resolution	0.01 V
Phase characteristics
Phase adjusting range	0~359.9°
Phase resolution	0.1°
TTL/COMS Output
Low level	<0.3V
High level	1V~10V
Level rise/fall time	≤20ns
External Measurement Function
Frequency meter function	Frequency measurement range						1Hz~100MHz
	Measurement accuracy						Gate time continuously adjusted between0.01s~10s
Counter function	Counting region						0-4294967295
	Coupled mode						2kinds Coupling modes, DC and AC
	Control mode						Manual operation
Input signal voltage range	2Vpp~20Vpp
Pulse width measurement	0.01us (resolution), 20s (MAX measuring time)
Period measurement	0.01us (resolution), 20s (MAX measuring time)
Sweep Function
Sweep channel		CH1 or CH2
Sweep type		linear sweep,log sweep
Sweep time		0.1s~999.9s
Setting range		User settings
Sweep direction		Forward, Backward and Roundtrip
Burst function
Number of pulses		1-1048575
Burst mode		Manual Trig,CH2 Trig,Ext.Tring(AC) ,Ext.Tring(DC)
General technical parameters
Display		Display type		2.4 inch TFT color LCD
Storage and loading		Quantity		100 groups
		Location		00 to 99(Power on will load the position 00)
Arbitrary wave		quantity		1 to 60, totally 60 groups(default set 15 groups)
Interface		Interface mode		USB to serial interface
		Extension interface -		There is serial interface of TTL level mode to be convenient for user development.
		Communication speed		115200bps
		communication protocol		Command-line mode, Open protocol
Power supply		Voltage range		DC5V±0.5V
Manufacturing process		Surface-mount technology, FPGA design, high reliability, long service life
Buzzer		User can set ON or OFF by procedure
Operating characteristics		Full button operation, knob continuous adjustment
Environmental conditions		Temperature:0~40 oCHumidity:<80%
