Copper rod CCR

Supplier: Beijing Holland Co., Ltd.
Region: Beijing, China
Contact: Mr Gang Huang
Price: $31000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Overseas service center available;	Certification:	-;
After-sales Service Provided:	Field maintenance and repair service, Video technical support, Online support;	Place of Origin:	Beijing China;
Weight of plant:	85 tons (not including melting furnace);	Power(W):	customized;
Warranty:	12 months;	Total power of plant:	650kW (not including melting furnace);
Voltage:	customized;	Supply Ability:	5 Set/Sets per Month CCR;
Packaging Detail:	standard seaworthy packing;	Weight:	Customized Dimension;
Weight of coil:	3.0~5.0tons;	Brand Name:	BEIJING HOLLAND;
Dimension(LWH):	Accroding;	Condition:	New;
Capacity:	12~14 tons/hr.;	Port:	Shanghai;
Payment Terms:	L/C,T/T;

1.Application and Composition:

This plant works to produce low-oxygen glossy copper rod in 8mm diameter by means of continuous casting and rolling process, with cathode or red copper scrap as the feedstock.

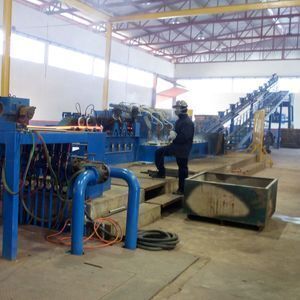

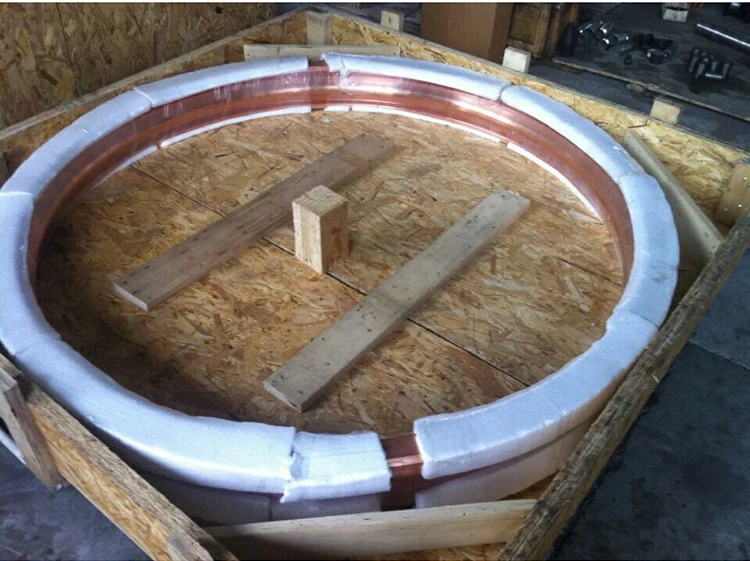

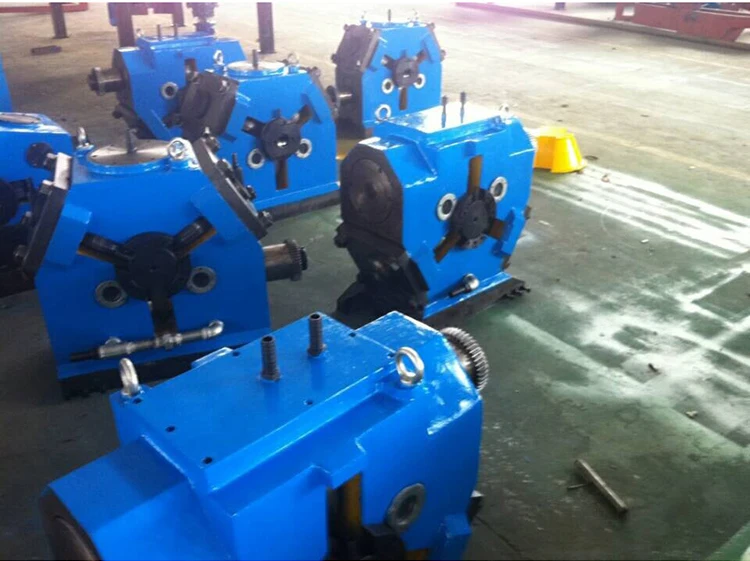

The plant is composed of 1 sets of five-wheel casting machine, drive unit, roller shears, straightener and burring unit, shaver, rolling mill, coiler, and electrical control system.

2.Brief Process Flow:

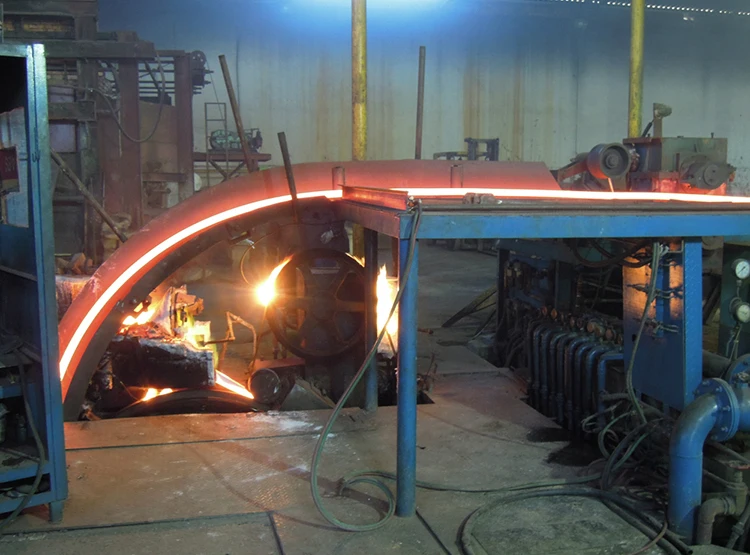

Casting machine to get cast bar → roller shears → straightener → burring unit → shaver to treat cast bar → feed-in unit → rolling mill → cooling unit to quench rod → winding unit to pre-shape rod → star coiler to lay rod into coil.

3.Refined melted copper as Feedstock:

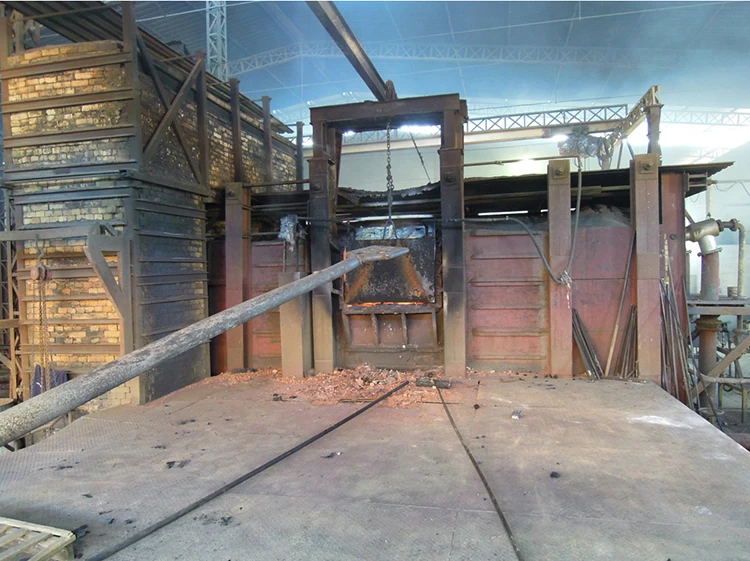

Refined and melted cooper from the furnace is flowed to the casting machine. The furnace is not included.

4.Main Technical Specifications:

No.	Item	Parameter
1	Diameter of rod	φ8mm andφ12.5mm
2	Capacity	12~14 tons/hr.
3	Weight of coil	3.0~5.0tons
4	Overall dimension of plant	40×7.8×6.1m (not including melting furnace and cooling water circulation system)
5	Weight of plant	85 tons (not including melting furnace)
6	Total power of plant	650kW (not including melting furnace)
