Mini shared charging treasure electromagnetic lock electromagnet medical instrument solenoid 0415

Supplier: Shenzhen Jingyuan Engineering Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr. Leo Ho
Price: $4.20 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Pressure:	Medium Pressure;	Temperature of Media:	Medium Temperature;
Structure:	Needle;	Place of Origin:	Guangdong China;
Install Mode:	Screw;	Stroke(mm):	9.5;
Package Type:	carton;	Work Mode:	Push Pull;
Product name:	Push Pull Type Open Frame Solenoid Electromagnet;	Electrified Rate:	60%;
Single package size:	10X5X5 cm;	Certificate:	CE & ROHS;
Selling Units:	Single item;	Power:	Solenoid;
Brand Name:	JY Solenoid;	Single gross weight:	1 KG;
Reset Mode:	Spring;	Voltage:	12v;
Port Size:	Diameter 10.8 mm;	Strength (N):	6;
Material:	Ceramic;	Application:	General;
Media:	Gas;	Model Number:	a16083000ux0614;

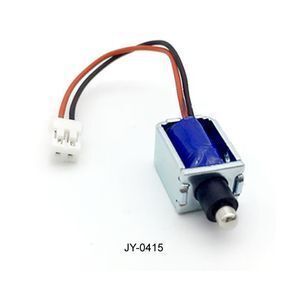

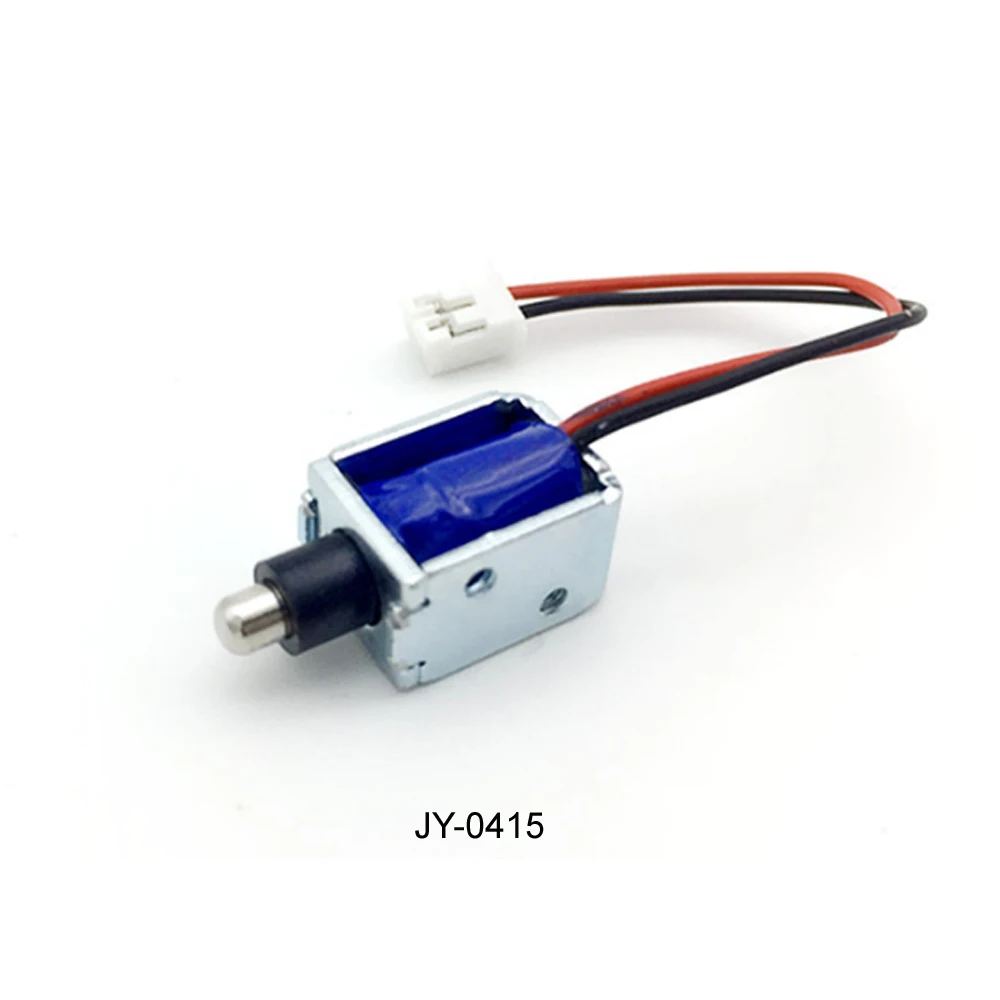

Product Name: Electromagnetic lock (shared charging treasure)

Product model: JY-0415

Product voltage: DC5/12V current: 1A/0.42A

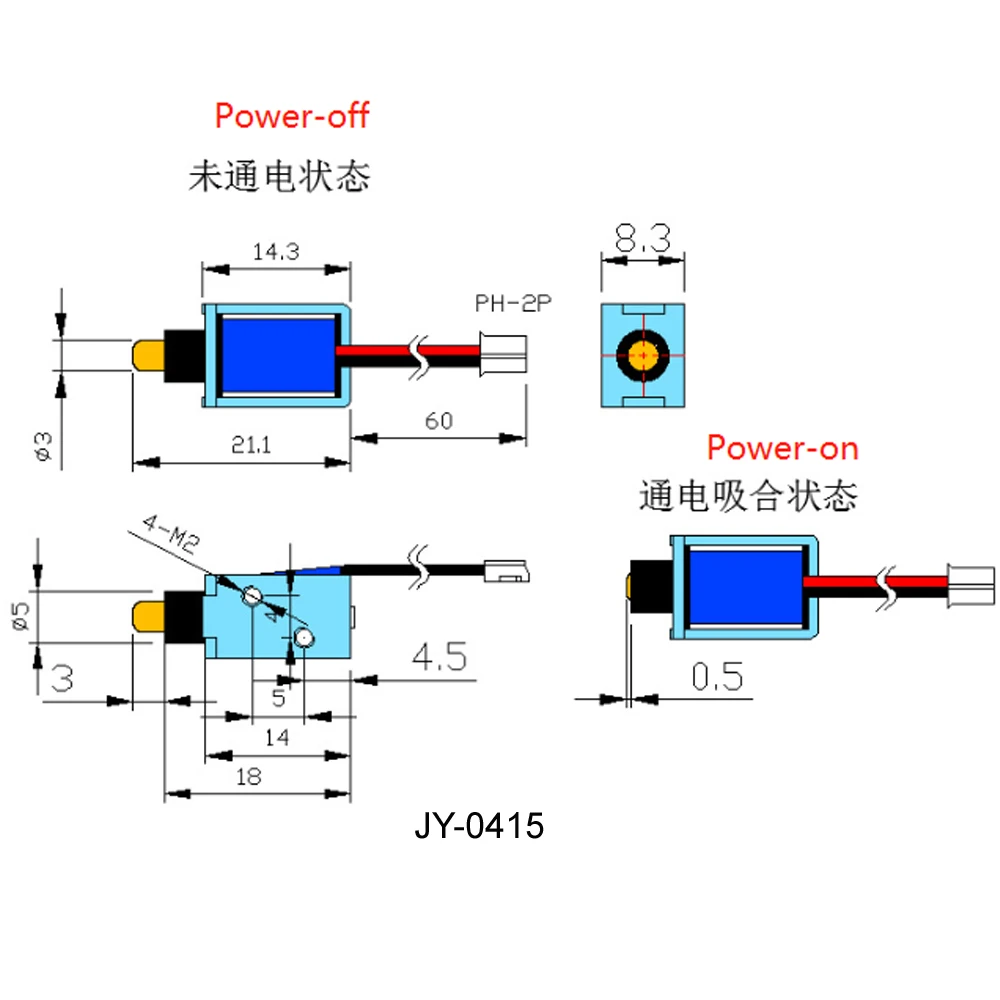

Product specifications: length 14.3MM, width 10MM, height 8MM

Product features: This electric lock is energized instantaneously, so it consumes less electricity, and the common electric control lock uses high voltage. This lock has simple structure, low cost and convenient installation.

Service life: more than 500,000 times under rated working conditions

Model	Voltage	Current	Stroke	Force	Single-time maximum power-on time
JY-0415-5V	5V	1A	3mm	30 gram	15 seconds
JY-0415-12V	12V	0.42A	3mm	30 gram	15 seconds

Installation Notes:

1. Red and black lines are the power supply lines of the electromagnetic lock, regardless of the positive and negative poles, the input voltage is DC5V, current 1A;

2. When the switch is connected to the power supply, the exposed length of the locking tongue is 3MM indented, and the charging treasure is opened. When the power is off, the locking tongue is extended by the internal spring force to 3MM, and the charging treasure is locked.

Descriptions:
Solenoid valves are the most frequently used control elements in fluidics. Their tasks are to shut off, release, dose, distribute or mix fluids. They are found in many application areas. Solenoids offer fast and safe switching, high reliability, long service life, good medium compatibility of the materials used, low control power and compact design.

Solenoid Application:

Solenoid packing&shipping:

Company information:

Our team have been engaged in developing and manufacturing high-end solenoid (electromagnetic) parts and related product since 2007. Shenzhen JingYuan Engineering Technology Co.,Ltd, located in Shenzhen China. We have a large R&D team consisting of 5 mechanical engineers, 3 electronic engineers .We have advanced equipment, making us capable of producing high-quality items at competitive prices and offer efficient services and timely delivery.

Our certification:

About solenoid OEM service we have three options for you to choose :

Option 1:

Send your drawings of designed solenoid and specify following requirements as possible as you can:

1. Voltage:

2. Stroke:

3. Force:

4. On duty Cycle: one action time

5. Off duty cycle: one action time

6. Working temperature:

7. Waterproof , shake-proof ,

8.Corrosion-Proof, Oil proof, etc

9.Dimension

10. Round or Cube Shape

11. Installation space:

12. Quantity:

13. Delivery time:

14. Your address for check shipping costs:

Option 2:

It will be great if you have samples and could send it to us. we will assess its working process as well as costs, and will let you know estimated delivery time.

Option 3:

Let us know what kind of products you will make with this solenoid if you don't have drawings, we will recommended you solutions for reference.
