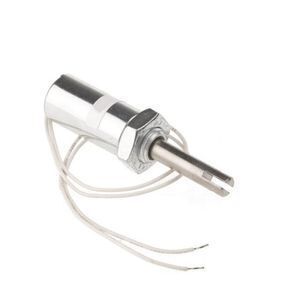

Pull Action Tubular Solenoid, 17.8mm stroke, 12 V dc, 7W

Supplier: Shenzhen Jingyuan Engineering Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr. Leo Ho
Price: $47.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Brand Name:	JY Solenoid;	Media:	Gas;
Stroke(mm):	9.5;	Strength (N):	6;
Install Mode:	Screw;	Model Number:	a16083000ux0614;
Power:	Solenoid;	Packaging Detail:	carton;
Port Size:	Diameter 10.8 mm;	Place of Origin:	Guangdong China;
Application:	General;	Work Mode:	Push Pull;
Voltage:	24V;	Structure:	Needle;
Certificate:	CE & ROHS;	Pressure:	Medium Pressure;
Payment Terms:	T/T,Western Union;	Material:	Ceramic;
Temperature of Media:	Medium Temperature;	Port:	shenzhen;
Electrified Rate:	60%;	Product name:	Pull Action Tubular Solenoid, 17.8mm stroke, 12 V dc, 7W;
Reset Mode:	Spring;

Product Details:

Linear Solenoid, Single Hole Fixing
Johnson Electric STA series linear tubular solenoids provide high force for short stroke applications and is ideal for applications that require long life and high reliability. The STA series are constructed with a low friction system bobbin which ensures life of 25 million actuations.

High resistance to shock and vibration
Continuously rated coils
Long life (up to 25 million operations)

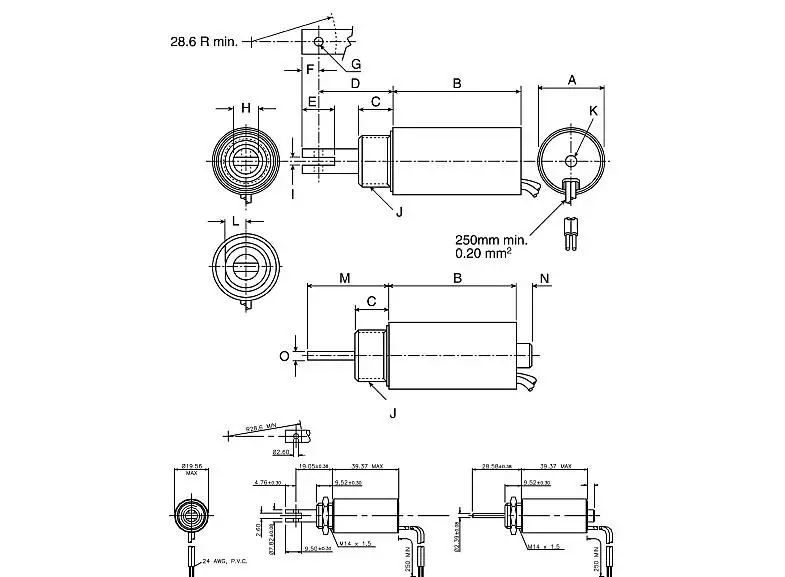

Solenoid drawing:

Specifications:

Attribute	Value
Maximum Stroke	17.8mm
Action	Pull
Duty Cycle	100%
Magnetic Force	12.8N
Closed Power Continuous	7W
Supply Voltage	12 V dc
Diameter	20 mm
Length	39.37mm
Weight	83.6g

Solenoid Application:

Solenoid packing&shipping:

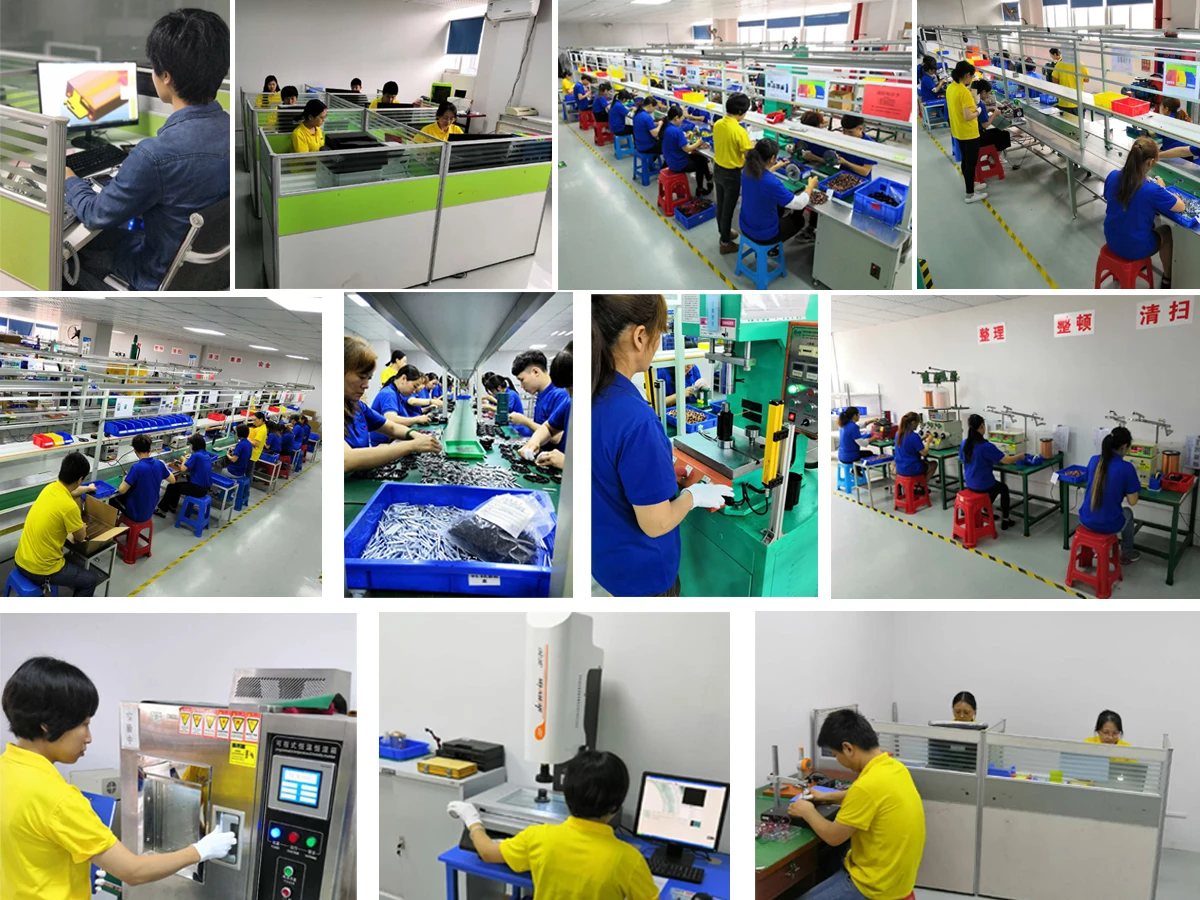

Company information:

Our team have been engaged in developing and manufacturing high-end solenoid (electromagnetic) parts and related product since 2007. Shenzhen JingYuan Engineering Technology Co.,Ltd, located in Shenzhen China. We have a large R&D team consisting of 5 mechanical engineers, 3 electronic engineers .We have advanced equipment, making us capable of producing high-quality items at competitive prices and offer efficient services and timely delivery.

Our certification:

About solenoid OEM service we have three options for you to choose :

Option 1:

Send your drawings of designed solenoid and specify following requirements as possible as you can:

1. Voltage:

2. Stroke:

3. Force:

4. On duty Cycle: one action time

5. Off duty cycle: one action time

6. Working temperature:

7. Waterproof , shake-proof ,

8.Corrosion-Proof, Oil proof, etc

9.Dimension

10. Round or Cube Shape

11. Installation space:

12. Quantity:

13. Delivery time:

14. Your address for check shipping costs:

Option 2:

It will be great if you have samples and could send it to us. we will assess its working process as well as costs, and will let you know estimated delivery time.

Option 3:

Let us know what kind of products you will make with this solenoid if you don't have drawings, we will recommended you solutions for reference.
