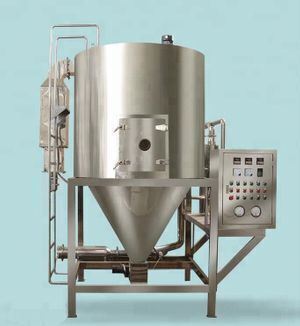

Spray drying machine/ nozzle jet spray dryer/Spray dryer granular machine

Supplier: Shanghai Genyond Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr WAKIN Yong
Price: $14000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	1870mm2140mm2830mm;	Condition:	New;
Certification:	ISO9001;	Warranty:	1 year;
Type:	Spray Drying Equipment;	After-sales Service Provided:	Engineers available to service machinery overseas;
Processing Types:	food/fruit/vegetable;	Port:	Shanghai;
Place of Origin:	Shanghai China;	Packaging Detail:	Wooden case;
Brand Name:	Genyond;	Payment Terms:	L/C,T/T,Western Union;
Voltage:	380V/50Hz;	Processing:	Separater;
Delivery Detail:	30 days after payment;	Model Number:	GY-221;
Supply Ability:	10 Set/Sets per Month;	Power(W):	2.5KW;
Weight:	1160kg;

Product Description

Specifications

Spray dryer
1. Liquid or slurry drying processor
2. Rotary disc atomization
3.Easy operate

Machine Introduction

spray dryer is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.

Working Principle

Liquid material is pumped into the top installed rotary disc atomizer by mono pump and atomized into fine droplets inside the drying chamber. Heated and filtered hot air will be blown into the air distributor at the same time. The evenly and swirly distributed hot air completely contact with the droplets for heat transfer. In several seconds, the droplets will be dried into powder and sucked out into the cyclone for discharging via exhaust fan.

Features

1.Dry faster, the general time is only 5-15 seconds, with instantaneous drying characteristics.

2.Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials, materials to maintain color, smell and taste.

3.Simplify the production process.The operational control is simple,which is suitable for control of production, wet 40-90% of the volume of liquid into a dry powder, reduce the crushing, screening processes.

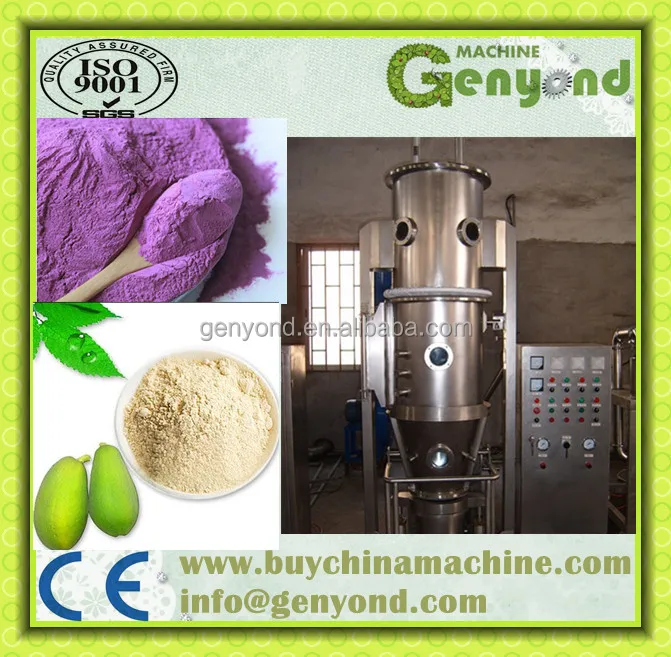

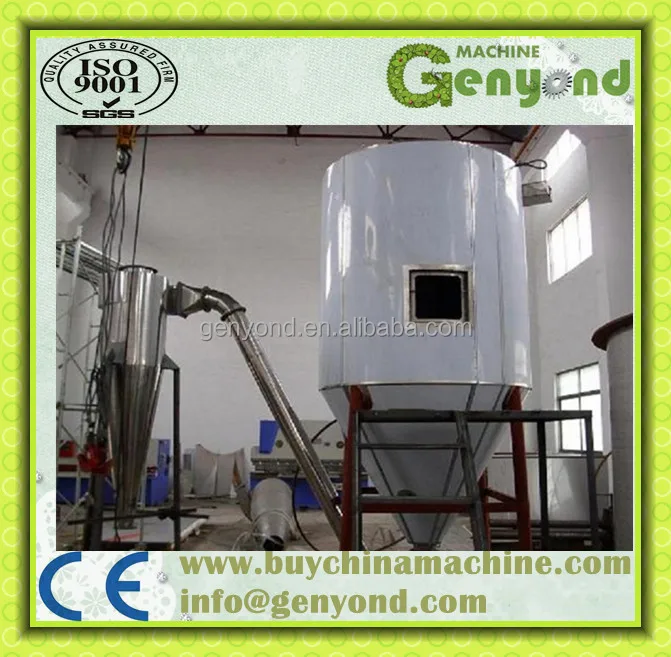

More Pictures
