China supplier air shower for clean room cleanroom

Supplier: Wuxi Yijing Purification Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Maylynn Huang
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Product name:	air shower;	Material:	Stainless Steel 304/coated steel;
Filter efficiency:	≥99.995% of Particles ≥0.3μm;	Payment Terms:	L/C,T/T,Western Union;
Port:	FOB Shanghai;	Condition:	New;
Packaging Detail:	Standard Packing, Wooden Case Packing;	Keywords:	air shower;
Name:	air shower;	Air shower time (s):	0-99s Adjustable;
After-sales Service Provided:	Online support;	Warranty:	12months ex-factory;
Nozzle:	18;	Applicable Industries:	Building Material Shops,Manufacturing Plant;
Type:	multi person;	Door Lock:	LCJ Electronic Lock;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	ISO, CE Marked;
Place of Origin:	Jiangsu China;	Supply Ability:	100000 Unit/Units per Month;

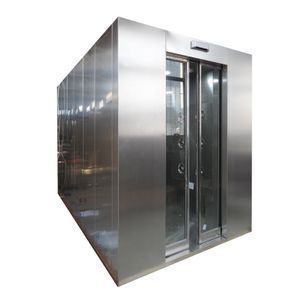

E-Clean Air Showers

The E-Clean YJ-S-1500 Model Multi User Air Shower is available in three different materials: 100% Stainless Steel, Stainless Steel Interior, and Steel Plate. The YJ-S-1500 employs E-Clean's patented air shower technologies, and includes 18 360-degree jet nozzles (nine per side) that work at more than 25 m/s. Our smart, automatic YJ-S-1500 features a touchscreen LCD color display that allows the user to customize the air shower interval and many other settings, as well as control user access. We employ German technology for our interlocking door system, which ensures a clean seal that prevents contaminant seepage. All E-Clean Air Shower models can be customized and configured to meet your specifications.

E-Clean YJ-S Series Air Shower Spec Sheet
Model	YJ-S-1	YJ-S-1500	YJ-S-2	YJ-S-3	YJ-S-4
Material	Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate
Users	1	2	2-3	3-4	6-8
Air Shower Time	0-99 seconds
Jet Nozzles	12	18	24	36	48
Nozzle Diameter	30 mm
Air Velocity	> 25 m/s
Door Closer	Dorma (German) Door Closer
Electronic Lock	LCJ Electronic Lock
Filter Efficacy	≥99.995% of Particles ≥0.3μm
Control Panel	7" LCD Touchscreen PLC Control Panel
Filter Size LxWxH (mm)	600 × 600 × 120	820 × 600 × 120	600 × 600 × 120	600 × 600 × 120	600 × 600 × 120
No. of Filters	2	2	4	6	8
Exterior Size LxWxH (mm)	1400 x 1000 x 2100	1400 x 1500 x 2100	1400 x 2000 x 2100	1400 x 3000 x 2100	1400 x 4000 x 2100
Interior Size LxWxH (mm)	800 x 900 x 1960	800 x 1400 x 1960	800 x 1900 x 1960	800 x 2900 x 1960	800 x 3900 x 1960
Power Source	380V/50Hz (Also Available in 220V and 110V)
Lighting	1 Recessed LED	2 Recessed LED	2 Recessed LED	3 Recessed LED	4 Recessed LED
Fan Power (# x Kw)	2 x 0.55	2 x 0.75	4 x 0.55	6 x 0.55	8 x 0.55
Weight (kg)	350	450	600	900	1200
E-Clean Patent No. ZL-2010-2-0502252.1

E-Clean Air Shower Advantages

1) Customizable

Choose one or more of our 14 optional features to build the perfect air shower for your needs.

2) Modern

E-Clean air showers are manufactured to exacting standards using state of the art machinery, including laser cutting and CNC automatic sheet cutting equipment. We use only SUS304-grade stainless steel and high-quality cold-rolled steel plates for our interior and exterior surfaces.

3) Smart

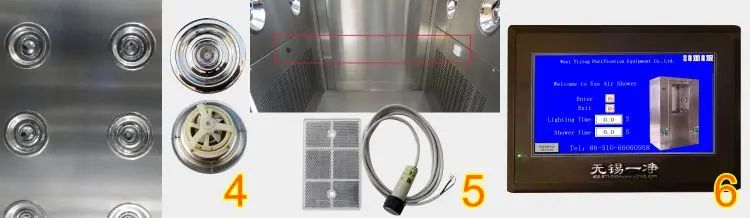

Our air showers come equipped with a 7" LCD touchscreen display PLC system, an OTS error code display system, and available audio prompts and instructions. The system can be set to manual or automatic mode, and includes security features such as a screen lock, delayed light timer, password protection, and total system access control.

4) Dependable

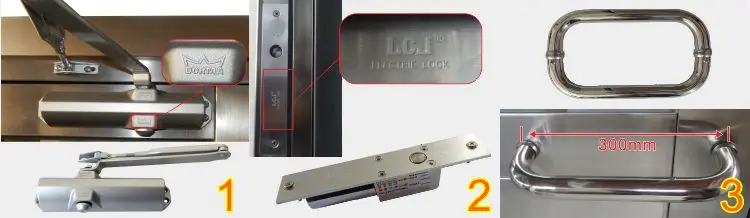

All electrical air shower components, including door locks (LCJ), door seals (Dorma), and LED lights (Omron) employ patented, innovative technologies. All other proprietary technologies are covered in Chinese patent ZL 2010-2 0502252-1.

5) Flexible

We can customize and add features such as UV lights, door configuration, air shower dimensions, interior/exterior materials, ozone generators, infrared sensing technologies, fingerprint access, etc. according to your needs.
