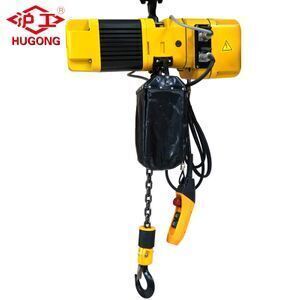

1000kg Electric chain for truss,stage,speaker/macro electric hoist

Supplier: Shanghai Yiying Crane Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Diana Yang
Price: $410.00 /set
Min. Order: 1 set

Click here to contact

Product details

construction hoist loading port:	Shanghai;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Port:	any port in China;	Sling Type:	Chain;
Packaging Detail:	heavy duty;	Chain Bag:	Yes;
construction hoist Brake System:	electromagnetic brake;	Power Source:	Electric;
Single Speed:	Yes;	construction hoist frequency:	50Hz;
construction hoist voltage:	380 V;	Usage:	Construction Hoist;
Place of Origin:	Shanghai China;	Market:	Africa,Canada,Australia;
Warranty:	1 Year;	Over Load Limit:	Available;
Low Headroom:	Available;	Lift Speed:	5.8m/min;
Supply Ability:	50000 Set/Sets per Month depends on your order;	Applicable Industries:	electric hoist;
Brand Name:	HUGO;	After-sales Service Provided:	Online support;
Certification:	TUV, SGS, CE;	Condition:	New;
construction hoist Chain:	FEC or Made in China;

Product Description

Easy Operated construction hoist used construction hoist heavy duty hoist for construction

Parameters of 220v to 380v converter electric motor lifting hoist
Model		PDH-A-0.5	PDH-A-1	PDH-A-2	PDH-A-2.5		PDH-A-3	PDH-A-5
Capacity (t)		0.5	1	2	2.5		3	5
Standard lifting height (m)		3
Lifting Speed (m/min)		7.2	5.8	3.0	5.0		5.0	2.6
Lifting Motor	Power (kw)	8	8	14	7		10	5
	Volt (V)
	Frequency (Hz)	50
Chain Turns		1	1	2	1	1		2
Chain specification (mm)		Ø 6.3×19	Ø8×24	Ø8×24	Ø11.2×34	Ø11.2×34		Ø11.2×34
Test load (t)		0.625	1.25	2.5	3.125	3.75		6.25
Net Weight (kw)		41	45	53	108	110		130
Weight added with 1m higher (kg)		1.1	1.4	2.8	2.8	2.8		5.6

220v to 380v converter electric motor lifting hoist

1. Electric motor partial outer cover:They are made of high strength aluminum system through compression casting formation.

Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.

2. Side kind braking:This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.

3. Gear:The gear made of alloy steel and through the heat treatment

4. Antiphase protector:When power-supply wiring mistake, the control circuit is unable to move.

5. Hooks:They are made by hot forging and heat treatment.

6. Chain:It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.

7. ISO: M5 /FEM: 2AM Insulation grade: F

8. Protection class (hosit and push button): IP55

9. Powder supply: 3 phase, 200-600v, 50HZ

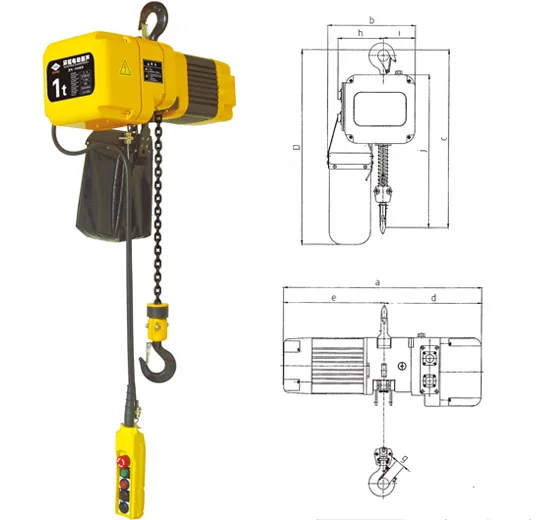

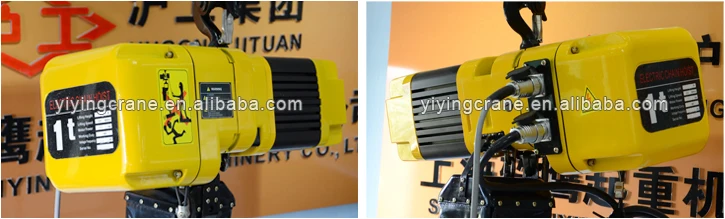

Detailed Pictures of 220v to 380v converter electric motor lifting hoist
