Electric mechanical soil laboratory test sieve shaker machine

Supplier: Xinxiang Dahan Vibrating Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Anna Shi
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Piece/Pieces per Month;	Model Number:	DH-300T;
Brand Name:	DAHAN;	Packaging Detail:	Can be packed according to the size of the machine.Our standard exporting packing is Fumigation-free wooden case,and 1 set/case.If you have sepcial requirement,please just inform us.;
Application:	Chemical;	Power supply:	220V 50Hz;
Warranty:	12 Months;	Port:	Shanghai,Qingdao or any port in China;
Standard:	ASTM;	Power:	Electronic;
Sieve diameter:	200mm;	Function:	Particle Size Analysis;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram,Trade Assurance;	Certificate:	ISO9001:2008 and CE;
Layer(s):	1-8 layers;	Customized:	Accepted;
Product name:	Electric mechanical soil laboratory test sieve shaker machine;	Place of Origin:	China;

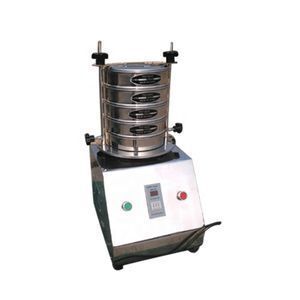

Electric mechanical soil laboratory test sieve shaker machine

Product Description

Electric mechanical soil laboratory test sieve shaker machine developed by Xinxiang Dahan Vibrating Machinery Co., LTD, is a regular automatic shutdown, guarantee the test repeatability and fully functional operation simple mechanical analysis apparatus. Can be a kind of granular material precision at the same time to separate 2~8 period of particles. Can be used for slurry fineness and content of impurities of the analysis,the noise is small,light weight,the platform operation without fixed.

Main Features

1)Auto power-off,simple operation.

2)Light weight,small size,low noise,easy moving.

3)Time setting makes sure the accuracy of testing data.

Product Structure

Technical parameters

NO	Name	Unit	Parameter
1	Sieve diameter	mm	∅200
2	The quantity of layer	s	1-8
3	Vibrating frequency	n/min	1440
4	Vibrating amplitude	mm	1-4
5	Exciting force	KN	3
6	Chassis level	mm	≤0.6
7	Motor power	KM	0.12
8	Power supply	V	220
9	Outside dimension	Mm	360×300×(360+N×56)
10	Timing	s	999

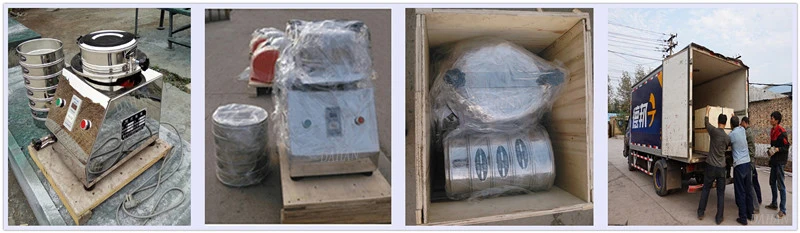

Product Detailed

Product Application

Electric mechanical soil laboratory test sieve shaker machine widely usedin food,medicine,chemical,

abrasive,pigment,mine,metallurgy,geology,ceramic,national,defense industry suah as scientific reseach units laboratories testing room suah as inspection of production control and analysis.

Are you satisfied with the product click to get the latest offer

Contact me

Company Information

Xinxiang Dahan Vibrating Machinery CO.,LTD.

The XinXiang Dahan Vibrating Machinery Co.,LTD, is specialized in the vibrating screen equipment,

vibration machinery series products manufacturer,from the design and production to salesprovide a complete assembly line service,committed to solved all kinds of sieving problem,after years of development process of the introduction of foreign advanced technology to improve the orginal screen,

and upgrades,for customer screening requipments in terms ally developed into a professional manufacturing enterprise in the industry of xinxiang vibrating screen.
