New energy vehicle powertrain systembus conversion kit EV ac gearbox motor and controller kit

Supplier: Hubei Haojing International Trade Co., Ltd.
Region: Hubei, China
Contact: Ms Min He
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	400v-650v;	Payment Terms:	L/C,T/T;
Continuous Torque:	3500N.m;	Motor power:	100kw;
Motor Rated speed:	2400RPM;	Port:	wuhan or shanghai;
Max power:	250KW;	Motor speed:	0-3200RPM;
Peak Torque:	980N.m;	Speed(RPM):	2400RPM;
Supply Ability:	500 Set/Sets per Month;	Packaging Detail:	Natural packing;
Type:	Alternating Asynchronous;	speed ratio:	3.75:1;

Product Description

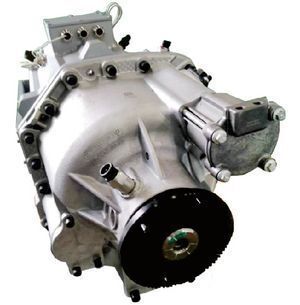

New energy vehicle powertrain system bus conversion kit EV ac gearbox motor and controller kit

Equipment	Name	Specification
Motor	Motor rated power(kw)	60	80	100	120	150
	Motor peak power(kw)	150	200	250	300	375
	Motor rated speed(r/min)	2400-3000
	Motor peak speed(r/min)	3500-4000
	Rated torque(N.m)(include speed ratio 3.75)	895	1194	1492	1791	2238
	Peak torque(N.m)(include speed ratio 3.75)	2238	2984	3730	4477	5596
	Demission of Motor (mm)	480340450	560340450	880436524	880465540	880490550
	Weight of Motor (kg)	90	120	205	210	220
Controller	Controller rated power(kw)	60	80	100	120	150
	Controller peak power(kw)	150	200	250	300	375
	Controller weight(kg)	10.6	10.6	24.5	24.5	24.5
	Cooling mode	400282131	400282131	497496163	497496163	497496163
Transmission	Model	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling
	Lenth(mm)	DT08255	DT08340	DT10425	DT12510	DT15637
	Input torque(N.m)	380	390	400	410	420
	Weight(kg)	50	70	90	100	110
	Speed ratio	3.75	3.75	3.75	3.75	3.75

Motor advantages:

1. Economy: The direct cost has dropped significantly;

2. Reliability: Compared with the industrial level to the automobile level, the components of the product basically use the automobile products, and the reliability is guaranteed;

3. Weight: Compared with direct drive system, the weight of the product and connecting components shall be reduced by at least 30%.

4. System energy consumption: Compared with direct drive system, the system energy consumption is reduced by 8% - 15% after comparison test.
