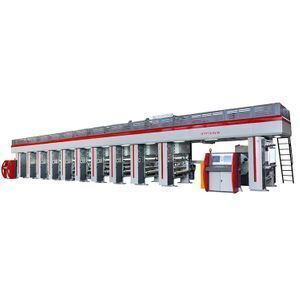

Portable paper rotogravure printing machine for sale roll

Supplier: Changzhou Dagui International Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jonson zhu
Price: $150000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Condition:	New;
Place of Origin:	Jiangsu China (Mainland);	Voltage:	3 phase,50Hz,380V±10%;
Certification:	ISO9001;	Warranty:	one year;
Power(W):	305kw;	Port:	SHANGHAI;
After-sales Service Provided:	Engineers available to service machinery overseas;	Delivery Detail:	within 45 days after down payment;
Supply Ability:	5 Piece/Pieces per Month;	Automatic Grade:	Semi-Automatic;
Model Number:	YSB-800;	Dimension(LWH):	1891547503370(mm);
Brand Name:	Dagui;	Packaging Detail:	Pallets, one 40 foot container can load one set;
Weight:	6000kgs;

Product Description

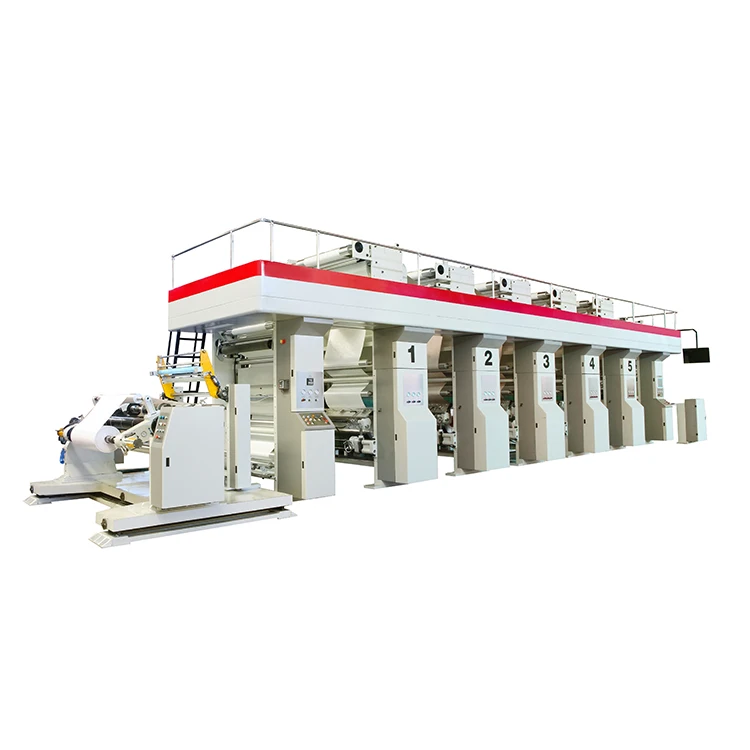

Portable paper rotogravure printing machine for sale roll

operation simply and good quality

Product details

Product Keywords

paper rotogravure printing machine for sale,paper roll rotogravure printing machine

OTY series rotogravure printing machine

features description

1,This machine is high speed rotogravure printing machine and adopts seven motors digital tension control system to achieve high tension control accuracy.

2,This machine has high significant effect in saving energy and lowing noise, improving products quality and reducing rejection rate. It brings customers huge economic efficiency.

3,This machine’s oven adopts stainless steel inside and high wind speed to achieve great drying effect

4,The max. designed printing speed is 200m/min.

5,The motive power of plate cylinder is provided by the main transmission shaft which distributed to each high-precision gearbox. Transmission accuracy is high, stable and reliable.

6,Independent driven ink roller device can increase printing dot reduction and production quality, and reduce the ink spitting situation in high speed.

7,Printing registration adopts compensating float roller. It has pre-register function to achieve high register accuracy and also can save time and reduce the film waste.

8,The doctor blade is two shafts and two air cylinders system, can achieve three direction adjustment and getting good ink-scraping effect.

9,External and independent unwind & rewind adopts air shaft less taper chuck + air expending shaft device, which is suitable for high speed print and high speed auto splicing and reduce the labor intensity.

10,This machine is high speed and low noise design to provide workers a good working environment.

the main parameters

printing sequence	from left to right
color No.	5,6,7,8,9,10,11,12 color
max. printing speed	200-450m/min
max. printing speed	actual printing speed depends on used in the properties and thickness uniformity of the base material, solvent properties, ink layer thickness, ink features, etc
unwind diameter	Φ800mm
rewind diameter	Φ800mm
paper core	Φ76×Φ92(3 )
web holding form of unwind/rewind	Shaftless taper chuck
paper core	Φ76mm×Φ92mm(3″)
min. valid web changing diameter	Φ200mm
register accuracy	longitudinal≤±0.1mm(Automatic tracking system) Horizontal ≤ ±0.1mm (By manual)
register accuracy
tension control range	3~25kg
tension accuracy	±0.5kg
printing impression	380kg
impression roller	Shao Er(A)70°~75°
plate cylinder diameter	Φ120mm~Φ300mm
plate cylinder length	600mm~950mm
doctor blade oscillation	±5mm
air impression	0.6Mpa≤P≤0.8Mpa
drying method	electricity
temp. of oven	Max.80℃(room temp.20℃),
temp. control accuracy	±2℃
film length in oven	1.4m last unit 1.6m
wind speed in oven	Max.28m/s
hot wind reuse rate	0~50%
max. wind in	3600m3/h 4000m3/h
fan power	2.2kw×8 4kw×1
main motor power	22kw
length between units	1.6m
air impression	0.6Mpa≤P≤0.8Mpa
power	3 phase,50Hz,380V±10%
printing material	PET:12~60μm BOPP:15~60μm OPP:20~60μm CPP:20~60μm NY: 15~60μm PE: 35~100μm


total power	About 305kw(not include exhaust blower 18.5KW)
(L×W×H)overall size	About 18915×4750×3370(mm)
