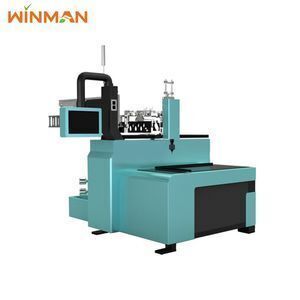

cnc foam gasket sealing making machine manufacturing

Supplier: Shanghai Winman Industrial Co., Ltd.
Region: Shanghai, China
Contact: Mr. WINMAN SHANGHAI
Price: $65000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	electrical cabinet/water-proof case/air-cleaning filtration;	Payment Terms:	L/C,T/T;
Certificate:	CE,CB,UL,RoHs,ENEC,REACH full certification;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Advertising Company;
COLOR:	Client;	Condition:	New;
Supply Ability:	500 Set/Sets per Year;	After-sales Service Provided:	Field installation, commissioning and training;
Brand Name:	winman;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Shanghai China;	Warranty:	2 Years;
Port:	Shanghai;	Packaging Detail:	Durable protection material like foam plastic, then carton, container.;

WM2-10 gasket cement making machine manufacturer for transformer
Linear Robot
3-axis Traversing range:	X: 800mm Y: 600mm Z: 160mm (can be custom-built ) - Three axis combine move
Table size	L:800W600H1000mm(can be customized)
Meter pump precision	+/- 0.05%
The limited for work pressure &Alarm	0-4 Mpa
Filter precision	0-5um
Reset Precision	+/-0.05mm
Pressure Requirement	0.5-0.8MPA
Motors	8 sets of PANASONIC motors
Max. sliding speed:	0-30m/min
Coating- Chassis section:	2-K industrial paint, RAL7044(White)Machine body; Blue Traversing Arm
Electrical system:	According to CH 60 204-1 standard
G weight	1000kgs
Overall Dimensions:	2300mm1550mm2100mm( L x W x H) Package size
Rated capacity:	4kw
Average consumption:	3kw
Overall space:	10m³
System Memory:	99pcs of CAD drawings
Interface Language:	Chinese/English

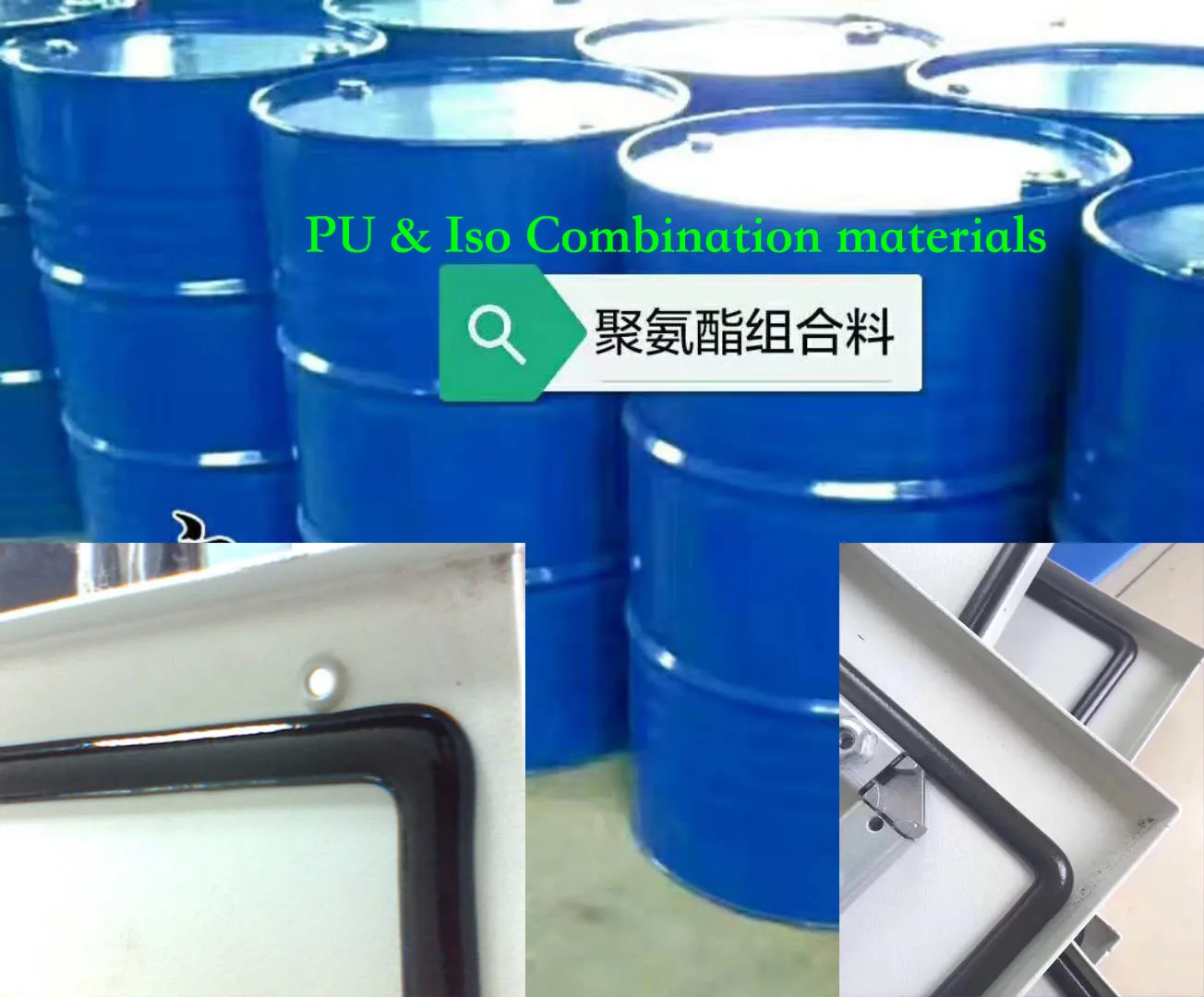

Components(A&B) - 2:	Polyurethane A&ISOB
Material Mixing ratio :	from 10:1 to 1:10 / [Available for any brand of raw material]
Strip width :	2-10mm
Cleaning Method :	High Pressure Water Cleaning
AB components tanks	40L for each A&B
Mains power supply :	380V 50HZ 3phase(According to local industrial voltage)
Mixing Head- 4 cylinder valves
Output capacity :	0.05g/s-1.5g/s
Application :	Cabinets, Lighting, Automobile, Electronics, Filter, Battery etc.
Strip width:	2-10mm for both flat and with concave products
Operating pressure:	0-20 bar/component

ABOUT US
Shanghai WINMAN Industrial Company for PU gasket foam machine, switchboard opening door rubber gasket machine, Dispensing machine, Pu foam sealing strip, foam Gasket sealing machine, gluing & dispensing machine, potting machine, Gasket Strip sealing machine, form in place foam gasket machine, polyurethane foam sealing gasket machine foam seal strip making machinery, PU Dustproof Gasket Making Machine for Panel Enclosure, Package PU Gasket Seal Machine Scrap Baler Pipe Duct Machine Wheel Machine Filter Making Machine, PU foam machine PU sealing machine Polyurethane gasket machine dispensing machine…

What we do?
At WINMAN we know well the problems you are facing in the gasket sealing for your electrical cabinets/air-cleaning filtrations/water-proof cases/switchgear board… PU gasket foam machine is specially designed to replace the traditional sticky gaskets, which is the newest generation of zero maintenance, long lifespan, low power consumption, various shape of gasket formed in place.

How we help save your cost?
As the traditional deciduous, fragile and poor waterproofing gasket, it is putted by hand, it means you have to pay a lot on the repeating labor and one-off gaskets, PU gasket foam machine formed the gasket in your products in place, one set of machine can produce infinite gaskets, and ingress protection can get to IP67, its’ reliable working performance helps save your time and money.

How we help for your business?
Supplying free installation & commission in local area, professional after-sale serves, quick delivery time(20days), we are available online for 14hours per day, each question will get fast response within 24hours, we will help your esteemed company get the good comments from your god customers, we are always willing to do with-win business

The application scope of our equipment?
*Control cabinet area
The most famous brands:SCHNEIDER RITTAL SIMENSI
electric cabinet, hinged door, sheet metal, distribution box, enclosure door
switchgear box, switch box, switch cabinet, distribution cabinet, cabinet panel......
*Water-proof box
Famous brand:ABB
ABB box, water proof box, Wire terminal, cable case with gradient
*Filter ventilation cover
Radiator, air cleaning filter, ventilation cover
*Air filters
Air filters, conditioner air filters
*Light, fixture
explosion proof light, outdoor lights, street lighting, stadium lighting
*Autombile
car tail lighting, auto parts, car door, automobile, Car horn bracket, car air feed bracket, car door handle, car fuel tank month , car rain-proof board,
*Others industries
lamp cover, locks shell
