Full automatic auto copy shaping machine
- 3700.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

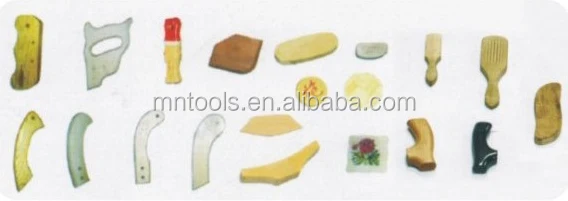

| Dimension(L*W*H): | 1350*900*1600mm; | Application: | Making wood brush handle; |
| Voltage: | As per request; | Single gross weight: | 600 KG; |
| Package Type: | 1. Outside packing: Standard exporting wooden cases; 2. Inner packing: Stretch film.; | Power(W): | 3.75kw; |
| Warranty: | 1 Year; | Place of Origin: | Shandong China; |
| Condition: | New; | Voltage: | 380V/50Hz/3 phase; |
| Certification: | ISO9001; | Brand Name: | MNTOOLS; |
| Selling Units: | Single item; | After-sales Service Provided: | Video technical support; |
| Single package size: | 1300X1600X1300 cm; | Applicable Industries: | Manufacturing Plant; |
| Weight: | 1100kgs; | Shaft Number: | 1 pc; |

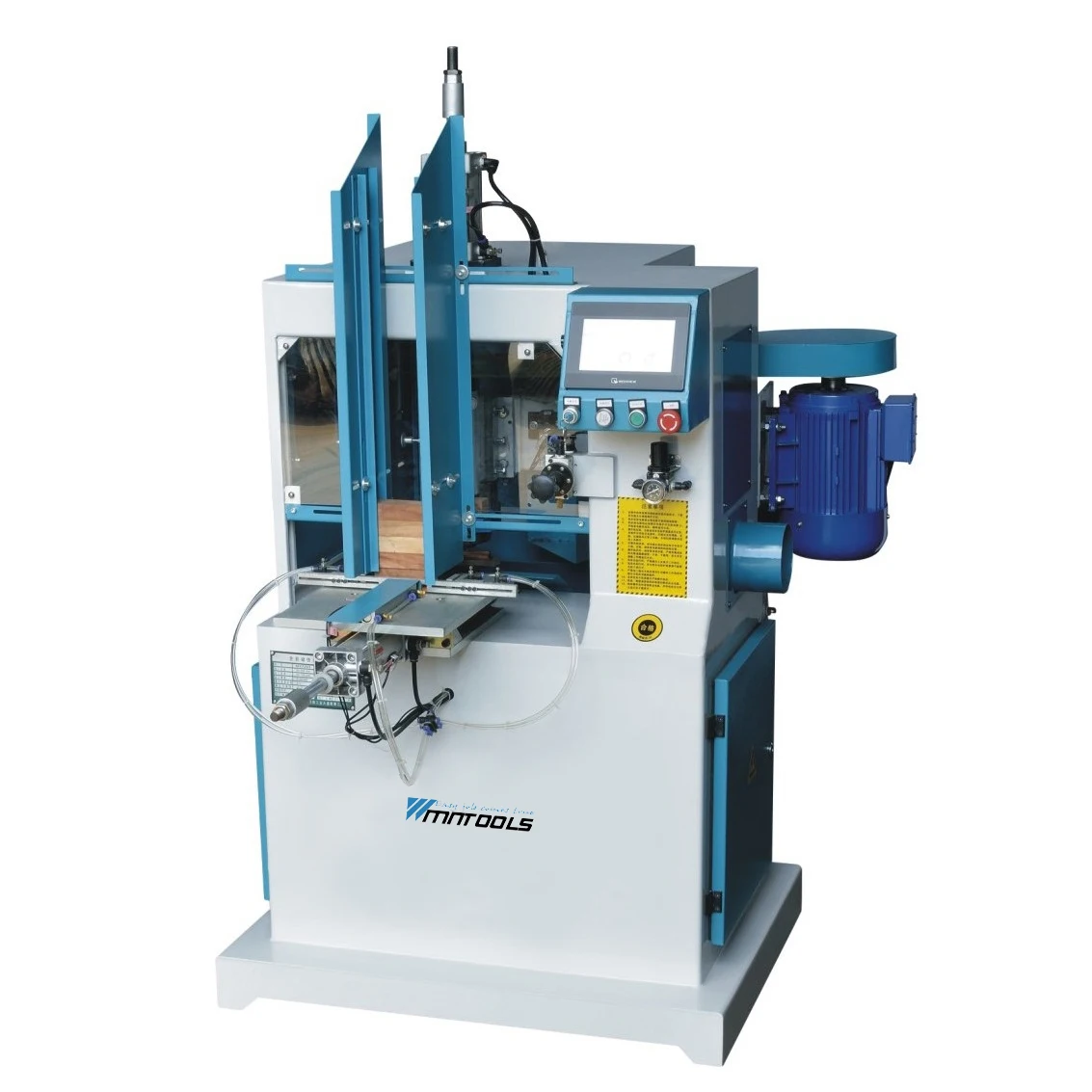

Full automatic auto copy shaping machine
Product Description
Model | MTACS7203 |
Shaping diameter | 20-300mm |
Shaping thickness | 5-65mm |
Max. Rectangular cutting | 2:1 |
Spindle diameter | 25.4mm |
Spindle speed | 12000r/min |
Air pressure | 0.6-0.8Mpa |
Shaper cutter power | 3kw |
Rotary motor power | 0.75kw |
Dust outlet diameter | 80mm |
Net weight | 1100kgs |
Overall isze | 1350*900*1600mm |
