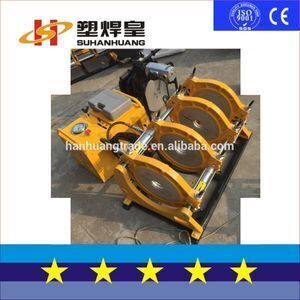

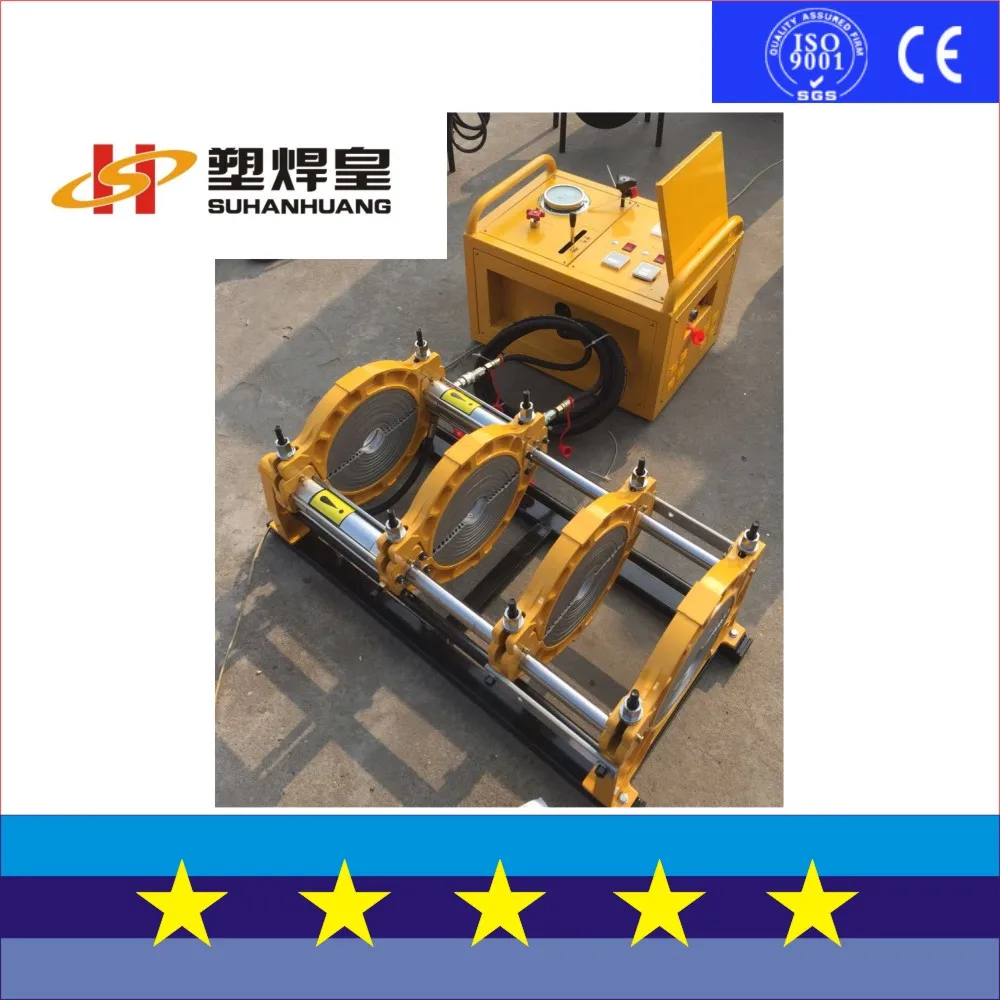

HHD90-315 PE Pipe Butt Welding Machine hydraulic docking butt welder butt fusion machines with high quality

Product details
Dimensions:0.85CBM;Power:4.95KW;
Certification:CE ISO;Supply Ability:800 Unit/Units per Month;
Packaging Detail:Compliance with the export of wooden packaging;Condition:New;
Current:21A;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Usage:Pipe Welding;Brand Name:suhanhuang;
logo:can be OEM;Warranty:1 Year;
Port:Ningbo or Shanghai or Yiwu;Place of Origin:Zhejiang China;
Input Voltage:220V;Weight:217;
Welding range:90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm;After-sales Service Provided:Video technical support;
After-sales Service Provided:No overseas service provided;COLOR:can be design;



Application and features:



♥Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

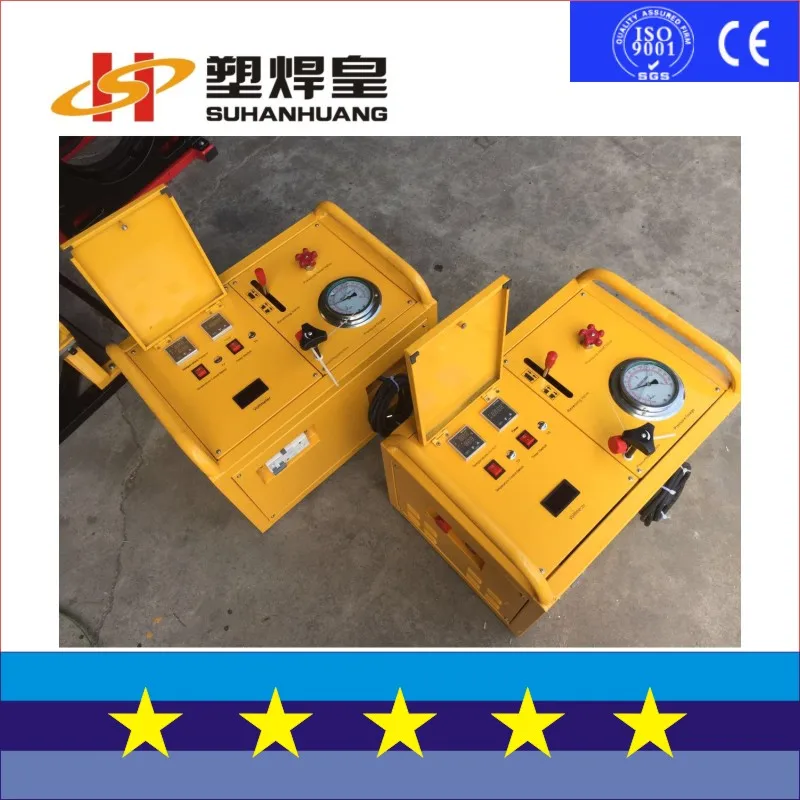

♥Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.



♥Removable PTFE coated heating plate with high accurate temperature control system;



♥Electrical planing tool.



♥Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.



♥Low starting pressure ensures reliable welding quality of small pipes.





The main parameters:



Welding Size:                                                                     Dn90,Dn110,Dn125, Dn140,Dn160,Dn180,Dn200,Dn225,Dn250,Dn280,Dn315

Sealing Deviation:                                                            ≤0.3mm

Temperature Control Range:                                          0~300℃

Temperature Error:                                                           ±5℃

Operation Pressure of the Hydraulic System:             0~6Mpa

Power:                                                                                 4.95KW/220V

Heating Power:                                                                  3.1KW/220V

Cutter Power:                                                                     1.1KW/220V

Hydraulic Power:                                                               0.75KW/220V





Our advantage :

Professional factory, best quality,reasonable price and best after -sales service .

we are the manufacturer, we are the source. All accessories can be supplied by ourselves.

According to the customer’s needs, our designer can designer special types of welding machine. And color as customer’s request.

High output, delivery in time.
