STONE LINE PROFILE & POLISHING MACHINE cutting machine marble granite slab, polishing grinding granite marble slab

Supplier: AU SA VI NA COMPANY LIMITED
Region: Binh Duong, Vietnam
Contact: Ms. Suri Ngo
Price: $1.00 /set
Min. Order: 1 set

Click here to contact

Product details

Table Width (Including roller table):	USA - 10 7/8" x 157 1/2", International - 278 x 4000 mm;	Thickness Of Cutting:	USA - 5/8 - 1 5/8", International - 15-40 mm;
Dimension(LWH):	4000 x 700 x 1356;	Payment Terms:	T/T;
Blade Diameters:	USA - 11 7/8", International - 300 mm;	Port:	CAT LAT;
Cutting Weight:	USA - 14 3/4", International - 370 mm;	After-sales Service Provided:	Online support,Video technical support;
Brand Name:	AUSAVINA;	Packaging Detail:	Manufacturer's Export Packing Standard Please do not hesitate to contact us. Mobile/ Whatsapp/ Wechat: (+84) 902505544;
Speed (Rpm):	USA - 3400, International - 2800;	Type:	Stone Cutting Machine;
Condition:	New;	Power(W):	5 KW, 6.7 Hp;
Use:	Stone, Granite, Marble, slab panels;	Warranty:	12 months;
Voltage:	USA - 220 V, International - 380 V;	Cutting Length:	USA - 124 1/4", International - 3150 mm;
Production Capacity:	Cutting, polishing, grinding;	Model:	SLP&PM400;
Supply Ability:	2 Set/Sets per Month;	Voltage:	380 V, 220 V;
Warranty:	1 Year;	Place of Origin:	Ho Chi Minh City Vietnam;

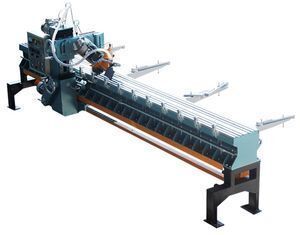

STONE LINE PROFILE & POLISHING MACHINE

1. Straight Cutting: (90^ocutting)

Maximum Stone Slab Cutting Dimensions (In / mm):
125 ¹⁵/₁₆ " (3200 mm) (L) x 16 ¹⁵/₁₆ '' (430 mm) (W) x 1⁹/₁₆'' (40 mm) (Thickness).

2. Tilt Cutting: (45^o cutting)/ (135^o cutting)

- The cutting angle is adjustable.

- Maximum Cutting Thickness: 1³/₁₆ '' (30mm) at a 45 or 135 - degree angle cutting. This tilt mechanism cutting makes it possible to cut a right angle square triangular prism into two prisms by using the special clamping devices installed at the table edge.

3. Grinding (grinding/arching)

The tilting mechanism with allows grinding angles from 0 to 90 degrees using various types of grinding blades. PROVISION of the Semi-automatic mode could help productive operations.

4. Variable Shape Grinding (shaping)

By using various grinding wheels shape, it is impossible to cut shape Curved edge, chamfered edge, internal holes (such as the sink) edge shaping and so on.

SPECIFICATIONS

MODEL: SLP&PM400	USA	International
Power Supply (3 Phase)	220 Volt	380 Volt
	21A	12A
	60Hz	50Hz
Spindle Speed (Inventer Control)	0 - 3400 rpm.	0 - 3400 rpm.
Travelling Speed (Inventer Control)	0 - 256 in/min	0 - 6.5 m/min
Max. Processing Length	125 ¹⁵/₁₆''	3200 mm
Main Motor	5 kW	5 kW
Travelling Motor	0.4 kW	0.4 kW
Motor Up and Down	0.2 kW	0.2 kW
Machine Head Rotation	0 - 360 degree	0 - 360 degree
Overall Dimensions (L x W x H)	168 ¹/₈" x 53 ⁷/₁₆" x 54 ¹³/₁₆"	4270 x 1358 x 1382 mm
Net Weight	2425 lbs	1100 kg
Water Pump
Power (1 Phase)	110V/350W	220V/350W
