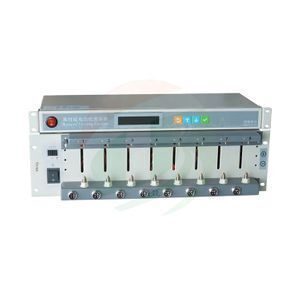

8 Channels Double Range Li ion Battery Tester For All Kinds Rechargeable Battery

Supplier: Xiamen Tob New Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Carol Huang
Price: $980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Standard export packing;	Model Number:	TOB-CT-4008-5V6A-S1;
Warranty:	One year limited warranty with lifetime support;	Export market:	Asia,Middle East,Europe and America,etc.;
Supply Ability:	10000 Set/Sets per Month Battery Capacity Testing Machines;	Per Unit Main Channels No.:	8;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Fujian China;
Max Steps Per Loop:	254;	Voltage source:	AC110V/220V;
Port:	xiamen;	Input Power:	425W;
Loop Measure Range:	1~65535 times;	Machine name:	Li ion Battery Tester;
Brand Name:	TOB;

8 Channels Double Range Li ion Battery Tester For All Kinds Rechargeable Battery

Product Description

SPECIFICATION:

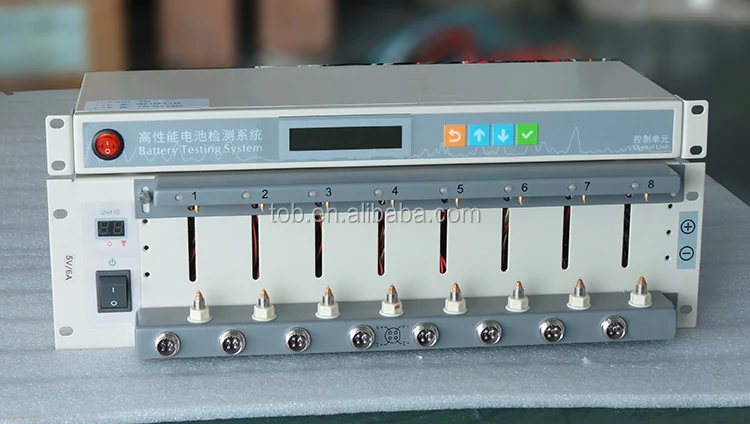

1 TOB-CT4008-5V6A-S1 Battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 0.5 mA to 6000 mA, up to 5V.

2 This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

3 TOB-CT-4000 Testing system has more quick sampling speed, attached with DC Resistance testing function. It also add with Channel parallel function which can enlarge the current up to twice of the normal range.

4 If you use this tester to test Super capacitor, please choose the model TOB-CT-4008-S1-F, with the min discharge voltage up to 0 V, Suitable for super capacitor, NI-MH battery, Nickel-chromium battery and all kind of rechargeable battery testing.

Model		TOB-CT-4008-5V6A-S1
Input Power		AC 220V ±10% / 50Hz
resolution		AD:16bit;DA:16bit
Input Resistance		≥1MΩ
Input Power		425W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Constant Voltage Range	25mV~5V
	Discharge Min Voltage	The upper and lower clamps can be discharged to 1.0V and the 2m line can reach 1.5v.
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Per Channel Current Range	Range 1: 0.5mA-0.1A, Range 2: 0.1A-6A
	Accuracy, Stability	± 0.05% of FS
	Cut-off Current for Constant Voltage	Range 1:0.2mA, Range 2: 12mA
Power	Per Channel Output Power	30W
Power	Stability	± 0.1% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms)
Data Recording	Record Condition	Minimum Time Interval: 100ms
		Minimum Voltage Interval: 10mV
		Minimum Current Interval : Range 1:0.2mA, Range 2: 12mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,CPC
Charge	End Condition	Voltage,Current,Relative Time,Capacity,-ΔV
Discharge	Discharge Mode	CCD,CPD,CRD
Discharge	End Condition	Voltage,Current,Relative Time,Capacity,-ΔV
Pulse	Charge	CCC, CPC
	Discharge	CCD, CPD
	Min Pulse Width	500ms
	Pulse Number	A single pulse operator supports 32 different pulses.
	Automated Switch	Automated switch from charge to discharge for each pulse
	End Condition	Voltage, Relative Time
DCIR		Support
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	l Power-down Data Protection
		l Off-line Testing Function
		l Setting Protection Condition,Setting Parameter: Low Voltage limit,Upper Voltage limit,Low Current limit, Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL,TXT,Graph
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8
Dimensions		3U,482508378(mm)

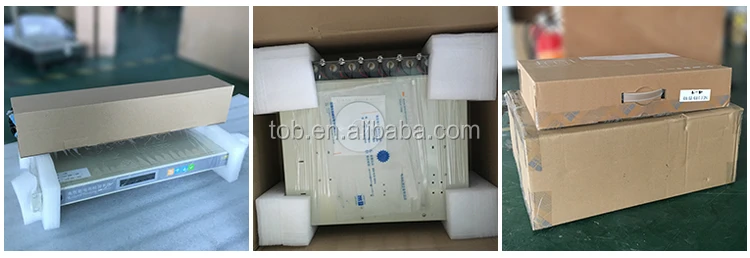

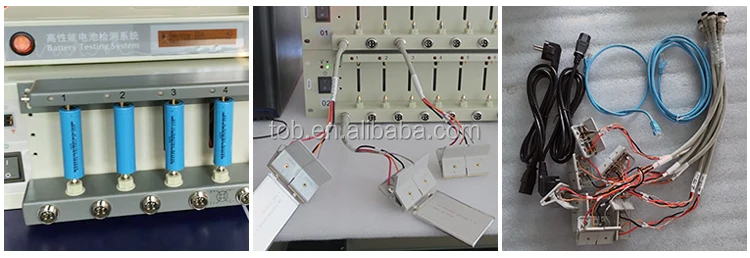

5V6A Battery Tester Package List

Item	Qty
Lithium battery tester CT-4008-5V6A-S1	1 set
Battery tester controller	1 set
Cylinder cell testing clamp	8 pcs
Pouch cell testing clamp or alligator clip	8 pcs
Software CD	1 pcs
Required Power line	2 pcs
Web line	2 pcs
