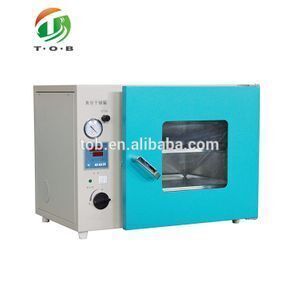

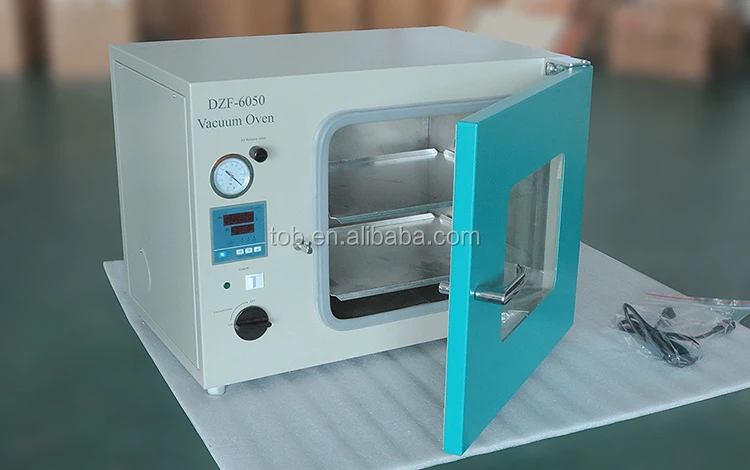

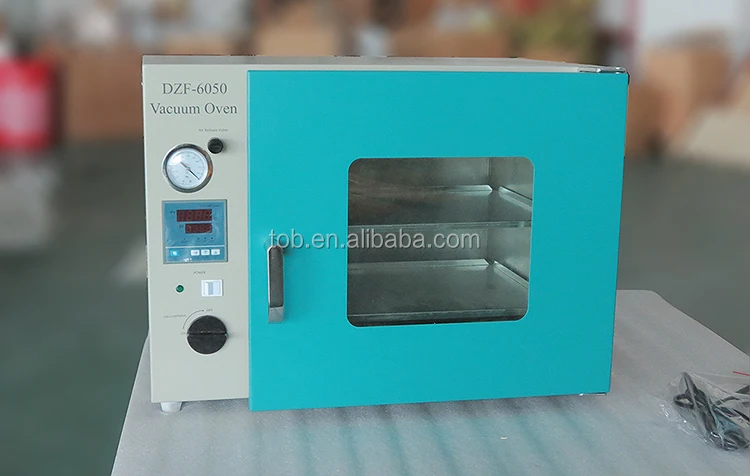

DZF-6050 Laboratory Small Vacuum Drying Oven Used For Lithium Battery Electrode Baking

Supplier: Xiamen Tob New Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Ms Carol Huang
Price: $750.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	xiamen;	Type:	Li-ion battery lab research machine;
Classification:	Lab Drying Equipment;	Related certification:	SGS,ROHS,UL,CE;
Supply Ability:	10000 Set/Sets per Month Small Vacuum Oven;	Model Number:	TOB-DZF6050;
Temperature range:	RT+10-250℃;	Export market:	Asia,Middle East,Europe and America,etc.;
Related industry:	Lithium ion battery;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Source voltage:	AC 220V/110V, 50HZ;	Packaging Detail:	Standard export packing for Small Vacuum Oven;
Delivery Detail:	10-15days after confirmed payment or by contract stipulation;	Inner box size(LWH):	415345370mm;
Brand Name:	TOB;	Power:	1400W;
Machine name:	Small Vacuum Oven;	Vacuum degree:	≤133Pa;
Place of Origin:	Fujian China (Mainland);

DZF-6050 Laboratory Small Vacuum Drying Oven Used For Lithium Battery Electrode Baking

Product Description

SPECIFICATION:

1 The DZF-6050 Vacuum Drying Oven Is mainly used For scientific research units, specialty universities, laboratories, industrial mining enterprises etc and production field for materials drying and heat treatment under the vacuum state.

2 The DZF-6050 Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.

3 Use DZF-6050 Vacuum drying oven for material heating drying under vacuum states has advantages :

3.1 Can reduce the drying temperature

3.2 Avoid some objects heating to oxidation

3.3 Avoid heating air to kill living cells

3.4 No dust damage

Model	Vacuum Drying Oven TOB-DZF-6050
Source voltage	110VAC or 220VAC +/-10% selectable
Power	1400W
Warranty	One Year Limited Manufacture Warranty with Life Time Support
Temperature range	RT+10-250℃
Temperature fluctuation	±0.5℃
Vacuum degree	-0.1MPa
Inner box size(LWH)	415345370mm
Dimension(LWH)	710560550mm
Package size	650850700mm
Temperature controller	1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray
Box door	Toughened Bulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	2pcs 1 Solid stainless steel shelf, guarantee the oven temperature 2 Mesh stainless steel shelf can be also chosen
