2L 5L 10L 20L Short Path Distillation with Vacuum Pump Heating System

Supplier: Zhengzhou Keda Machinery And Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Alice Lee
Price: $573.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO;	Application Industries:	Chemical Industry;
Warranty:	1 Year;	Single package size:	69X55X39 cm;
Rotating Speed:	0-140 rpm;	Condition:	New;
Package Preview:	https://sc01.alicdn.com/kf/H06eab00c9cd54aaaa64a2b10f27eaae8X.jpg_640x640.jpg;	After-sales Service Provided:	Engineers available to service machinery overseas;
Vacuum degree:	0.098Mpa;	Material:	Stainless Steel;
Power(W):	120W;	Power Source:	Electric;
Temperature Control range:	0-99 ℃;	Selling Units:	Single item;
After-sales Service Provided:	Online support;	Water Bath Power:	3000W;
Control screen:	Digital Display;	Product name:	2L 5L 10L 20L Short Path Distillation with Vacuum Pump Heating System;
Package Type:	2L 5L 10L 20L Short Path Distillation: Be packaged by carton box or wooden case.;	Weight:	15kg;
Brand Name:	ZZKD;	Place of Origin:	Henan China;
Applicable Industries:	Manufacturing Plant;	Voltage:	220V/50HZ;
Dimension(LWH):	650470550 mm;	Process:	Vacuum Distillation;
Evaporation Speed:	>3 L/h;	Single gross weight:	26 KG;

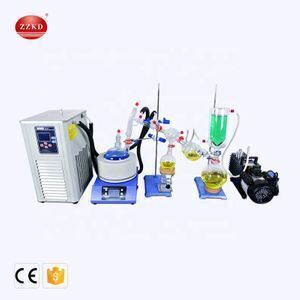

2L 5L 10L 20L Short Path Distillation with Vacuum Pump Heating System

Product Description

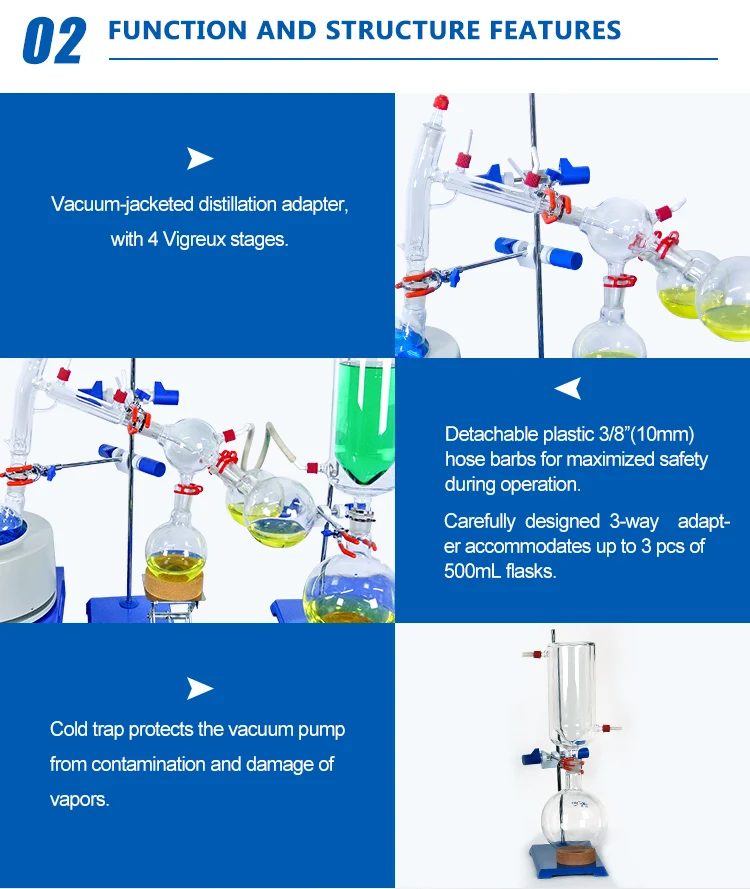

The Short Path Distillation with Vacuum Pump Heating System is an economical bench top-scale short path distillation kit, specifically assembled to compete with low-budget market options. When trying to separate compounds having a complete turn-key system which includes all stands, clamps, hoses, connectors, and accessories necessary to perform distillations efficiently and with ease is of importance. The unit has a built in PID controller for control over such things as temperature setting and a knob for spin control, which allows adjustment over the spin vane in the system.

Advantages of Short Path Distillation:
The advantage is that the heating temperature can be considerably lower (at reduced pressure) than the boiling point of the liquid at standard pressure, and the distillate only has to travel a short distance before condensing. A short path ensures that little compound is lost on the sides of the apparatus.

Technical Parameter

Short - range distillation supports customization, models include 2L,5L,10L,20L. Welcome to contact us.

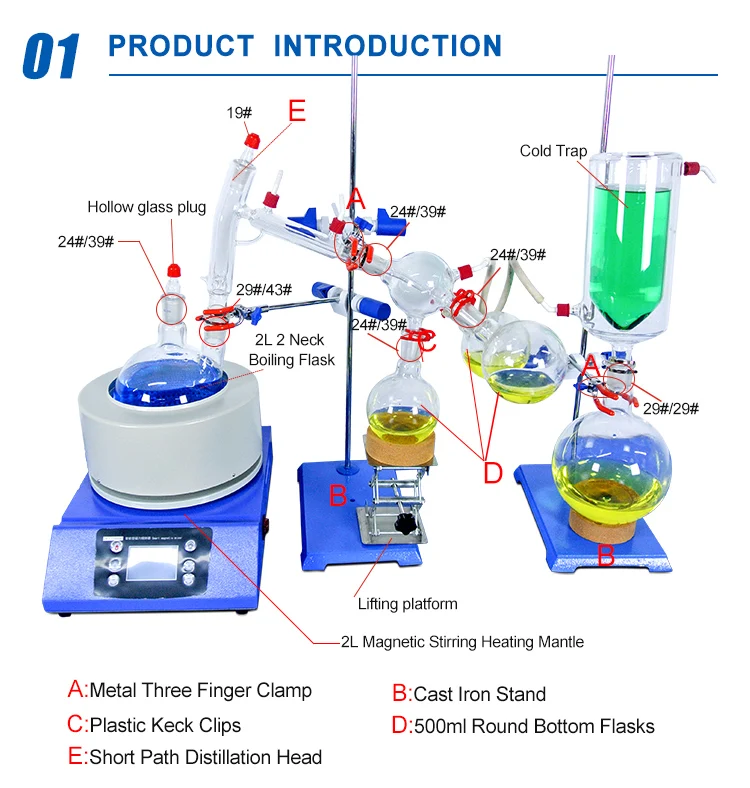

Model	Parts name	Parts number
2L short path distillation	2000 ml Digital Heating Mantle	1
	2000 ml 2 Neck Boiling Flask	1
	Short Path Distillation Head	1
	Cow Receiver	1
	500 ml Round Bottom Flasks	3
	Plastic Keck Clips	7
	Cast Iron Stand	1
	Metal Three Finger Clamp	1

Model	Parts name	Parts number
5L short path distillation	5000 ml Digital Heating Mantle	1
	5000 ml 2 Neck Boiling Flask	1
	Short Path Distillation Head	1
	Cow Receiver	1
	500 ml Round Bottom Flasks	3
	Plastic Keck Clips	7
	Cast Iron Stand	2
	Metal Three Finger Clamp	1

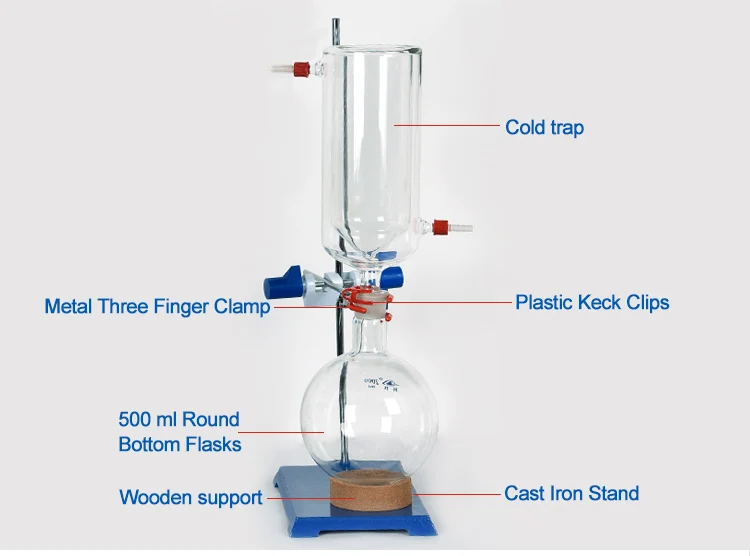

	Cold trap	1
	PTFE magnetic stirring bar	1
	Lifting platform	1
	backing ring	1

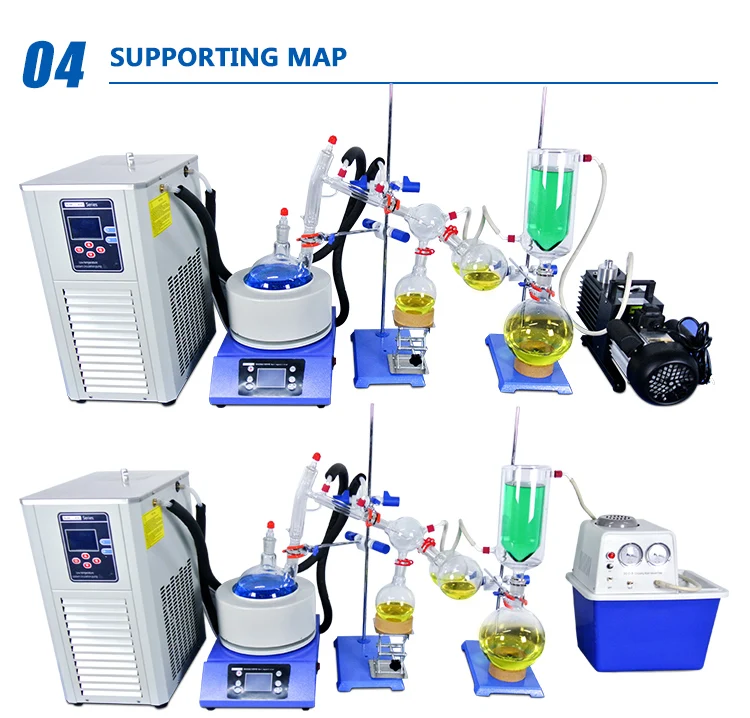

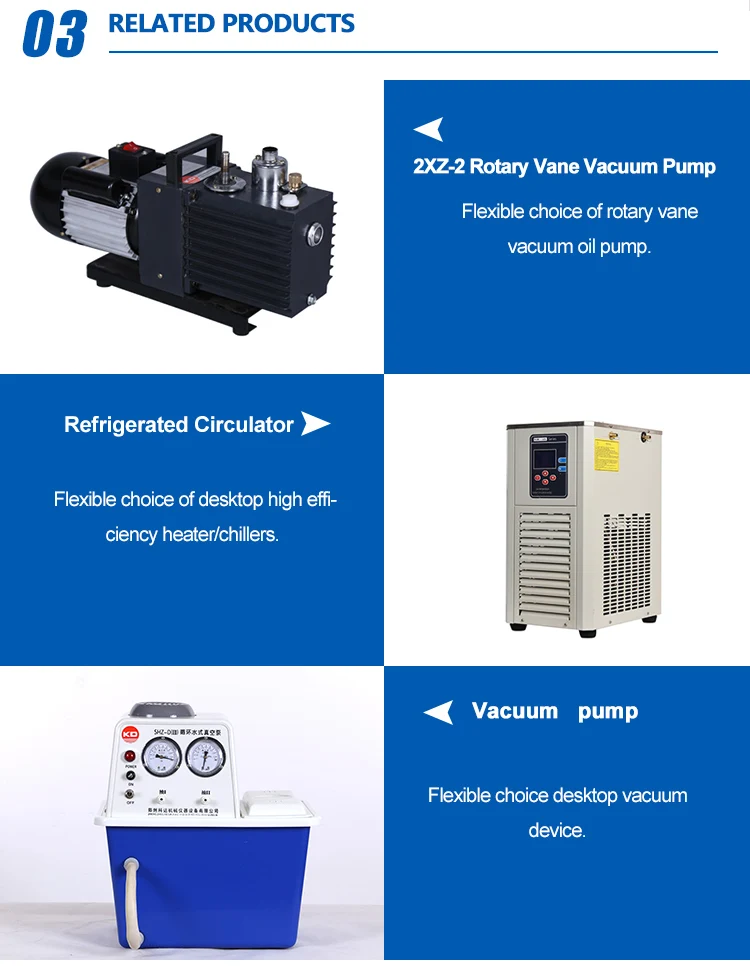

Colloary equipment for Short Path Distillation with Vacuum Pump Heating System:

Refrigerator circulator: for condensation and reducing waste of materials
2Xz Rotary vacuum pump: provide vacuum source
Magnetic Heating mantle: for energy saving heating

Click for more products:

SEND INQUIRY

Packaging & Shipping

Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.

Company Information

Company introduction:

Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation.

Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America

Please click on the picture:

FAQ

1. What can do with the rotary evaporator?
Mainly Vacuum distillation.
2. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you demand.
3. What's the minimum order quantity?
No limited at present.
