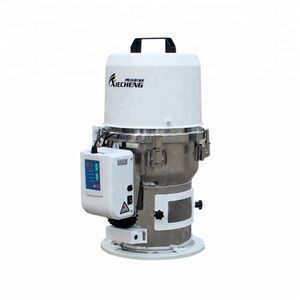

High efficiency standard alone auto plastic material loader

Click here to contact

Product details

Application:	Plastic Industry;	Certification:	CE;
REservoir volume:	6 L;	Brand Name:	XIECHENG;
Static wind pressure:	1300 mm/h20;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
After-sales Service Provided:	Online support,Video technical support;	Dimension(LWH):	380280580mm;
Applicable Industries:	Manufacturing Plant;	Port:	Jiangmen/Guangzhou/Shenzhen;
Hopper:	stainless steel;	Voltage:	220V;
distance:	3.5m;	After-sales Service Provided:	Overseas service center available;
Supply Ability:	500 Set/Sets per Month;	Type:	Carbon brush;
Power(W):	1100;	Condition:	New;
Warranty:	1 Year;	Packaging Detail:	Standard plywood case or customized;
Weight:	12kg;	output:	300kg/h;
Specification:	1.1kw/1.3HP;	Place of Origin:	Guangdong China;
pipe inside diameter:	38 mm;	Dimension:	382858 mm;

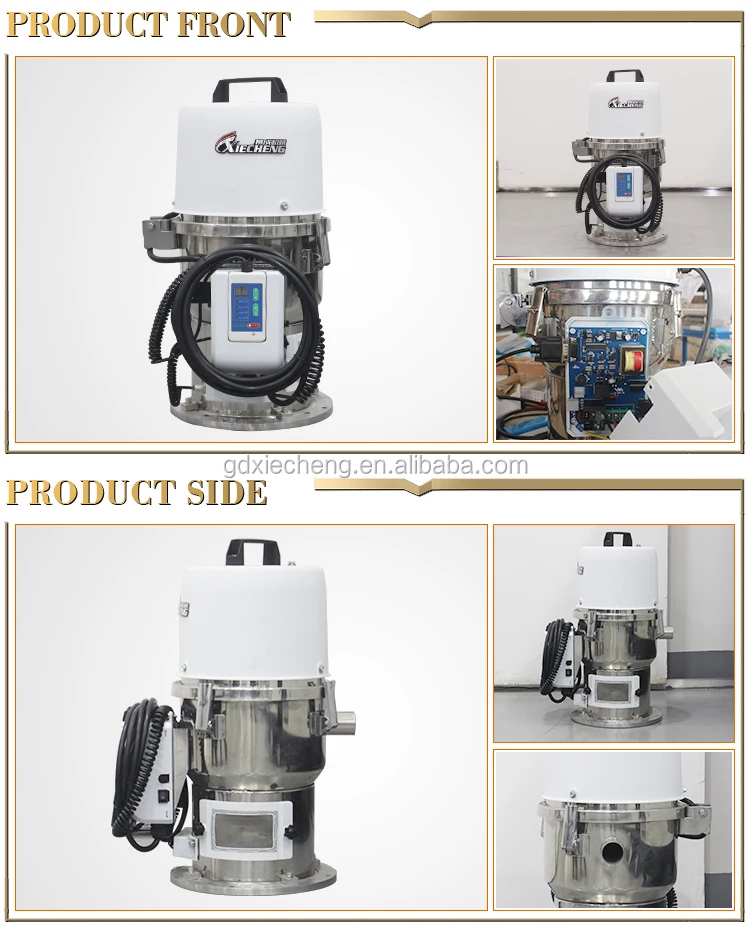

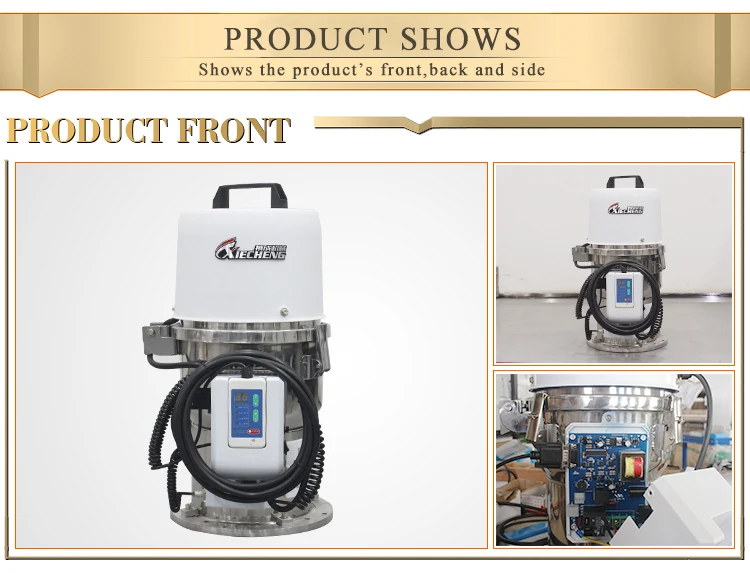

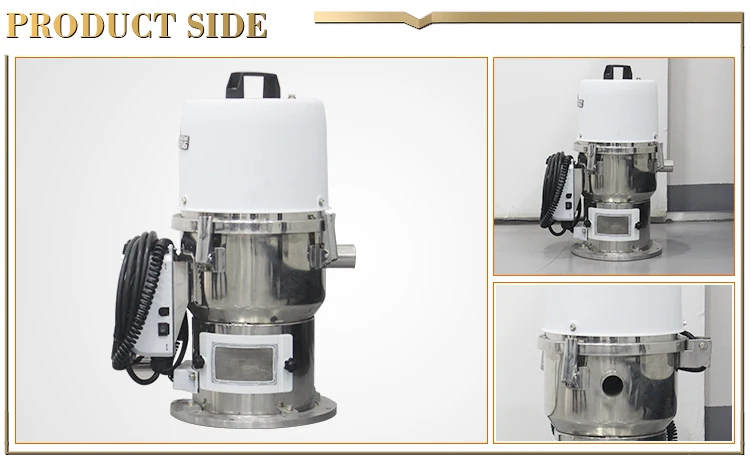

High efficiency standard alone auto plastic material loader

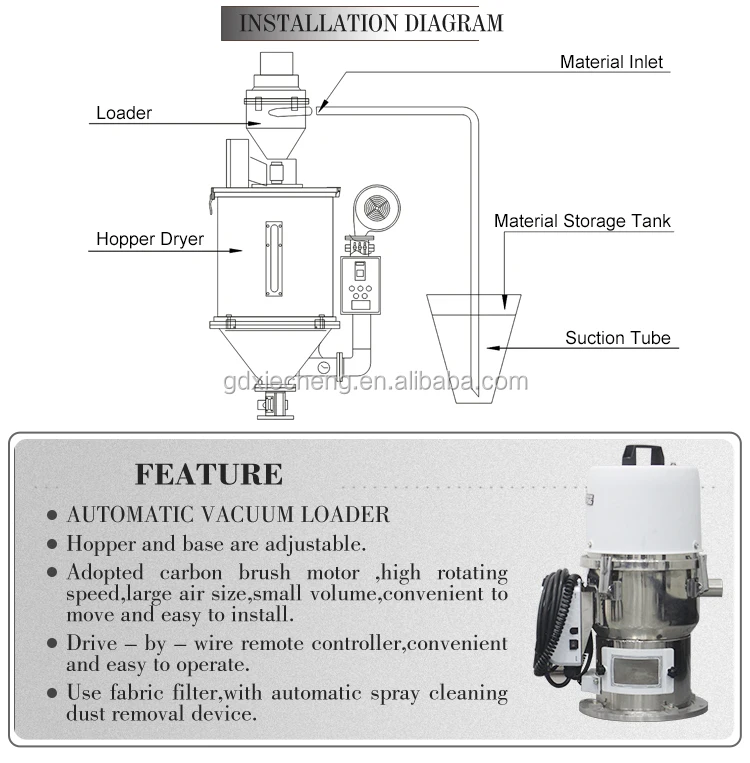

With small footprint and low weight, available placed directly onto other machines or containers for auto loading.

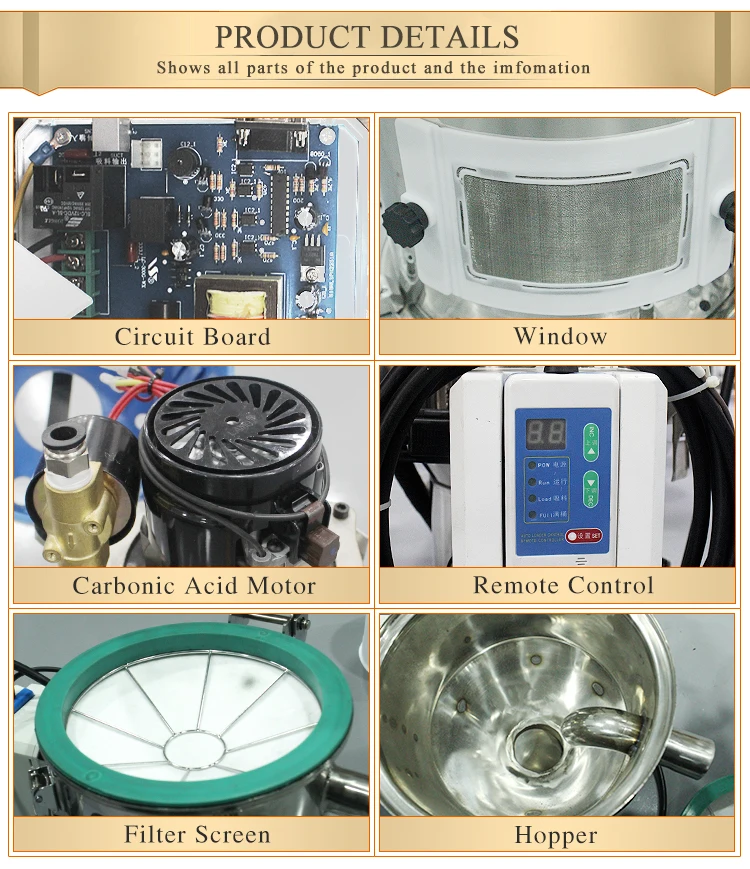

Microcomputer controlled.

Alarm for overload and lack of material.

300G equipped with high – speed rectifier motor with delicate size and strong suction force – suitable for new materials.

400G with induction high pressure pump – with low noise and long service time.

Cable control board design – easy to set and control with distance.

Filter for air and dust (Optional part).

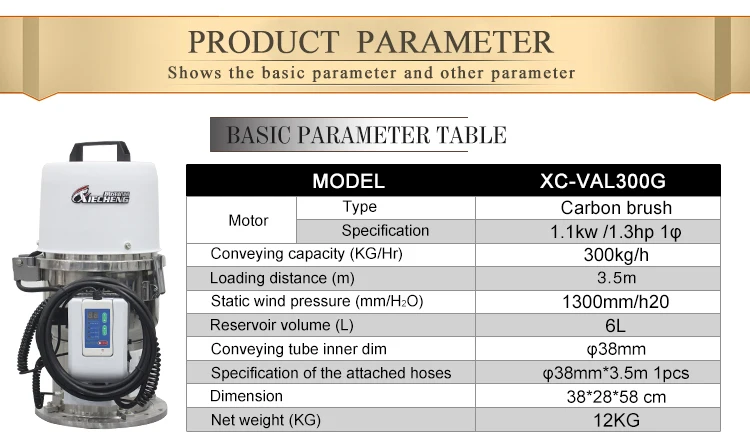

Model		XC-X300G	XC-X400G
Motor	Type	Carbon Brush	Induction
Motor	Specification	1.1kw/1.3hp 1φ	0.75kw/1hp 3φ
Conveying capacity(kg/hr)		300	330
Loading distance(m)		3.5	4
Static wind pressure(mm/H₂O)		1300	1400
Reservoir volume(L)		7.5	7.5
Conveying tube inner diameter(mm)		φ38	φ38
Specification of the attached hoses		φ38mm×3.5m 1pcs	φ38mm×4mm 1pcs
Dimensions(cm)		34×34×59	45×37×66
Approx. Net weight (kg)		12	27
