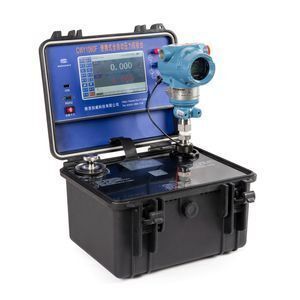

Precision digital pressure calibrator with HART

Product details
Pressure range:(-1~600)bar;Accuracy:0.05%; 0.02%;
Payment Terms:L/C,T/T,Western Union;Model Number:CWY300;
Place of Origin:Shaanxi China;Port:xi'an or Shanghai;
Applications:pressure instrument calibration;Packaging Detail:specific case;
Supply Ability:100 Piece/Pieces per Month;Brand Name:Creat Wit;
Name:pressure calibrator;
Product Description
 CWY1060-the intelligent digital pressure calibrator is developed and manufactured by with independent intellectual property right, it is mainly used for calibrate pressure transmitters, pressure switches (controllers), the general pressure gauges, precise pressure gauges, blood pressures, or other pressure instruments, and can also be widely used in the precise measurement of pressure.
It can be used with CWY automatic pressure calibration station as its external pressure module, communicate with TMMS2000 and automatically print verification report.

Specification:
   Model:CWY1060
   Pressure measuring range: -100kPa~60MPa,
   Accuracy: 0.02%F.S,   0.05%F.S,  0.1%F.S,  0.2%F.S
   Current measuring range: (0~22)mA  accuracy: 0.02,  0.05
   Voltage measuring range: (0~5.5)V,  accuracy: 0.05
   Resistance measuring range: (0~20)Ω, accuracy: 1
   The built-in power supply DC24V
   Calibration results memory: 28/56 files, 40pcs record/file. 20pcs before and after adjustment
   Clock function

Ambient conditions:
a. Temperature: (-5~50)℃;
b. RH(relative humidity): <95%;

c. Atmospheric pressure: (86~105) kPa
d: Compensation temperature: (-5~50)℃
e: Storage temperature: (-30~80)℃

Features:
 Pressure unit: kPa, psi, inHg, inH2O, mmHg, mmH2O, MPa, bar, mbar, atm, kgf/cm2, , Pa, total 12 options
 Pressure overload: It will display overload and warn when pressure measurements are over 110% F S.
  Display: LCD screen with white backlight, 5 digits display

  Power supply mode: 3.7V/3500mAH Lithium battery
  Auto power-off: Auto power-off after 20 minutes if there is no operation and the pressure change is less than 1% of the range within 1 minute.
  Communication serial port configuration:
 Baud rate: 57600;  check bit: no,   data bits: 8 bits;    stop bits: 1 bit;


Size:
 External dimension: gauge head:φ108mm×43mm, overall length: 170mm
 Weight: about 0.6kg;
 Pressure connection: M20×1.5 (user defined eg. NPT);
 Φ6mm quick socket(differential pressure model);
 Power connection: φ6 standard banana plug;

Additional function: temperature test with ±0.1℃


Packaging & Shipping



Our Services


Pressure instruments manufacturing, OEM service;
Pressure solutions for lab and field.

Company Information


We are top pressure instruments manufacturer in China, founded in 2006.
Our products includes: deadweight testers; pressure gauges; pressure calibrators; pressure pumps and pressure benches, etc,.
