Automatic pressure calibrator with HART

Supplier: Shaanxi Creat Wit Technology Co., Ltd.
Region: Shaanxi, China
Contact: Ms Lani Hu
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Port:	xi'an or Shanghai;

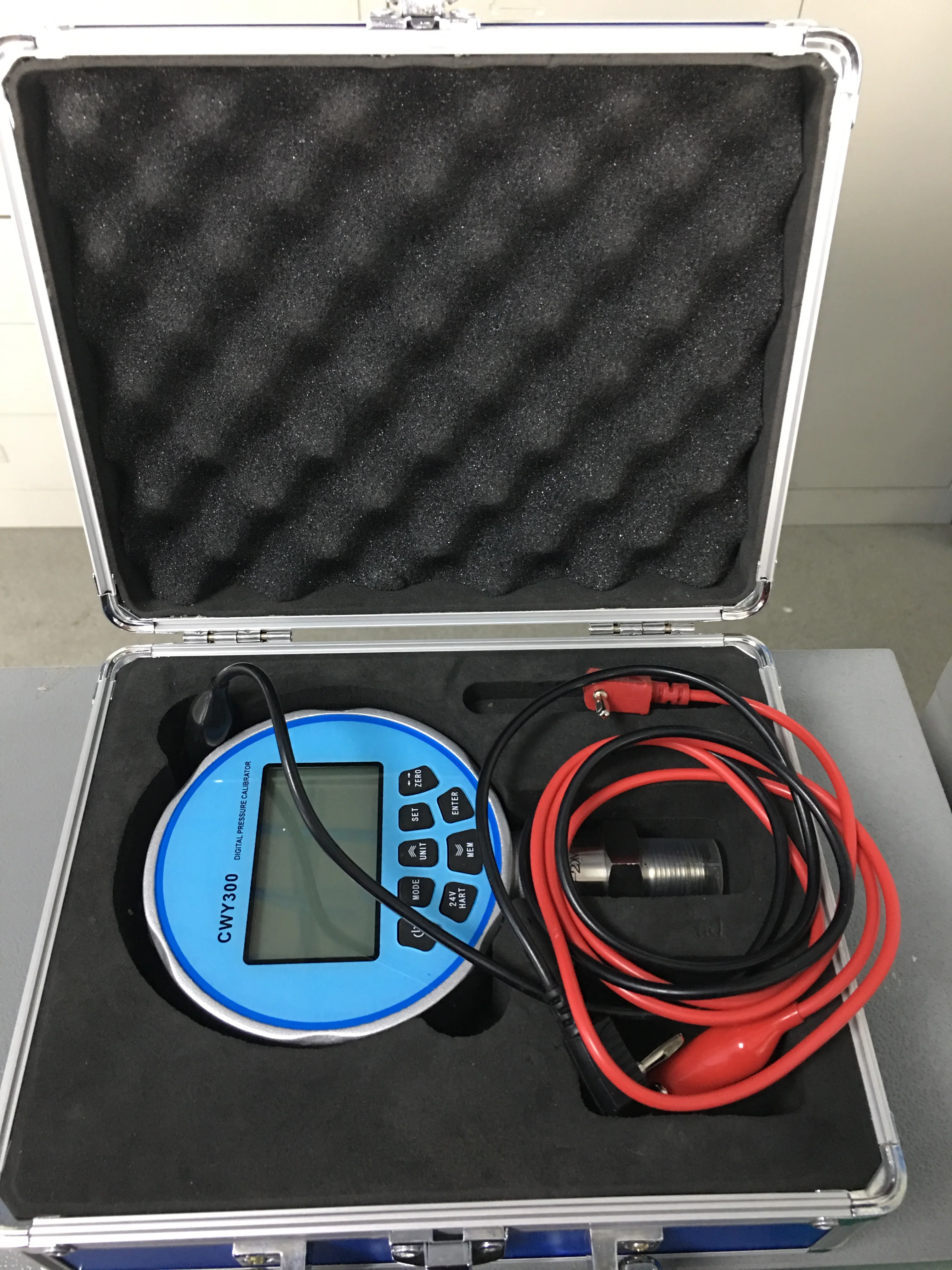

Applications:	pressure instrument calibration;	Packaging Detail:	specific case;
Name:	pressure calibrator;	Model Number:	CWY300;
Supply Ability:	100 Piece/Pieces per Month;	Brand Name:	Creat Wit;
Accuracy:	0.1%; 0.05%; 0.02%;	Pressure range:	(-1~2500)bar;
Place of Origin:	Shaanxi China;

Product Description

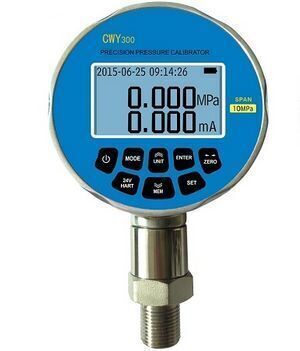

CWY300-the intelligent digital pressure calibrator is developed and manufactured by with independent intellectual property right, it is mainly used for calibrate pressure transmitters, pressure switches (controllers), the general pressure gauges, precise pressure gauges, blood pressures, or other pressure instruments, and can also be widely used in the precise measurement of pressure.
It can be used with CWY automatic pressure calibration station as its external pressure module, communicate with TMMS2000 and automatically print verification report.

Specification
Model:CWY300
   Pressure measuring range: -100kPa~60MPa,
   Accuracy: 0.02%F.S,   0.05%F.S, 0.1%F.S, 0.2%F.S
   Current measuring range: (0~22)mA accuracy: 0.02, 0.05
   Voltage measuring range: (0~5.5)V, accuracy: 0.05
   Resistance measuring range: (0~20)Ω, accuracy: 1
   The built-in power supply DC24V
   Calibration results memory: 28/56 files, 40pcs record/file. 20pcs before and after adjustment
   Clock function

Ambient conditions
a. Temperature: (-5~50)℃;
b. RH(relative humidity): <95%;
c. Atmospheric pressure: (86~105) kPa
d: Compensation temperature: (-5~50)℃
e: Storage temperature: (-30~80)℃

Features
Pressure unit: kPa, psi, inHg, inH2O, mmHg, mmH2O, MPa, bar, mbar, atm, kgf/cm2, , Pa, total 12 options
Pressure overload: It will display overload and warn when pressure measurements are over 110% F S.
Display: LCD screen with white backlight, 5 digits display

Power supply mode: 3.7V/3500mAH Lithium battery
Auto power-off: Auto power-off after 20 minutes if there is no operation and the pressure change is less than 1% of the range within 1 minute.
Communication serial port configuration:
Baud rate: 57600; check bit: no,   data bits: 8 bits;    stop bits: 1 bit;

Size
External dimension: gauge head:φ108mm×43mm, overall length: 170mm
Weight: about 0.6kg;
Pressure connection: M20×1.5 (user defined eg. NPT);
Φ6mm quick socket(differential pressure model);
Power connection: φ6 standard banana plug;

Additional function: temperature test with ±0.1℃
