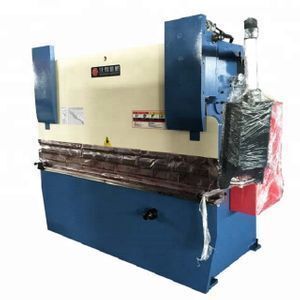

WC67Y Chinese new brand hydraulic press brake price
- 9000.00 unit
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| After-sales Service Provided: | Engineers available to service machinery overseas; | Brand Name: | WORLD; |
| Certification: | ISO 9001:2000; | Place of Origin: | Jiangsu China; |
| Model Number: | WC67Y; | Table length: | 2500mm to 6000mm; |
| Model: | hydraulic press brake machine price; | pres brake price: | hydraulic pres brake price; |
| Material / Metal Processed: | Stainless Steel; | Condition: | New; |
| Raw Material: | Sheet / Plate Rolling; | Warranty: | 12 Months; |
| Product name: | customized cnc hydraulic press brake die for sale; | Name: | hydraulic press brake price; |
| Port: | Shanghai; | Color: | Customer; |
| Supply Ability: | 2000 Unit/Units per Year hydraulic press brake manufacturer; | Extra Services: | End Forming; |

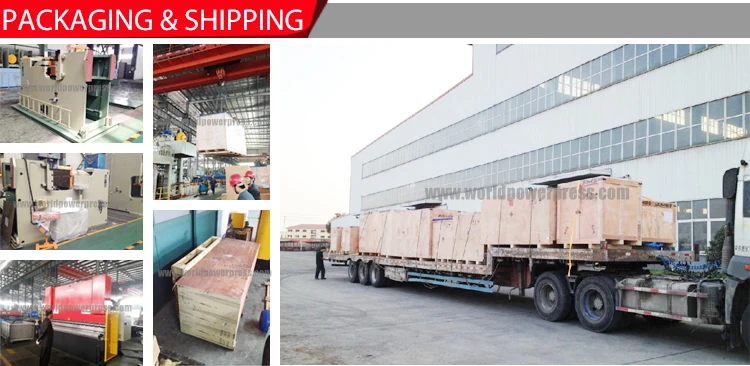

| Packaging Detail: | in open top container hydraulic press brake manufacturer; | Application: | Carbon Steel; |
| Type: | Hydraulic Bending Tools; | Voltage: | 220V/380V/415V/440V/customized; |
| Power: | Hydraulic; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Machine Type: | Press Brake; | Automation: | Automatic; |
| Delivery Detail: | 30 days; |
|
+
| Items | unit | 63/2500 | 63/3200 | 100/2500 | 100/3200 | 100/4000 | 125/2500 | 125/3200 | 125/4000 | 160/2500 | 160/3200 | 160/4000 |
| Nominal pressure | kN | 630 | 630 | 1000 | 1000 | 1000 | 1250 | 1250 | 1250 | 1600 | 1600 | 1600 |
| Length of table | mm | 2500 | 3200 | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 |
| Distance between uprights | mm | 2050 | 2600 | 2050 | 2600 | 3300 | 2050 | 2600 | 3200 | 2050 | 2600 | 3400 |
| Throat depth | mm | 250 | 250 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Ram stroke | mm | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | 200 | 200 | 200 |
| Max. open height between ram and table | mm | 345 | 345 | 415 | 415 | 415 | 415 | 415 | 415 | 470 | 470 | 470 |
| Adjustment of Ram stroke | mm | 75 | 75 | 120 | 120 | 120 | 120 | 120 | 120 | 160 | 160 | 160 |
| Approach speed | mm/s | 90 | 90 | 120 | 120 | 120 | 110 | 110 | 110 | 100 | 100 | 100 |
| Bend speed | mm/s | 8 | 8 | 13 | 13 | 13 | 10 | 10 | 10 | 9.5 | 9.5 | 9.5 |
| Return speed | mm/s | 66 | 66 | 115 | 115 | 115 | 100 | 100 | 100 | 95 | 95 | 95 |
| Main motor | kW | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 11 | 11 | 11 |
| Overall dimension ( LxWxH ) | mm | 2560 | 3260 | 2650 | 3350 | 4150 | 2650 | 3350 | 4150 | 2560 | 3260 | 4060 |
| 1725 | 1725 | 1785 | 1785 | 1785 | 1785 | 1785 | 1785 | 1940 | 1940 | 1940 | ||
| 2280 | 2280 | 2460 | 2510 | 2560 | 2540 | 2560 | 2610 | 2660 | 2660 | 2660 | ||
| Weight | kg | 4400 | 5200 | 6100 | 7000 | 79000 | 6600 | 7300 | 8800 | 9000 | 9600 | 11800 |
| Items | unit | 200/3200 | 200/4000 | 250/3200 | 250/4000 | 300/3200 | 300/4000 | 400/3200 | 400/4000 | 400/5000 | 500/4000 | 500/5000 |
| Nominal pressure | kN | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 | 5000 |
| Length of table | mm | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 | 5000 | 4000 | 5000 |
| Distance between uprights | mm | 2600 | 3700 | 2600 | 3200 | 2600 | 3200 | 2600 | 3200 | 4000 | 3200 | 4000 |
| Throat depth | mm | 320 | 320 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Ram stroke | mm | 200 | 200 | 250 | 250 | 250 | 250 | 300 | 300 | 300 | 300 | 300 |
| Max. open height between ram and table | mm | 520 | 520 | 560 | 560 | 560 | 560 | 630 | 630 | 630 | 630 | 630 |
| Adjustment of Ram stroke | mm | 160 | 160 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Approach speed | mm/s | 90 | 90 | 100 | 100 | 90 | 90 | 90 | 90 | 90 | 80 | 80 |
| Bend speed | mm/s | 8.5 | 8.5 | 9.5 | 9.5 | 9 | 9 | 8 | 8 | 8 | 7 | 7 |
| Return speed | mm/s | 85 | 85 | 110 | 110 | 120 | 120 | 85 | 85 | 85 | 70 | 70 |
| Main motor | kW | 15 | 15 | 18.5 | 18.5 | 22 | 22 | 30 | 30 | 30 | 37 | 37 |
| Overall dimension ( LxWxH ) | mm | 3500 | 4150 | 3350 | 4150 | 3300 | 4150 | 3300 | 4150 | 5150 | 4150 | 5150 |
| 1940 | 1940 | 2000 | 2000 | 2100 | 2100 | 2260 | 2260 | 2260 | 2400 | 2400 | ||
| 2660 | 2900 | 2900 | 2970 | 3100 | 3150 | 3200 | 3400 | 3600 | 3600 | 3800 | ||
| Weight | kg | 12000 | 14800 | 14000 | 16000 | 18500 | 22000 | 23000 | 29000 | 35000 | 40000 | 57000 |
pres brake price

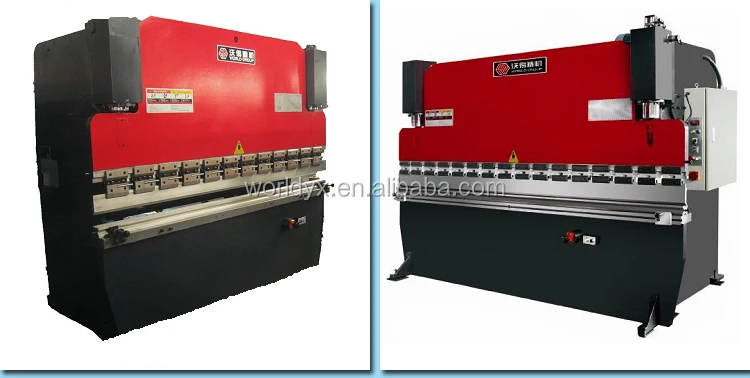

(WC67Y) specification
Features:
1. A fully welded steel construction with full strength and rigidity.
2. Hydraulic down-stroke construction.
3. Synchronizing mechanism of the ram adopting torque-tube and mechanical stop unit, stable and reliable.
4. Deflection-compensating mechanism of wedge construction.
5. Power fast adjustment, manual fine adjustment and counter-showing for the ram stroke.
6. Front-controlled backgauge by power fast-adjustment and manual fine-adjustment with counter display.

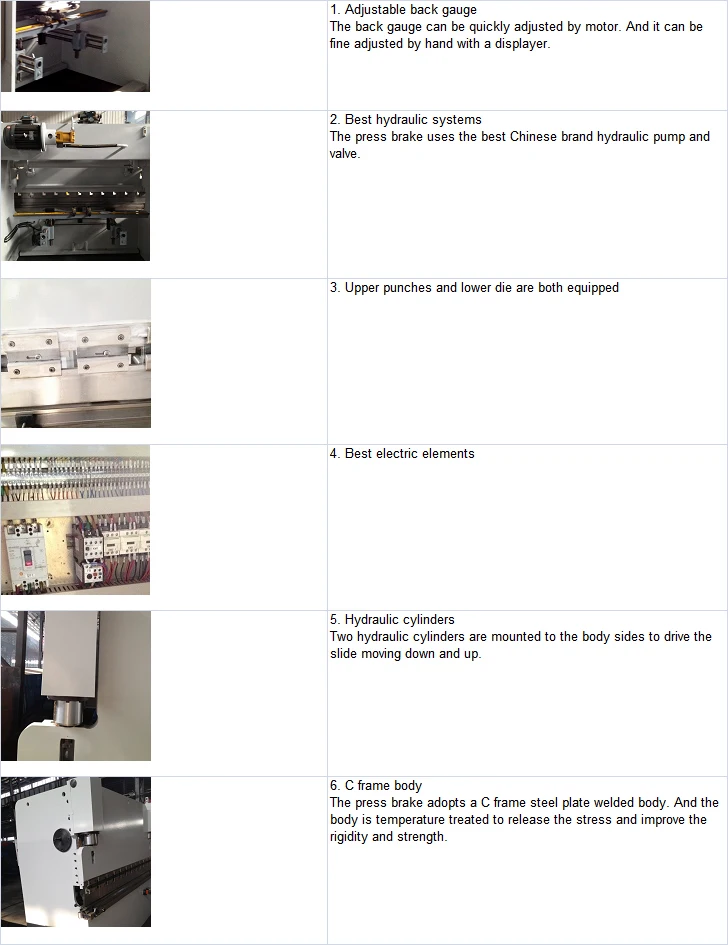

Details:
