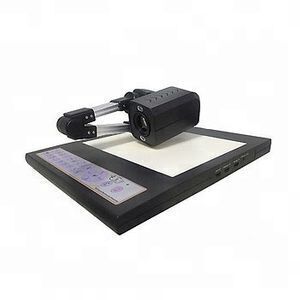

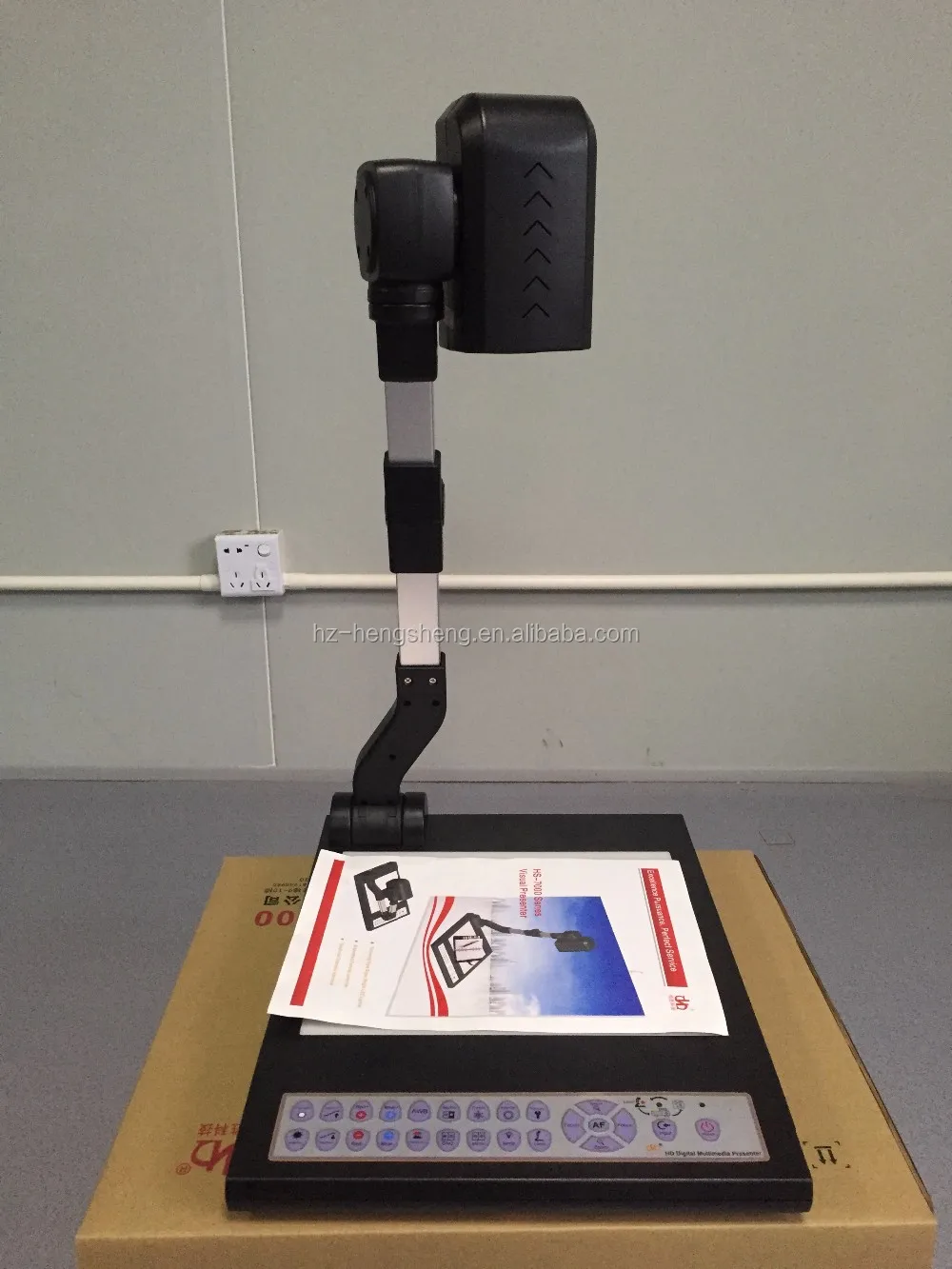

China portable visualizer HS-7320C USB VGA HDM(I) interface digital document scanner for education classroom
- 1.11 piece
| Interface: | VGA USB HDM(I); | Type: | Desktop Visualizer; |
| Model Number: | HS-7320C; | TV Line: | 1000; |
| 1080P: | Support; | Frame rate: | 24 fps; |
| Brand Name: | Hengsheng; | Defaul Resolution: | SXGA 1280*1024; |
| Payment Terms: | L/C,T/T,Western Union; | Port: | Shenzhen; |
| Certificate: | CE/FCC/ISO; | Pixel: | 3.2 Mega; |
| Supply Ability: | 8000 Piece/Pieces per Month; | Place of Origin: | Zhejiang China; |
| Packaging Detail: | 1 PCS Per Gift Box Gross Weight : 5.0KG Dimension: 485*220*405mm; | Warranty: | 12 Months; |
| Color: | Black; |
How it works
1, Connect circuit: connect projector and visualizer by VGA cable. Connect DC12V Adapter. The Power key and the input key lamp is on red.
2, Open the power: press the power key, the Power key lamp change to blue, the Start to operate the visualizer now.
3,Adjust camera: turn the camera to keep the object is in the center of the screen
4,Switch Function: if you want to use an external programming source, press the “Input”key to switch.
5,Close the power: press the Power key in 3seconds. The power key lamp change to red. The Input key lamp is out. The visualizer close.
| Specifications | ||
| Category | HS-7320C | |
| Optical | CMOS Size | 1/3’’ professional CMOS |
| Total Pixels | 3.2 Mega | |
| Line Resolution | 1000TVL | |
| Camera Head Rotation | 330 | |
| Frame Rate | 24 (fps) | |
| Shooting Area | 260×350mm max, 28 x 21mm min. | |
| Signal Noise Ratio(S/N) | 50 dB | |
| Lens(mm) | F=1.6-3.8.f=3.9-85.8mm | |
| Powered Zoom | 22×Optical/10× digital | |
| Focus | Auto/Manual | |
| Iris | Auto | |
| Lighting | Overhead Lamp | 3W*2 LED(100K lamp hours) |
| Lower Lamp | Built in LED lighting box 1W LED(100K lamp hours) | |
| Imaging | Brightness Adjustment | Auto/Manual |
| Video Signal | PAL/NTSC color system | |
| Resolution | SXGA (1280*1024) | |
| Colour/B&W Selection | Yes | |
| White Balance | Auto/Manual | |
| Auto Image Adjust | Yes | |
| Text/Graphics Enhancement | Yes | |
| Image Zoom | Yes | |
| Image Freeze | Yes | |
| Image Rotation | 360°(up/down)330°(left/right) | |
| (including 90° and 180° degree) | ||
| SHAPNESS Adjustment | Yes | |
| Colour (RED/BLUE) Adjustment | Yes | |
| Negative/Positive | Yes | |
| SCREEN DIV2 | Yes | |
| Terminals | VGA Input | VGA(DB15 FLC) ×1 |
| VGA Output | VGA(DB15 FLC) ×1 | |
| Video/Audio input | Audio;3.5Mini jack×1, Video :RCA×1 | |
| Video/Audio output | C-Video;RCA jack×1, Audio Mini jack ×1 | |
| RS-232 Connector | 1PC | |
| Power | 12V/2A DC adapter, 30W | |
| Temperature | -10°C--50°C | |
| Folded Dimensions(W*D*H) | 410x320x135mm | |
| Setup Dimensions(W*D*H) | 410x320x490mm | |
| Dimensions(W*D*H) | 515X440X250MM | |
| container (stack limit 8pcs ) | 495PCS/20" GP; 1035PCS/40'GP | |
| N.W./G.M. | 3.5KGS/ 6KGS | |

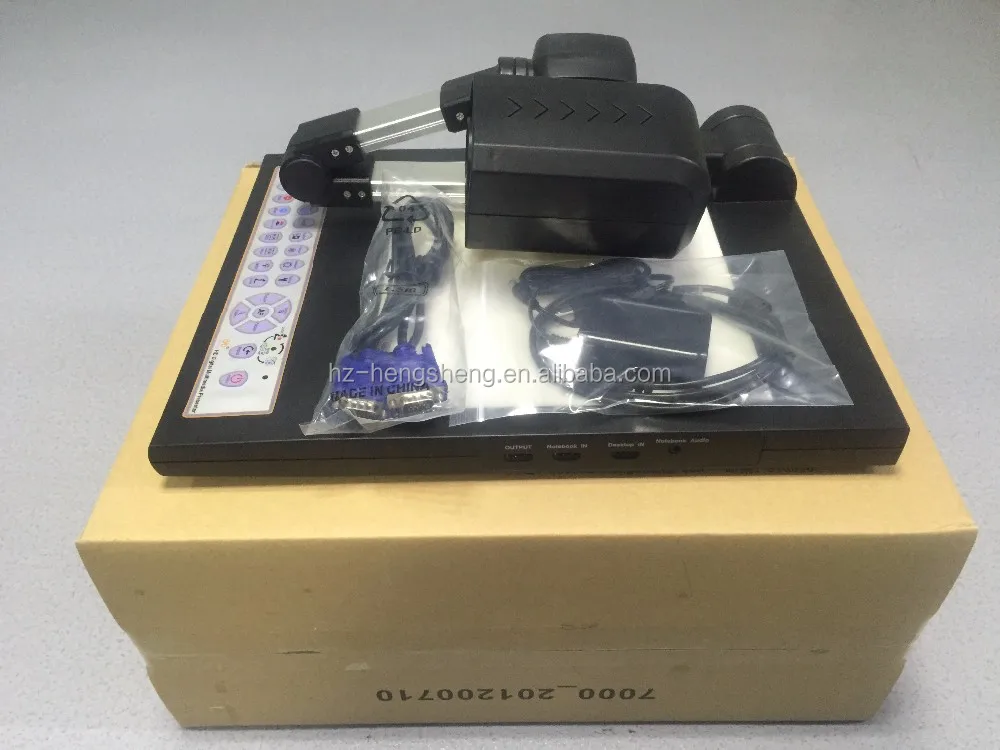

| Accessories | User's Manual, VGA Cable | |
| Warranty | 1 year (supply free parts for service in warranty) | |
| Optional functions | Remote controller need add extral cost $12/pc | |
| ·High resolution camera provide high quality image | |
| ·Resolution 3 200 000 pixels,1000 TV lines | |
| ·Optical zoom 22×: Digital zoom 10× | |
| ·Video 1 Input/1 Output, Audio 1 Input/ 1 Output | |
| ·VGA: 1 Input/ 1 Output | |
| ·CE & FCC Certificate approval | |
·1 HDM(I) output | |
1,What’s the minimum quantity of an order for your goods?
Normal order MOQ is 1 piece.
2,What’s the payment terms?
Payment term: T/T, Western Union, PayPal, Escrow .etc
3,How about your after-sales service?
We can provide accessories for free within 12 months.

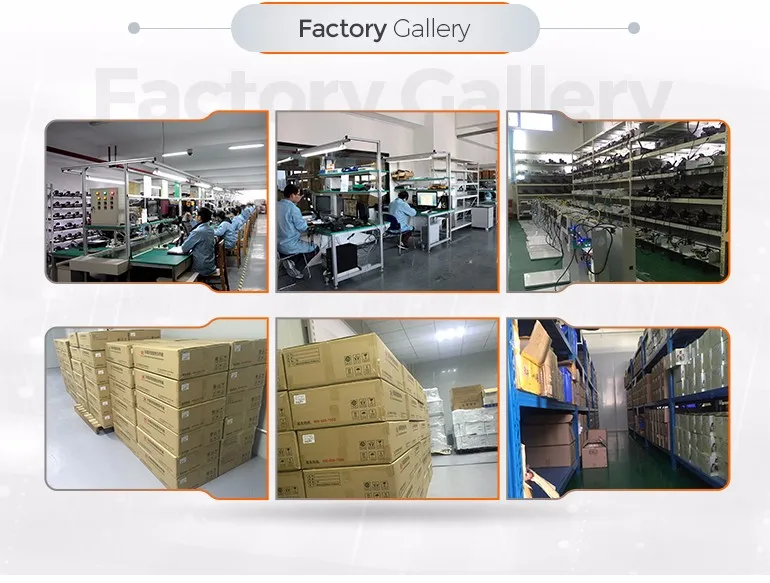

We are Top 3 manufacturer for visual education equipments over 15 years in China, please be free to contact me.
