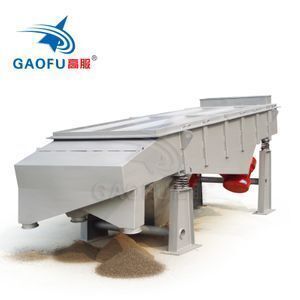

Q235A Carbon Steel Big Capacity Linear Sand Vibrating Sieve Machine

Supplier: Xinxiang Gaofu Machinery Co., Ltd.
Region: Henan, China
Contact: Ms mei He
Price: $1470.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Goafu;	Payment Terms:	L/C,T/T;
Application:	silica/quartz sand or other sand;	Weight:	1900Kg;
Model:	SZF-1040-2S-Q235A;	Port:	Tianjin / Shanghai / Qingdao;
Supply Ability:	10000 Set/Sets per Year linear vibrating sieve machine;	Layer:	2 layers;
Keyword:	vibrating sorting machine;	Warranty:	1 Year;
Screen mesh:	5-100 mesh;	Diameter:	145043001600MM;
Packaging Detail:	Rain-proof package or wooden case;	Applicable Industries:	Food & Beverage Factory,Energy & Mining;
After-sales Service Provided:	Online support,Field installation, commissioning and training;	Capacity:	3-5t/h;
Place of Origin:	Henan China;	Product name:	Vibrating Sorting Machine for Silica /Quartz Sand;
Power:	3.0Kw*2;

Q235A Carbon Steel Big Capacity Linear Sand Vibrating Sieve Machine

About the silica/quartz sand screening

Gaofu company committed to study silica/quartz sand screening, generally speaking, if your capacity is 3-5t/h, and the screen mesh is 16mesh, 18mesh, 24mesh, we usually suggest the SZF-1040 linear vibrating sorting machine. Of course, except the silica/quartz sand, this kind of machine also can be used to screen river sand, limestone, marble powder etc.

MORE PRODUCT SERIES

Brief Introduction of sand vibrating sieve

–Operating Principle

Linear vibrating sorting machine uses motor as the vibration source, making materials be tossed and move forward in a straight line on the screen. There are several balls on the bottom of screen frame hit each other when vibrating, which can clear screen and avoid blocking effectively.

Technical parameters of sand vibrating sieve

Technical Parameters

Model	Size (mm)	Material granularity(mm)	screen surface leanangle(°)	Amplitude (mm)	Layers	Power(kw)
SZF-520	500X2000	0.074-10	0°-7°	4-10	1-6	2x(0.4-0.75)
SZF-525	500X2500					2x(0.4-0.75)
SZF-1020	1000X2000					2x(0.4-0.75)
SZF-1025	1000X2500					2x(0.4-1.1)
SZF-1030	1000X3000					2x(1.1-1.5)
SZF-1040	1000X4000					2x(1.1-1.5)
SZF-1235	1200X3500					2x(1.1-2.2)
SZF-1250	1200X5000					2x(1.1-2.2)
SZF-1535	1500X3500					2x(1.1-2.2)
SZF-1565	1500X6500					2x(2.2-3.7)
SZF-1845	1800X4500	0.074-15				2x(2.2-3.7)
SZF-2050	2000X5000					2x(2.2-3.7)
SZF-2260	2200X6000					2x(2.2-3.7)

Features of sand vibrating sieve

♦ High screening efficiency, can be screened up to 200 mesh (0.074mm)

♦ Simple and convenient for changing and cleansing mesh screen

♦ Low noise and power consumption, easy maintenance

♦ Less blocking of mesh screen

♦ Automatic discharge of impurities and coarse materials, continuous operation

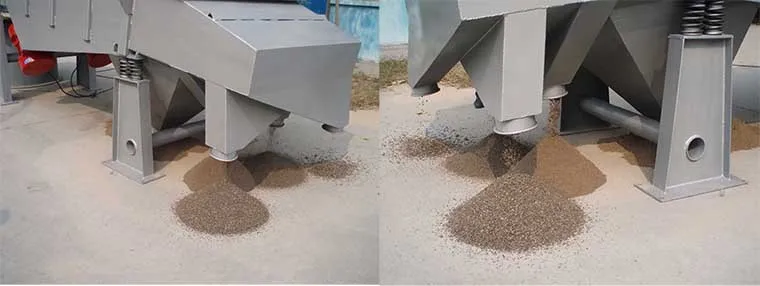

Product Details of sand vibrating sieve

Product Details

Gaofu Company adhering to the ideal of " Honest Service Highest Quality ", strictly control each process, every part strive to perfect.

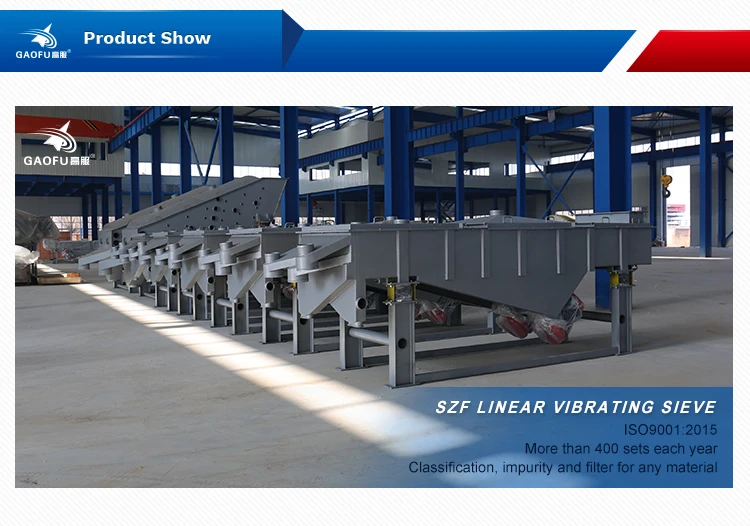

More machines picture

Packaging & Shipping

Packing & Shipping

Container storage according to the customer's requirements.

Customer worksite

Win-win Cooperarion

Certifications

Certificate

The company has passed the ISO9001:2008, CE, BV certification.

About Gaofu

Company Information

Gaofu company founded in 1982, 30 years of development history, gradually improve and integrated industrial chain;Main products include screening machinery, vibration equipment, crushed coal machinery, filtration equipment, dust removal equipment and other industries.With 56 national patents, is a design and production capacity of integrated machinery manufacturing company.

Our Team & Service

Basis service

1.Your sample material can be free analysis in our laboratory.

2.24 hours a week online & quick response within 12 hours.

3.Booking hotel and ticket for customers and Free transportation during visit our factory.

4. Production lead time and delivery time guaranteed.

Customized services

1.Professional R & D team to develop the new products as you requirements.

2.Help high-end customers to develop the local market

3.All packing and shipping can customized as per your requirements.

After-sale services

After customers received the goods,if have any questions or quality problems, Our customer service Dept. will be always available.

Customer Visit

Our customers came from different countries every year.

FAQ

1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every macchine before delivery.

2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3.How about price?
Yes, we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.

4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.

Tell me the following questions, Then I can send you accurate quotation soon, including additional discount!

Your email address and telephone will not be shared or published!

The proper selection of the vibrating screen depends on the material, mesh size, output required, method of input, abrasiveness of the material etc:

1. Material : _____

2. Moisture:_____%

3. Capacity: :________kg/ hour

4. Screen layer:_______

5. Screen mesh size:______ mesh . ______ mesh. ______ mesh

6. Voltage:______V, Frequency:______HZ, 3 phase

7. SS304/316L stainless steel or Q235A carbon steel?
