Dry wet pet food pellet processing making extruder machine dog food machine

Click here to contact
Product details
Certification:CE SGS;whatsapp:+86 15020006735;
Supply Ability:30 Set/Sets per Month dry pet food making machine dog food machine;Dimension(L*W*H):39000*2500*5000mm;
apply:pet ,dog ,fish ,cat food;type:wet or dry type;
wechat:15020006735;Weight:4000 Kg;
Packaging Detail:plywood case of Dry wet pet food pellet processing making extruder machine dog food machine;Applicable Industries:Manufacturing Plant,Farms,Retail;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;Application:Dog;
raw material:wheat flour,corn/rice powder,meat, fish meal;material:stainless steel;
Name:dry pet food making machine dog food machine;Condition:New;
Voltage:380V/50HZ;Power(W):Entire Line;
Port:Qingdao Port;Main motor:22, 30, 55, 75, 90, 115kw etc.;
Warranty:1 Year;Brand Name:Dingrun;
Capacity:100kg/h to 3000kg/h;Place of Origin:Shandong China;
After-sales Service Provided:Engineers available to service machinery overseas;After-sales Service Provided:Field installation, commissioning and training;
Related Products

                       Single screw extruder

                          twin screw extruder

Product Description
Continues Automatic dry pet food machine
Pet machine is suitable to make dry and wet type pet food pellet (dog food, cat food, fish food etc.)

1). All pet food equipments are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). Dingrun provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your require)

Flow chart:

grinding→mixing→extruding→drying→flavoring→cooling→packaging

Flow chart diagram:

Our engineer could design the layout drawing according to your dimension of the factory for the dog food machines.

Technical Parameter For Pet Food Extruder:

Model
Installed Power
(kw)
Power Consumption (kw)
Capacity
(kg/h)
Dimension
(m)
DSE65 processing line
74
52
120-180
17*1.2*2.2
DSE70 processing line
95
70
200-300
20*1.5*2.2
DSE75 processing line
110
82
250-400
26*1.5*2.2
DSE85 processing line
139
104
400-800
28*3.5*4.3
DSE90 processing line
132
75
800-1200
28*3.5*4.3
DSE95 processing line
165
90
1500-2000
35*3.5*4.3
DSE120 processing line
469
380
2000-2500
45*20*22
DSE135 processing line
712
570
3000-3500
50*20*25

Raw Material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.can also add fresh bone, meat, etc.


The product sample:

Equipment list in the pet food production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.
Type
Vertical and horizontal type
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel
Name

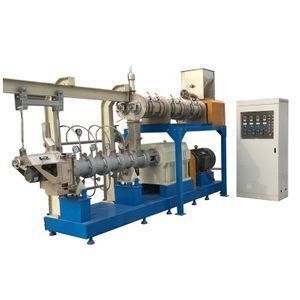

Twin screw extruder
Usage
To extrude the raw materials and make them to the required shape and size of the pet food pellets by mould
Model
DSE65, 70, 75, 90, 95, 120, 135
Motor
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity
100kg/h to 10 ton/h
Material
Screw materials 38CrMoAl
stainless steel, carbon steel

Dry type twin screw extruder for pet food

capacity from 100kg/h to 1 ton/h

Wet type twin screw extruder for pet food

capacity from 200kg/h to 10 ton/h

Name
Dryer (oven)
Usage
the expanded food go through the "s" passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Model
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel

Electrical heating dryer

Gas or Diesel fired heating dryer


Name
Flavoring machine
Usage
To mix the oil and flavors on the surface of the pet food
Type
single and double flavoring drum
Motor
0.75kw
Capacity
100kg/h to 10 ton/h
Material
stainless steel
Name
Packaging machine
Usage
To pack the pet food with required weight
Type
Automatic
Flowing Process
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material
stainless steel, carbon steel
Our advantages
Our Company
Our Service

1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
    how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
   how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.

FAQ

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

Packing & Delivery

 Packing and delivery

 •  Inside package is plastic film, outside is wooden or plywood case(based on the customers'

     need).

 •  Only plastic film nude packing with wooden pallet.

 •  We can supply fumigation package and certificate.

 •  Shipping, train, express or upon clients' demands.
