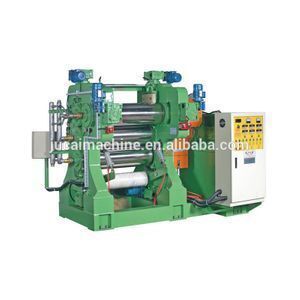

XY-4 450*1200 Three roll fiber rubber Calender machine for rubber/PE/PE

Supplier: Qingdao Jiuzhou Jucai Machine Co., Ltd.
Region: Shandong, China
Contact: Mr edward cheng
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Voltage:	As your local need;
After-sales Service Provided:	Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;	Brand Name:	Jucai;
transmisson system:	roller ball bearing;	Certification:	ISO SGS CE;
Dimension(LWH):	630015002440mm;	Single gross weight:	68 KG;
Key Selling Points:	Multifunctional;	After-sales Service Provided:	Engineers available to service machinery overseas;
roller:	cold hard cast iron;	gearbox:	hardened teeth gearbox;
Selling Units:	Single item;	Applicable Industries:	Manufacturing Plant;
Single package size:	10X10X10 cm;	Power(W):	55 kw;
Weight:	about 18 T;	Type:	Rubber Calender;
Place of Origin:	Shandong China;	Package Type:	machine will be in container in bulk;
Warranty:	Within one year;	control:	automatic control;

Product Description

Product Application

rubber calender is used for rubber (plastic)calendering , precisely sheeting ,textile fabric fractioning ,double side coating , sheet laminating and so on

Main Features

1) The bedplate is whole model, installation convenience.

2) Rollers are made of chilled cast alloy iron, the working surface of roller is hardness and smoothly. steam and cooling water can pass through inner of the rollers so that surface temperature can be adjustable.

3) Adopt roll bearing, high precision, long service life, axes pathway is no abrasion.

4) Full range of bending deflections is optional including middle height, inflection and axis crossing.

5) Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel. Roller space can be adjusted manually or by electric motor.

6) Roller arrangement can be "I" type, "F" type, "Z" type, "L" type and "invert L" type.

7) The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

8) Perfect emergency stop device can ensure the safety of person and equipment.

We may design and produce it as per customers' requirements, equip various accessories, composing combined product line. Below is the main parameters:

Model	XY-230*630	XY-252*720	XY-360*1120
roller diameter	230	252	360
roller working length	630	720	1120
roller ratio	1:1:1/1:1.2:1	1:1:1	1:1:1
middle roll linear speed	0.8-8 M/MIN	2-15.9	3-20
Adjusting nip range	0-7	0-10	0-10
Min calendering thickness	0.2MM	0.2MM	O.2MM
calender product width	500	550	920MM
motor	7.5 KW	22 KW	45KW
machine weight	about 3 t	about 5.5 t	about 14 t

Model	XY-400*1200	XY-450*1400	XY-610*1730
roller diameter	400	450	610
roller working length	1200	1400	1730
roller ratio	1:1:1	1:1:1	1:1:1
middle roll linear speed	3-26.39	2.62-26.62	5.4-54
Adjusting nip range	0-10	0-10	0-20
Min calendering thickness	0.2	0.2	0.15
calender product width	1200	1250	1500
motor	55	75	160
machine weight	about 18t	about 21 t	about 43t

Certifications

Our Service

1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer

2.supplier should send professional if required by customer

3.we will offer service for whole life of machine

Packing & Delivery

Our Company

Qingdao Goworld Rubber Machine Co .,Ltd is one of biggest rubber machine manufacturer in north part of china .

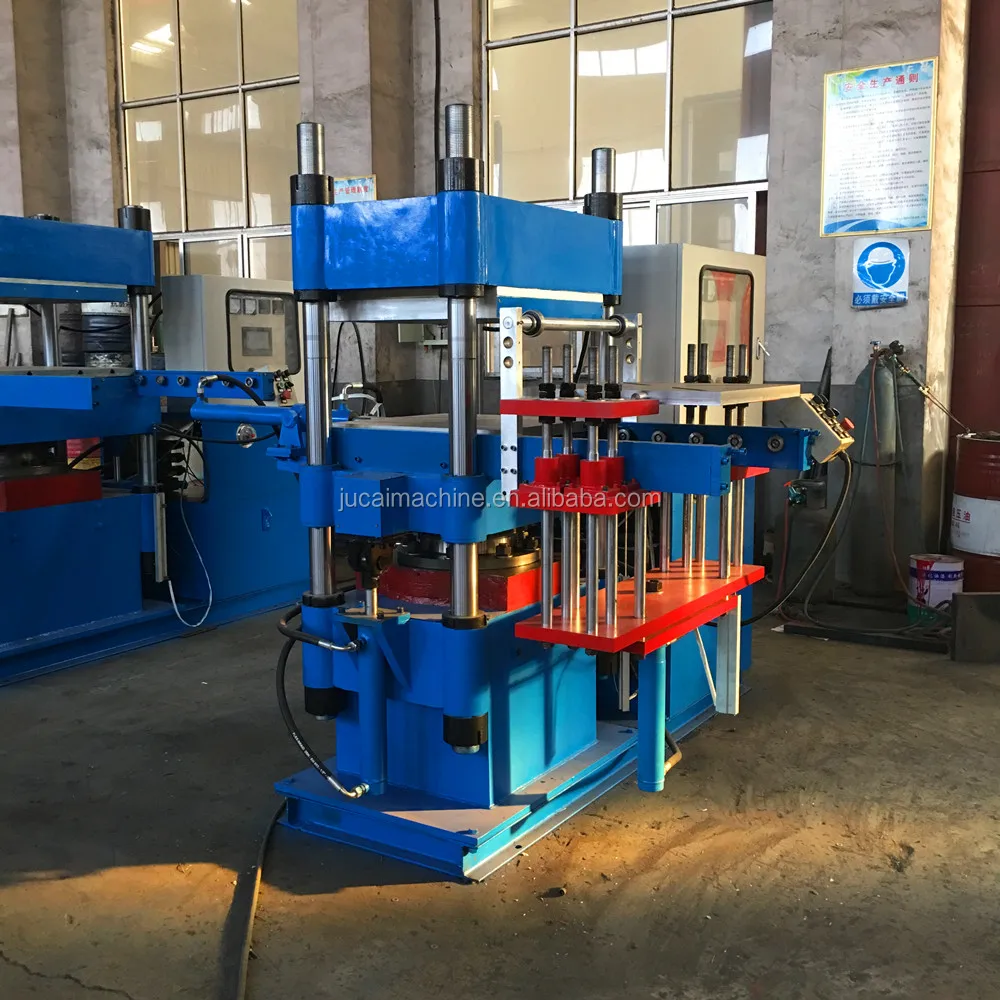

Our company mainly produce semi automatic and automatic type vulcanizing machine , rubber injection molding machine , eva foaming machine , rubber mixing machine , rubber kneader machine , tire recycling machine , etc .

Our machine has been widely exported to USA , UK ,Russian , South Korea , Japanese , India , Poland , Spanish , Iran , Mexico and many other areas

Our machine has passed ISO9001:2008 , SGS , BV and CE certificate

Welcome to inquiry and visit factory for cooperation
